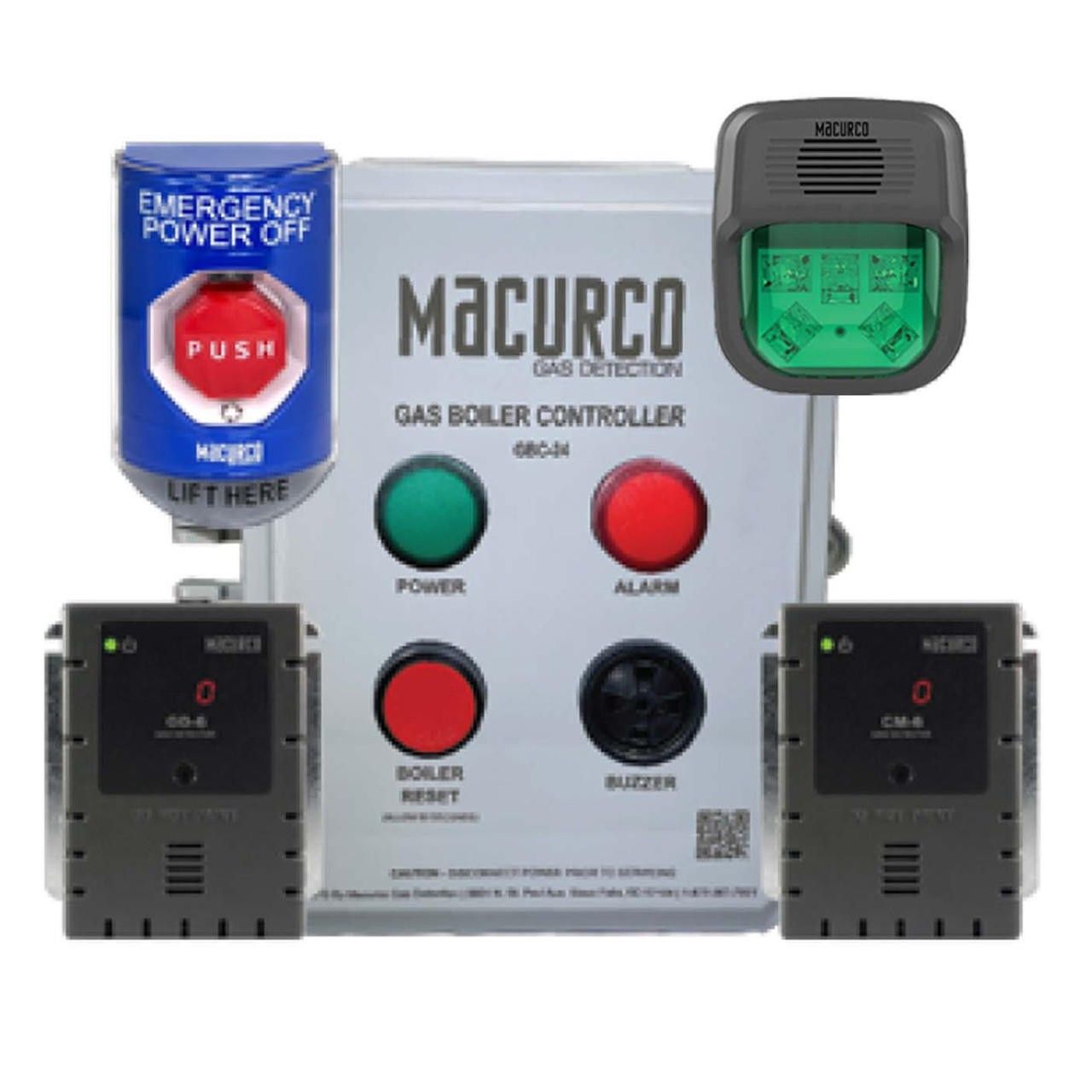

Macurco 120V-Boiler-CO-Package 120V GBC Boiler CO Package

Macurco 120V-Boiler-CO-Package 120V GBC Boiler CO Package

The Gas Boiler Controller (GBC) is engineered to provide reliable and efficient operation for gas boiler shutdowns when dangerous gases are detected. This robust controller can work with one to four gas detectors and control up to eight dry contact outputs, ensuring safety in the presence of carbon monoxide and combustible gases like natural gas or propane. With features designed for ease of use including alarm indicators and a powerful buzzer, the GBC offers significant protection for boiler systems.

Features

• Gas Boiler Controller: Ensures safe operation and automatic shutoff of boilers when dangerous gas levels are detected.
• Power Source: 120VAC, allowing for compatibility with standard electrical systems.
• 4 Relays: Control up to 8 boilers individually via expansion relays for versatile operation.
• 32 to 125 deg F Operating Temperature: Wide temperature range suitable for various operating environments.
• Ambient Humidity: 0 - 95% RH Non-Condensing, ensuring performance in diverse conditions.
• Alarm: Built-in buzzer provides immediate audio alerts for alarm conditions.
• 90 dBA at 1 ft Sound Level: Loud alarm ensures high audibility during emergencies.
• Status Indicators: Green light indicates power, red light signals an alarm condition for user awareness.
• Jumper Settings: Allows for easy customization to fit specific requirements.
• NEMA 4X/6P (IP66/68) Enclosure: Durable housing protects against environmental factors.
• Dimensions: Compact size of 9.8 x 8 x 4-1/2 in for easy installation.
• Shutdown up to 8 boilers: Individual control via expansion relays increases operational safety.
• Customize up to 8 10A SPDT Relays: Customize settings for tailored usage.
• Customize up to 4 expansion relay boards: Flexibility to expand system as needed.
• 24 VDC driver for horn/strobe: Supports additional alert systems when integrated.
• Opaque Polycarbonate, NEMA 4X/6P (IP66/68): High-quality material for maximum durability.
• Audible buzzer: Provides clear audio feedback on system status.
• Output power supports up to 4 detectors: Flexibility in installation and configurations.
