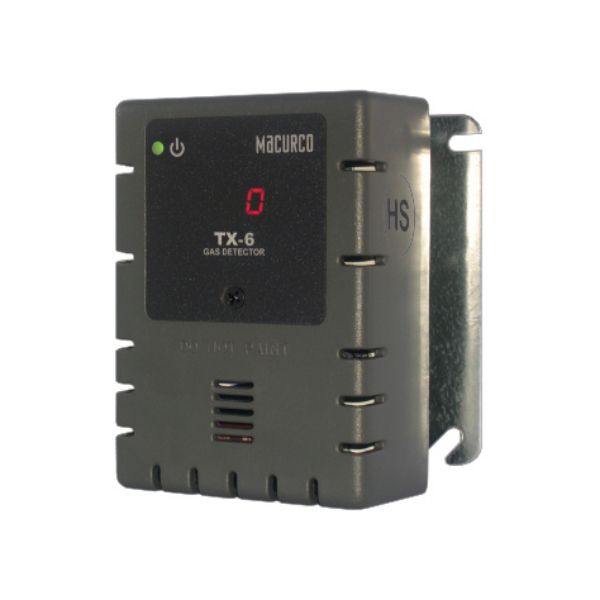

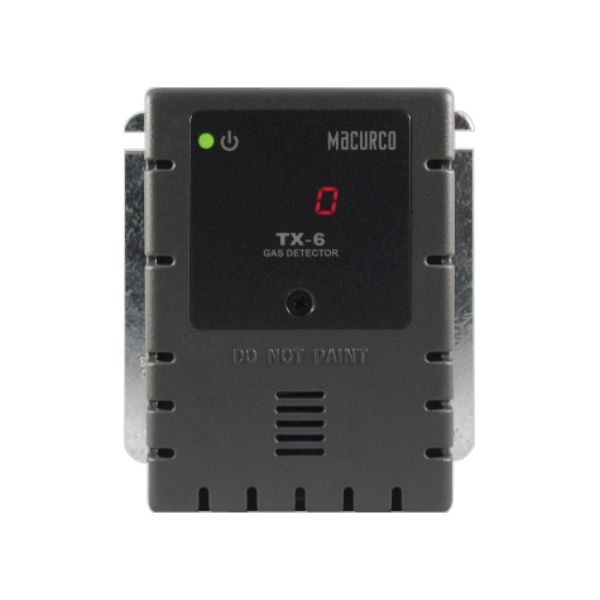

Macurco TX-6-HS Hydrogen Sulfide H2S Fixed Gas Detector Controller and Transducer

The Macurco TX-6-HS is a cutting-edge low voltage, dual relay Hydrogen Sulfide (H2S) detector, controller, and transducer. Tailored for industrial and commercial applications, this device offers selectable 4-20 mA output, an audible buzzer, and a clear digital display, providing essential feedback and automatic exhaust fan control to mitigate H2S levels in diverse environments such as refineries and waste disposal facilities. With a measurement range from 0-50 ppm, it ensures reliable detection and control of hazardous gas concentrations.

Macurco TX-6-HS Key Features

• Fan relay actuation: Selectable from 1 to 20 ppm H2S, allowing for customizable response based on specific environmental needs.
• Output: Includes Fan relay, Alarm relay, and a 4-20mA current loop, providing versatile connection options for varied systems.
• Controls: Features digital display (0-50 ppm), buzzer, fan delay, and fan minimum runtime, ensuring efficient and user-friendly operation.

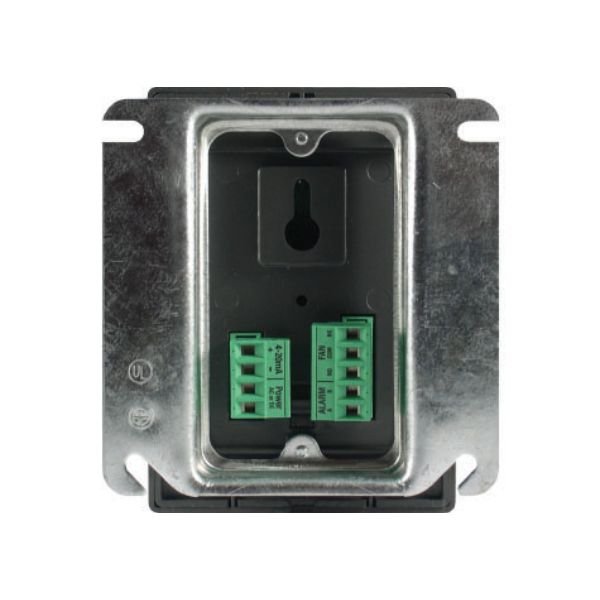

• Mounting: Designed to mount on a standard 4” x 4” electrical box for simple installation.
• 5 A SPDT fan relay: Effectively controls valves, louvers, or exhaust fans, optimizing system performance in gas reduction.
• 0.5 A N.O. or N.C alarm relay: Connects easily to warning devices or control panels for prompt alerts in case of gas detection.
• 4-20mA current loop: Fully compatible with the Macurco DVP-120 Control Panel, enhancing integration capabilities.
• Factory calibrated: Ready to use out of the box, ensuring reliable performance without additional setup.
• Supervised system design: Automatically activates fan & alarm relay upon detector issues, enhancing safety protocols.
• Optional calibration kit: Allows for field testing and calibration, ensuring continuous optimal performance.
• ETL Listed to UL 61010-1: Meets industry safety standards, providing confidence in product reliability.

Macurco TX-6-HS Detailed Specifications
