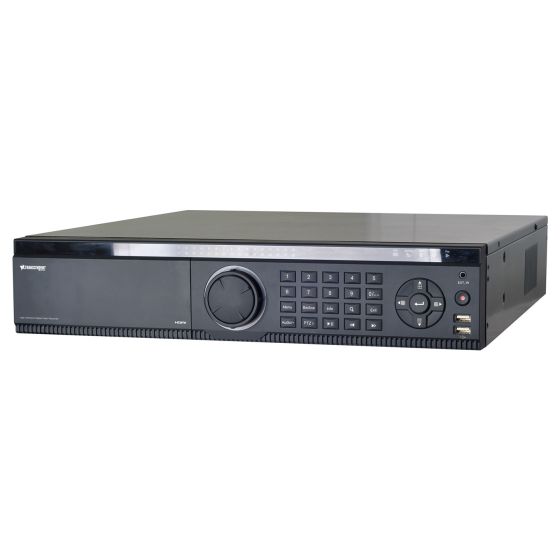

Vitek VT-TNR6480E1-42T 64 Channel 4K H.265 Real Time Network Video Recorder with Dual Ethernet Ports, 42TB
SKU
VT-TNR6480E1-42T
Model No
VT-TNR6480E1-42T
$3,977.78
Product Highlights
- 64 Channel Stand-alone Real-time IP Network Video Recorder
- Full 8 Megapixel Real-time recording (1920fps) with 1920fps playback
- 4K HDMI & VGA Video Outputs
- H.265 / H.264 Video Compression
- Plug and Play & Auto configuration for many leading ONVIF compliant IP Camera models
Speak to an expert
The VT-TNR6480E1-42T from Vitek is a state-of-the-art 4K H.265 real-time network video recorder designed for users seeking a powerful and flexible surveillance solution. With the ability to support up to 64 channels and equipped with dual ethernet ports and 42TB of storage, this device is perfect for extensive monitoring tasks. It is compatible with various IP security cameras, offering crystal-clear video quality and multiple viewing options through its user-friendly mobile applications and web interface.
Vitek VT-TNR6480E1-42T Camera Features
- 64 Channel: Stand-alone Real-time IP Network Video Recorder allowing comprehensive surveillance management.
- 8 Megapixel Recording: Full HD 1920fps recording capability ensures high-quality video capture.
- 4K Outputs: HDMI & VGA video outputs provide versatility in video display options.
- Advanced Compression: H.265 / H.264 video compression allows for efficient storage without compromising quality.
- Easy Setup: Plug and Play with auto-configuration for many ONVIF compliant IP Camera models simplifies installation.
- Dual Gigabit LAN: Two Ethernet ports enhance network connectivity and reliability.
- Pentaplex Functionality: Simultaneous Live Display, Record, Playback, Backup, and Remote Access improve operational efficiency.
- Alarm Integration: 16 local alarm inputs and 4 outputs facilitate responsive security management.
- PTZ Control: RS485 & Network-based control for PTZ cameras expands monitoring capabilities.
- Massive Storage: 8 internal SATA2/SATA3 HDD slots support up to 80TB of internal storage (8 x 10TB HDD).
- Mobile Apps: Applications available for iOS® & Android® streamline remote access.
- Remote Viewing: Supports web browser or LAN remote viewing for convenience.
- CMS Compatibility: Mac OS® Client & CMS Central Management Software included for comprehensive management.
- IP Address Support: Supports both dynamic and static IP addresses for flexible networking.
- Web Configuration: Web-based remote configuration simplifies management from anywhere.
- Multiple Control Options: Local control via Front Panel, USB Mouse, or IR Remote enhances user experience.
- Durable Design: Heavy-duty rack ears included for secure installation.
Vitek VT-TNR6480E1-42T Specifications
| Model | VT-TNR6480E1-42T |
| Channels | 64 Channel |
| Recording Resolution | Up to 8 Megapixels |
| Recording Speed | 1920fps |
| Video Compression | H.265 / H.264 |
| Video Outputs | 4K HDMI & VGA |
| Storage Capacity | Up to 80TB (via 8 SATA HDD) |
| Alarm Inputs/Outputs | 16 Inputs / 4 Outputs |
| LAN Ports | Dual Gigabit |
| Remote Access | Web Browser, iOS®, Android® apps |
| Dimensions | 3U Rack-Mountable |
| Weight | Approx. 12 lbs |
| Power Supply | AC 100-240V |
SKU  | VT-TNR6480E1-42T |
|---|---|
| Manufacturer | Vitek |
| IP Channels | 64 Channels |
| Harddrive Size | 42TB |
| Protocols | Onvif Protocols, Vitek Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HDMI Output (720p/1080p), Remote I/O Control, Supports PTZ Control, Two-way Audio |
Resolution  | 64 IP Channels up to 8 MegaPixel |
| Compression | H.265 / H.264 |
| Bandwidth | 320Mbps Incoming / 320Mbps Outgoing |
| Operating temperature | 32°~122°F |
| Dimensions | 16.93” x 3.54” x 17.72” (430 x 90 x 450mm) |
| Voltage | AC 110/220V (ATX 250W) |
| Network | RJ45 x 2 |
| SATA | SATA x 8, max to 10TB each |
| USB | USB 2.0 x 1 + USB 3.0 x 1 (for mouse and USB backup device) |
| Audio | IN: RCA x 1CH / OUT: RCA x 1CH |
| Compression Supported | Yes |
| Alarm Notification by E-mail | Yes |
| DDNS Functionality | Yes |
| HDMI Output (720p/1080p) | Yes |
| Remote I/O Control | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
