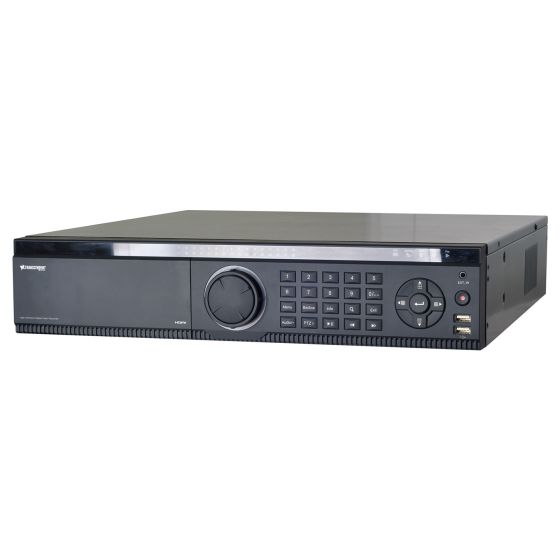

Vitek VT-TNR6480E1-24T 64 Channel 4K H.265 Real Time Network Video Recorder with Dual Ethernet Ports, 24TB
SKU
VT-TNR6480E1-24T
Model No
VT-TNR6480E1-24T
$2,400.00
Product Highlights
- 64 Channel Stand-alone Real-time IP Network Video Recorder
- Full 8 Megapixel Real-time recording (1920fps) with 1920fps playback
- 4K HDMI & VGA Video Outputs
- H.265 / H.264 Video Compression
- Plug and Play & Auto configuration for many leading ONVIF compliant IP Camera models
Speak to an expert
The VT-TNR6480E1-24T from Vitek is an advanced 64 channel 4K H.265 real-time network video recorder equipped with dual Ethernet ports and an impressive 24TB of storage. This model from the Transcendent Series offers a seamless combination of user-friendly operation and professional-grade features, making it ideal for both residential and commercial surveillance needs. With support for high-definition IP security cameras up to 8 Megapixels, it ensures excellent image quality while allowing multiple viewing options through various platforms, including intuitive mobile applications.
Vitek VT-TNR6480E1-24T Camera Features
- 64 Channel: Stand-alone real-time IP network video recorder that can accommodate multiple cameras simultaneously, providing comprehensive surveillance coverage.
- 8 Megapixel Recording: Achieve full 8MP real-time recording (1920fps) with matching playback for detailed footage review.
- 4K HDMI & VGA Outputs: Enjoy high-quality video display options for monitoring on multiple screens.
- H.265 / H.264 Compression: Efficient video compression technology reduces bandwidth and storage requirements while maintaining video quality.
- Plug and Play Setup: Easy installation with auto configuration for many leading ONVIF compliant IP camera models, saving time on setup.
- Dual Gigabit LAN Ports: Enhanced network connectivity allowing for redundancy and increased data throughput.
- Pentaplex Functionality: Simultaneously display, record, playback, backup, and provide remote access to the system for versatile operation.
- Alarm Inputs/Outputs: Featuring 16 local alarm inputs and 4 alarm outputs, enabling integration with external security systems.
- PTZ Control: Supports RS485 & network-based PTZ (Pan-Tilt-Zoom) control for precise camera adjustments.
- Expandable Storage: 8 internal SATA2/SATA3 HDD slots supporting up to 80TB (8 x 10TB HDD) for extensive video storage capacity.
- Mobile Applications: Accessible applications for iOS® & Android® ensure surveillance monitoring on-the-go.
- Remote Internet Viewing: Allows remote access to video feeds via web browsers or LAN, enhancing surveillance flexibility.
- CMS Software Included: Comprehensive Mac OS® client & CMS Central Management Software facilitates centralized monitoring and management.
- IP Address Support: Compatible with both dynamic and static IP addresses for versatile network integration.
- Web Configuration: Convenient web-based remote configuration options streamline system setup and adjustments.
- Multiple Control Options: Operate the device locally via front panel controls, USB mouse, or the included IR remote control for user convenience.
- Heavy Duty Rack Ears: Included for secure installation in a rack setup, ensuring stability and reliability.
Vitek VT-TNR6480E1-24T Detailed Specifications
| Model | VT-TNR6480E1-24T |
| Channels | 64 |
| Recording Resolution | Up to 8 Megapixels |
| Storage Capacity | 24TB Internal Storage |
| Compression Formats | H.265 / H.264 |
| Video Outputs | 4K HDMI & VGA |
| Network Ports | Dual Gigabit LAN Ports |
| Alarm Inputs/Outputs | 16 Inputs / 4 Outputs |
| Internal HDD Slots | 8 SATA2/SATA3 |
| Dimensions | Standard Rack Mount Size |
| Power Supply | Standard AC Input |
| Warranty | Manufacturer’s Warranty Included |
SKU  | VT-TNR6480E1-24T |
|---|---|
| Manufacturer | Vitek |
| IP Channels | 64 Channels |
| Harddrive Size | 24TB |
| Protocols | Onvif Protocols, Vitek Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HDMI Output (720p/1080p), Remote I/O Control, Supports PTZ Control, Two-way Audio |
Resolution  | 64 IP Channels up to 8 MegaPixel |
| Compression | H.265 / H.264 |
| Bandwidth | 320Mbps Incoming / 320Mbps Outgoing |
| Operating temperature | 32°~122°F |
| Dimensions | 16.93” x 3.54” x 17.72” (430 x 90 x 450mm) |
| Voltage | AC 110/220V (ATX 250W) |
| Network | RJ45 x 2 |
| SATA | SATA x 8, max to 10TB each |
| USB | USB 2.0 x 1 + USB 3.0 x 1 (for mouse and USB backup device) |
| Audio | IN: RCA x 1CH / OUT: RCA x 1CH |
| Compression Supported | Yes |
| Alarm Notification by E-mail | Yes |
| DDNS Functionality | Yes |
| HDMI Output (720p/1080p) | Yes |
| Remote I/O Control | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
