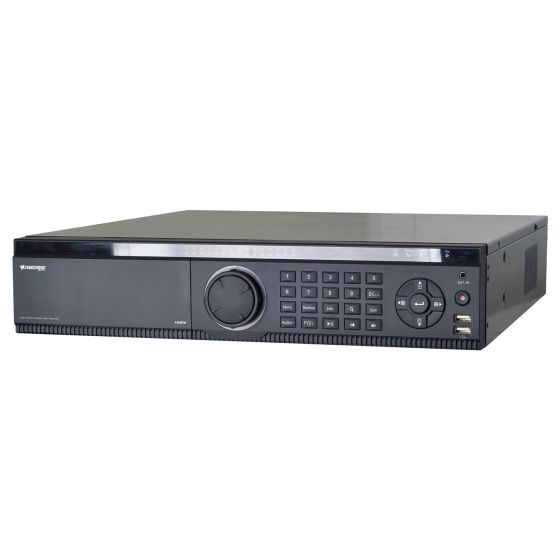

Vitek VT-TNR6480E1-28T 64 Channel 4K H.265 Real Time Network Video Recorder with Dual Ethernet Ports, 28TB
SKU
VT-TNR6480E1-28T
Model No
VT-TNR6480E1-28T
$2,888.89
Product Highlights
- 64 Channel Stand-alone Real-time IP Network Video Recorder
- Full 8 Megapixel Real-time recording (1920fps) with 1920fps playback
- 4K HDMI & VGA Video Outputs
- H.265 / H.264 Video Compression
- Plug and Play & Auto configuration for many leading ONVIF compliant IP Camera models
Speak to an expert
The VT-TNR6480E1-28T from Vitek is a powerful 64 channel 4K H.265 real-time network video recorder equipped with dual ethernet ports and an impressive 28TB of storage. Designed for seamless integration with High Definition IP security cameras, this NVR offers easy installation and advanced monitoring features, making it ideal for both professional and personal surveillance needs.
Vitek VT-TNR6480E1-28T Camera Features
- 64 Channel: Supports up to 64 IP camera connections for expansive surveillance coverage.
- Full 8 Megapixel Real-time Recording: Records at 1920fps, ensuring high-quality video capture and playback.
- 4K Video Outputs: Offers HDMI & VGA outputs for connecting to high-definition displays.
- Efficient Video Compression: Utilizes H.265 / H.264 for reduced bandwidth and storage usage without sacrificing video quality.
- Plug and Play Configuration: Simplifies setup with auto configuration for many ONVIF-compliant camera models.
- Dual Gigabit LAN Ports: Allows for reliable network connections and bandwidth management.
- Pentaplex Functionality: Facilitates simultaneous live display, recording, playback, backup, and remote access.
- Alarm Integration: Features 16 local alarm inputs and 4 outputs for enhanced security integration.
- PTZ Control: Supports RS485 & network-based PTZ control for versatile camera movement.
- Expansive Storage Options: Accommodates up to 80TB of internal storage through 8 SATA2/SATA3 HDD slots.
- Mobile Applications: Offers dedicated apps for iOS® and Android® for remote monitoring on-the-go.
- Remote Viewing: Access your cameras over the internet via web browser or LAN for convenient management.
- Cross-platform Compatibility: Includes Mac OS® Client and CMS Central Management Software for flexible user access.
- Network Configuration Support: Compatible with both dynamic and static IP addresses, enhancing connection options.
- Web-based Access: Provides remote configuration capabilities through a web interface.
- Multiple Control Options: Control via front panel, USB mouse, or included IR remote for user convenience.
- Heavy Duty Design: Comes with rack ears for secure installation in professional environments.
Vitek VT-TNR6480E1-28T Detailed Specifications
| Model | VT-TNR6480E1-28T |
| Channel Capacity | 64 |
| Recording Resolution | 4K (8 Megapixel) |
| Recording Speed | 1920fps |
| Storage Capacity | 28TB (upgradable to 80TB) |
| Video Compression | H.265 / H.264 |
| Ethernet Ports | 2 Gigabit LAN Ports |
| Alarm Inputs/Outputs | 16 Inputs / 4 Outputs |
| PTZ Control | RS485 & Network Based |
| Operating Temperature | -10°C to 55°C |
| Power Supply | 100-240V AC |
SKU  | VT-TNR6480E1-28T |
|---|---|
| Manufacturer | Vitek |
| IP Channels | 64 Channels |
| Harddrive Size | 28TB |
| Protocols | Onvif Protocols, Vitek Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HDMI Output (720p/1080p), Remote I/O Control, Supports PTZ Control, Two-way Audio |
Resolution  | 64 IP Channels up to 8 MegaPixel |
| Compression | H.265 / H.264 |
| Bandwidth | 320Mbps Incoming / 320Mbps Outgoing |
| Operating temperature | 32°~122°F |
| Dimensions | 16.93” x 3.54” x 17.72” (430 x 90 x 450mm) |
| Voltage | AC 110/220V (ATX 250W) |
| Network | RJ45 x 2 |
| SATA | SATA x 8, max to 10TB each |
| USB | USB 2.0 x 1 + USB 3.0 x 1 (for mouse and USB backup device) |
| Audio | IN: RCA x 1CH / OUT: RCA x 1CH |
| Compression Supported | Yes |
| Alarm Notification by E-mail | Yes |
| DDNS Functionality | Yes |
| HDMI Output (720p/1080p) | Yes |
| Remote I/O Control | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
