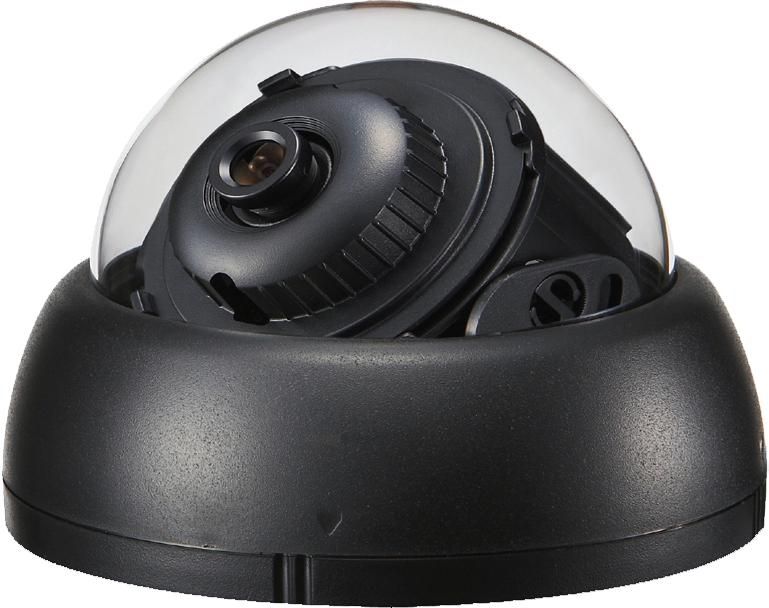

Everfocus ED710B 720TVL Indoor True Day/Night 3-Axis Mini Dome Camera, 2.8-12mm, Black
SKU
ED710B
Model No
ED710B
$116.16
Product Highlights
- Ultra resolution of over 720 horizontal TV lines for astounding image quality
- Provides 2D-Noise Reduction to improve picture clarity while enabling DVRs to improve disk storage utilization
- Full suite of OSD menu options controlled from the built-in joystick
- Compact size for discreet surveillance
- The flexible angle viewing with its 3 Axis rotation design allows wall or ceiling mounting
Speak to an expert
The ED710B from EverFocus is a high-performance 720TVL Indoor True Day/Night 3-Axis Mini Dome Camera featuring a versatile 2.8-12mm lens, designed to deliver exceptional image quality and adaptability for both residential and commercial surveillance needs.
Everfocus ED710B Camera Features
- Ultra Resolution: Over 720 horizontal TV lines for astounding image quality, ensuring clarity in every detail.
- Exview HAD II Sensor: Delivers ultra high sensitivity of .05 lux, providing excellent low-light performance without ghosting.
- Varifocal Lens: The 2.8-12mm lens with external zoom and focus controls captures the desired field of view with precision.
- Digital Wide Dynamic Range: Adaptive Tone Curve Reproduction (ATR) allows for well-exposed images in challenging lighting conditions.
- 2D-Noise Reduction: Enhances picture clarity and optimizes DVR disk storage utilization for efficient recording.
- OSD Menu Options: A full suite of controls accessible via a built-in joystick for easy configuration and adjustment.
- Compact Size: Designed for discreet surveillance, making it ideal for various indoor environments.
- Flexible Mounting: Features a 3 Axis rotation design that allows for versatile wall or ceiling mounting solutions.
Everfocus ED710B Detailed Specifications
| Feature | Details |
|---|---|
| Model | ED710B |
| Video Standard | 720TVL |
| Lens Type | Varifocal 2.8-12mm |
| Sensor Type | Exview HAD II |
| Low Light Sensitivity | 0.05 lux |
| Dynamic Range | Digital Wide Dynamic Range |
| Noise Reduction | 2D-Noise Reduction |
| Mounting Options | Wall or Ceiling |
| Control Interface | Built-in joystick |
| Dimensions | Compact design for discreet placement |
SKU  | ED710B |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | EverFocus |
Camera Signal  | Analog |
| Resolution | 720 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | 1/60s~1/100,000s |
| Gamma Correction | 0.45 |
| Image Device | 1/3” Sony Exview HAD II 960H High Sensitivity Interline CCD |
| Image Pixels-Effective | NTSC: 976 x 494, PAL: 976 x 582 |
| Minimum Scene Illumination | 0.05 Lux/F=1.0 |
| Operating Humidity | Less than 80% |
| Operating Temperature | 14°F~122°F( -10°C~50°C) |
| Dimensions (W x H) | 5.37 x 3.75" (100mm x 95.3mm) |
| OSD Menu | English, Spanish, Portuguese, German, Russian, Japanese, Chinese, French |
| Power Consumption | 12 VDC: 2.16 W max / 24 VAC: 2.9 W max |
| Privacy Zone | Off/On for 4 selectable zones |
| S/N Ratio | Over 50dB (AGC off) |
| Scanning System | 2:1 Interlace |
| Signal System | NTSC , PAL |
| Video Output | BNC 1.0Vp-p 75? |
| Synchronization | Internal (plus Anti-Chroma Crawl White Balance option) |
| Digital Noise Reduction | On/OFF |
| Mirror | On/OFF |
| Backlight Compensation | Off / BLC / HSBLC selectable |
| Automatic White Balance | ATW / one push / user2 / anti-crawl / manual / push lock |
| Auto Gain Control | Low light auto, bright light auto, and manual selectable |
| Motion Detection | Off / On for 4 selectable zones (on screen indication on alarm) |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
