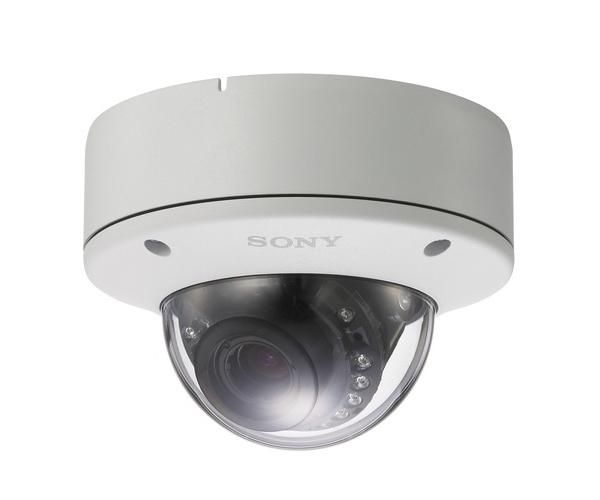

Sony SSC-CM564R Outdoor Analog Minidome Camera with 2.8-10.5mm Varifocal Lens
SKU
ssc-cm564r
Model No
SSC-CM564R
$245.07
Product Highlights
- High Resolution 700TVL
- IP-66 Rated
- Built In IR
- 960H EXview HAD CCD II for high resolution and sensitivity
- Day/Night (Removable IR Cut Filter) function for improved visibility
Speak to an expert
The SSC-CM564R from Sony is an outdoor analog minidome camera featuring a robust 2.8-10.5mm varifocal lens, designed to deliver high-quality images in various environmental conditions. This camera excels in resolution and sensitivity, ensuring exceptional performance day and night.
Sony SSC-CM564R Camera Features
- High-Resolution: 700TVL for sharp, clear images that capture fine details.
- Weatherproof Design: IP-66 rated for reliable outdoor performance, protecting the camera against dust and water.
- Built-In IR: Night vision capabilities allow for clear footage even in complete darkness.
- 960H EXview HAD CCD II: A premium sensor that enhances light sensitivity for improved image quality.
- Day/Night Function: Removable IR Cut Filter adjusts automatically for optimal visibility in varying light conditions.
- Flexible Power Options: AC24/DC12 dual power supply for versatile installation options.
Sony SSC-CM564R Detailed Specifications
| Model | SSC-CM564R |
| Type | Outdoor Minidome Camera |
| Lens Type | Varifocal 2.8-10.5mm |
| Resolution | 700TVL |
| IP Rating | IP-66 |
| Sensor Type | 960H EXview HAD CCD II |
| IR Capability | Yes, built-in |
| Day/Night Functionality | Yes, with Removable IR Cut Filter |
| Power Supply | AC24/DC12 dual power supply |
SKU  | ssc-cm564r |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Weather Resistant |
| Manufacturer | Sony |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/3" CCD |
| Lens Size | 2.8-10.5mm |
| Infrared Distance | 61~100 Feet |
| Durability | Indoor, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Image Device | 1/3-type EXview HAD CCD II |
| Image Pixels-Effective | 480,000 pixels (976 x 494) |
| Minimum Scene Illumination | Color: 0.06 lx, B/W: 0 lx (F1.2, 50 IRE), Color: 0.04 lx, B/W: 0 lx (F1.2, 30 IRE) |
| Operating Humidity | 20% to 80% |
| Operating Temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Dimensions (W x H) | 5 1/2 inches x 4 1/8 inches |
| Power Consumption | Max. 5.5 W |
| S/N Ratio | More than 55 dB (AGC Off) |
| Signal System | NTSC standard |
| Video Output | VBS: 1.0 Vp-p |
| Weatherproof | IP66 |
| Zoom Ratio | Optical 3.7x |
| Synchronization | Internal/AC line lock selectable |
| Digital Noise Reduction | Yes |
| Backlight Compensation | Yes (iBLC, On/Off) |
| Automatic White Balance | ATW (2000K to 10000K), ATW-PRO (2500K to 6000K) |
| Auto Gain Control | Auto (On/Off) |
| IR LEDs | 50 IR |
| Back Light Compensation | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Intelligent Infrared | Yes |
| Auto Gain Control | Yes |
