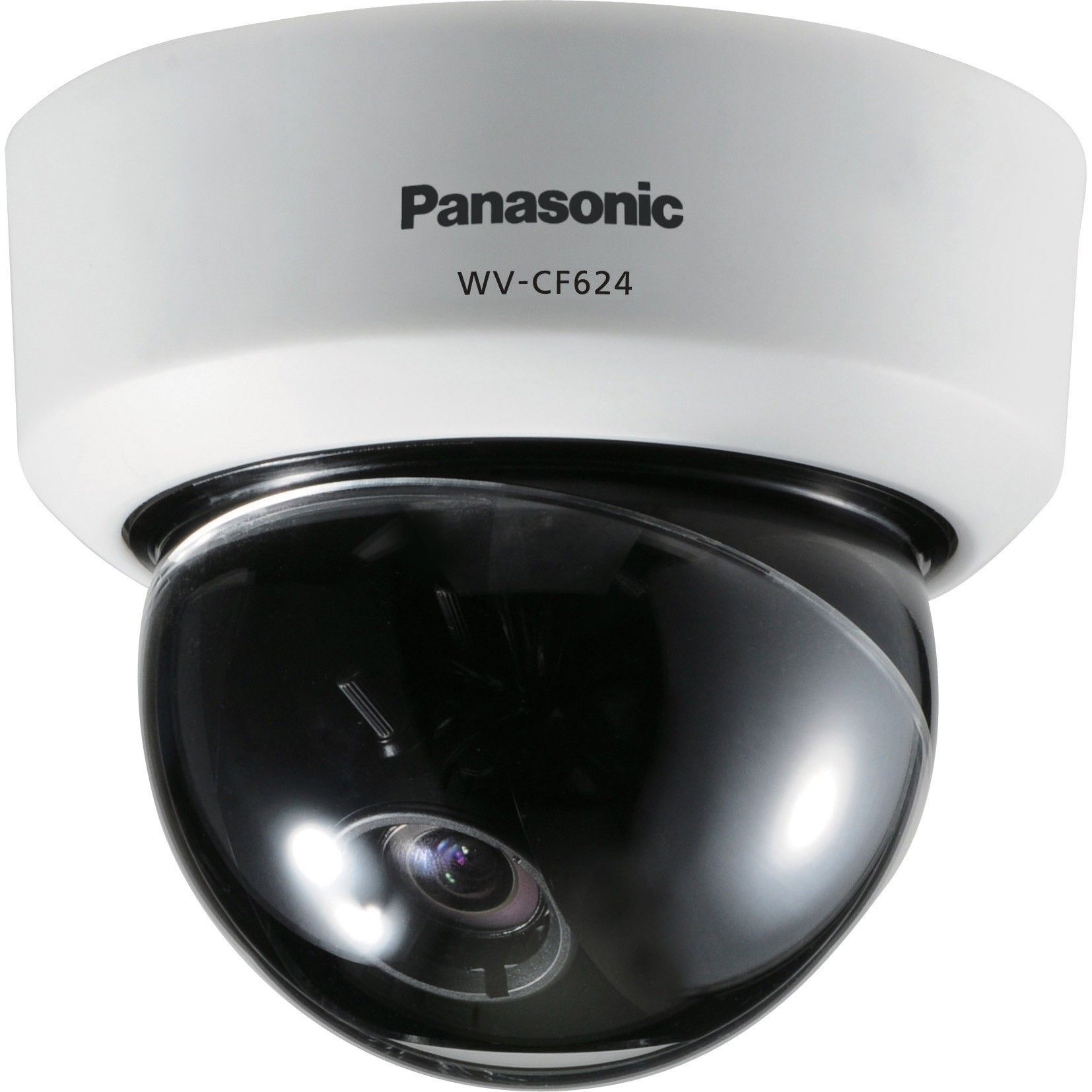

Panasonic WVCF624 650 TVL Analog Dome Camera, 2.8-10 mm Lens
SKU
WVCF624
Model No
WVCF624
$298.76
Product Highlights
- Super Dynamic 6 technology delivers 128x wider dynamic range compared to conventional cameras
- High resolution: 650 TV lines
- High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx (B/W) at F1.4. IR cut filter switches on/off to enhance the sensitivity in B/W mode
- ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area
- Various adjustment features including ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
Speak to an expert
The Panasonic WVCF624 is a high-performance day/night fixed dome camera featuring a 2.8-10 mm lens, designed for superior image quality and versatility in various lighting conditions. With cutting-edge technologies like Super Dynamic 6, this camera ensures clear visuals even in challenging environments, making it ideal for surveillance in shopping malls, hotels, and hospitals.
Panasonic WVCF624 Camera Features
- Super Dynamic 6 Technology: 128x wider dynamic range compared to traditional cameras for improved visibility in high-contrast scenes.
- High Resolution: 650 TV lines provide crystal-clear images, ensuring detailed surveillance footage.
- High Sensitivity with Day/Night Function: 0.08 lx (Color), 0.008 lx (B/W) at F1.4 enhances performance in low light conditions, ensuring visibility day and night.
- Adaptive Black Stretch (ABS): Improves dark area visibility without affecting bright areas, enhancing overall image quality.
- Advanced White Balance and Light Control: Features like ATW and ALC allow for precise adjustment under various lighting conditions.
- Varifocal Auto Iris Lens: 2.8 ~ 10 mm 3.6x lens enables flexible field of view adjustments for different surveillance needs.
- 3-Dimensional Color Conversion: Ensures natural color reproduction even under low color temperature environments.
- Adaptive Digital Noise Reduction: Combines 2D-DNR and 3D-DNR for effective noise management across various lighting conditions.
- Electronic Sensitivity Enhancement: Offers Auto (Up to 32x) and Manual (Up to 512x) for optimizing visibility.
- Versatile Electronic Shutter: Ranges from 1/100 to 1/120,000 sec for adaptability in various lighting situations.
- Digital Zoom: Up to 2x allows for closer inspection of surveillance footage.
- Auto Image Stabilizer: Integrates stabilization features to counteract vibrations from wind or movement.
- Advanced Synchronization: Internal/MVD2 synchronization enhances compatibility with existing systems.
- Coaxial Cable Communication: Enables data transmission over coaxial cables for simplified installation.
- Customizable Camera Title: 16 alphanumerics for easy identification of multiple cameras.
- Multi-Language Support: Includes English, French, Italian, Spanish, German, Russian, Chinese, Japanese for user-friendly operation.
- Wide Field of View: Horizontal: 100.8 ° and Vertical: 73.8 ° ensures comprehensive monitoring range.
- Lens Distortion Compensation: Helps maintain image clarity without distortion effects.
- On-Screen Display Menu: Simplifies camera setup and monitoring processes.
- Monitor Output and ELC Mode: Ensures easier lens adjustments during installation.
- 3-Way Hinge Design: Offers horizontal, vertical, and swivel rotation for flexible installation options.
- Elegant Aesthetic Design: Blends into various environments like shopping malls, hotels, and hospitals seamlessly.
Panasonic WVCF624 Detailed Camera Specifications
| Model | Panasonic WVCF624 |
| Image Sensor | High Sensitivity CCD |
| Effective Pixels | Not specified |
| Resolution | 650 TV Lines |
| Minimum Illumination | 0.08 lx (Color), 0.008 lx (B/W) at F1.4 |
| Lens Type | 2.8 ~ 10 mm Varifocal Auto Iris |
| Viewing Angle | Horizontal: 100.8 °, Vertical: 73.8 ° |
| Electronic Shutter | 1/100 to 1/120,000 sec |
| Dimensions | Not specified |
| Weight | Not specified |
| Power Supply | DC 12V |
SKU  | WVCF624 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, Privacy Masking |
| Manufacturer | Panasonic |
Camera Signal  | Analog |
| Resolution | 650 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Varifocal |
| Lens Size | 2.8-10mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | OFF (1/50), AUTO, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/120,000 |
| Image Device | 1/3 type interline transfer CCD |
| Image Pixels-Effective | 976 (H) x 582 (V) |
| Minimum Scene Illumination | Color : 0.08 lx(color mode)B/W : 0.008 lx (black-and-white mode) |
| Operating Humidity | 90 % or less (without condensation) |
| Operating Temperature | –10 °C ~ +50 °C {14°F to 122°F} |
| Dimensions (W x H) | ø108 x 94 mm (H) {4-1/4 inches (D) x 3-23/32 inches (H)} |
| OSD Menu | English, French, Italian, Spanish, German, Russian, Chinese, Japanese |
| Power Consumption | 12 V DC, 180 mA / 24 V AC, 50/60 Hz , 2.1 W |
| Privacy Zone | ON(1) / ON(2) / OFF |
| S/N Ratio | 52 dB (AGC: OFF) |
| Scanning Horizontal | 15.625 kHz |
| Scanning System | 2:1 interlace |
| Scanning Vertical | 50.00 Hz |
| Signal System | NTSC |
| Video Output | 1.0 V [p-p] / PAL composite 75 |
| Zoom Ratio | 3.6x |
| Synchronization | Internal (INT) |
| Digital Noise Reduction | 2D-DNR and 3D-DNR |
| Angle of View | H: 100.8° (Wide) ~ 27.6° (Tele)V: 73.8° (Wide) ~ 20.7° (Tele) |
| Automatic White Balance | AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000K), ATW2 (2,000 ~ 6,000K) |
| Auto Gain Control | ON (LOW, MID, HIGH) / OFF |
| Motion Detection | OFF / MOTION DETECTION / SCENE CHANGE |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Digital Zoom | Yes |
