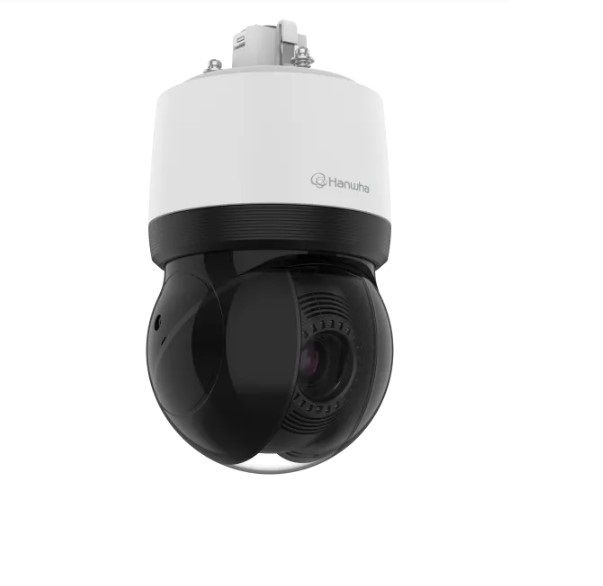

Hanwha Vision XNP-C9253R 8 Megapixel Network PTZ Camera with 25X Lens
SKU
XNP-C9253R
Model No
XNP-C9253R
$3,005.15
Product Highlights
- True D/N
- Dual SD card slots
- DIS with Built-in Gyro sensor
- HPoE (IEEE802.3bt, Class6, Type3, Injector included)
- IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
Speak to an expert
8 Megapixel Network PTZ Camera with 25X Lens
- Introducing the Hanwha Vision XNP-C9253R, an 8 Megapixel Network PTZ Camera equipped with a powerful 25X lens. This advanced camera features AI-driven object detection and auto tracking capabilities, ensuring exceptional surveillance performance. With its robust construction and cutting-edge technology, the XNP-C9253R is designed to deliver high-quality video in various conditions, making it an ideal choice for comprehensive security needs.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 4K resolution | AI-based Object Auto tracking (Person, Vehicle) , target lock tracking, Intelligent video analytics |
| 25X optical zoom 5mm ~ 125mm | Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate) , IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion) , Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box) , Object auto-tracking (Person/Vehicle) , Target lock track |
| IR viewable length: 200m (656ft) | Ture D/N |
| -20° tilt look-up capability to see above the horizon | Dual SD card slots |
| Spin dry for water removal | DIS with Built-in Gyro sensor |
| 360° endless pan | HPoE (IEEE802.3bt, Class6, Type3, Injector included) |
| Triple codec H.265/H.264/MJPEG | IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock) |
| WiseStream III technology | Optional SPM-4210 Network I/O box for alarm & audio I/O |
| Extreme WDR | Operating Temperature -40°C~+55°C (-40°F ~ +131°F) |
| Azimuth display (Cardinal & intermediate directions) | TPM 2.0 with FIPS 140-2 level 2 |
Durable PTZ Cameras for Reliable Performance
PTZ (pan-tilt-zoom) cameras make it possible to monitor large areas with a single camera, offering both wide and close-up views for the details required. Our PTZ IP cameras are designed for both indoor and outdoor applications to work in all lighting and weather conditions.
Wide area coverage- Never miss a moment with 360-degree views and wide tilt range.
Integrated IR illumination- See up to 200m in the dark with integrated IR illumination.
Low latency - Track objects easily with low latency, smooth pan, tilt and zoom controls.
Additional Hanwha Vision Products
SKU  | XNP-C9253R |
|---|---|
| Features | Audio, Auto Gain Control, Auto Tracking, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 25X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+ |
| Automatic Gain Control (AGC) | Off / Max Gain / Manual |
| Dimensions (W x H) | ø158x293.3mm(6.22x11.55") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine) |
| Image Device | 1/2.8" CMOS |
| Minimum Scene Illumination | Color: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
| Operating Humidity | +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C 0~95% RH(Non-condensing) |
| Operating Temperature | -40°C~+55°C(-40°F ~ +131°F) |
| Power Consumption | Typical 24W, Max 40W |
| Privacy Zone | 32ea, Quadrangle Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT |
| Weatherproof | IP66 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Angle of View | H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele) |
| Rotation Angle | Flip&Mirror |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, SSDR |
| Automatic White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| IR Distance | 200m (656ft) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
