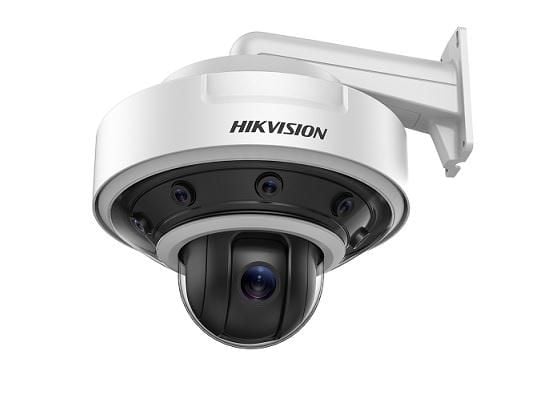

Hikvision DS-2DP1636Z-D PanoVu Series 360 Degree Panoramic + PTZ Camera
- 1/1.9" Progressive Scan CMOS
- 360° View Angle
- Up to 2 X 4096 X 1800 @ 30 fps
- 36x Optical Zoom, 16x Digital Zoom
- WDR
PanoVu Series 360 Degree Panoramic + PTZ Camera
- Hikvision PanoVu Series DS-2DP1636Z-D panoramic + PTZ cameras, with their integrated design, are able to capture panoramic images as well as close-up images to provide both panorama and details. The panoramic images are captured by eight sensors, which realize 360° panorama monitoring. The integrated design and high speed PTZ offer fast detail positioning over a wide, panoramic area. Furthermore, with its advanced video analysis and multiple targets tracking algorithm, PanoVu cameras also feature a wide range of smart functions for multiple targets within them panoramic view, including intrusion detection, line crossing detection, region entrance detection, and region exiting detection. The cameras could also output alarm signals to link the PTZ for tracking, benefitting users with great improvement on security efficiency.
Camera Functions
Auto Gain Control
Auto White Balance
Day/Night Vision
3D DNR
Digital Zoom
Heater & Fan
Motion Detection
On Screen Display Menu
Onvif
Privacy Masking
Weather Resistant
WDR
Camera Features
| 1/1.9" Progressive Scan CMOS | WDR |
| 360° View Angle | 3D Intelligent Positioning Function |
| Up to 2 x 4096 x 1800 @ 30 fps | IP66 Protection |
| 36x Optical Zoom, 16x Digital Zoom | 36 VDC, 120 W |
PanoVu Series Network Camera
When designing surveillance applications, more and greater requirements have become necessary for monitoring
large areas such as public plazas, arenas, airports, busy traffic intersections, and the like. In very large settings,
security personnel need to see more with just one camera – not just a panoramic image, but zoomed-in, detailed
views as well.
With that in mind, Hikvision designed the PanoVu Series all-in-one cameras to capture both excellent panorama
and close-up details. Panoramic images are captured with four or eight 2-Megapixel sensors, rendering 180° or 360°
panoramic monitoring with real-time ultra-HD resolution. The integrated design and high-speed pan-tilt-zoom action
grants the user swift positioning over expansive areas with the power to bring sharp details into focus. At the same
time, the PanoVu Series Cameras utilize Hikvision’s ultra-low light Darkfighter technology, making colored images
possible in poorly lit environments.
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | DS-2DP1636Z-D |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 16 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 36X |
| Mount Type | Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 36vDC |
| Dimensions (W x H) | Φ15.35" x 14.22" (Φ390 mm × 361.3 mm) |
| Image Device | 1/1.9" progressive scan CMOS |
| IR Wavelength | 1550nm |
| Minimum Scene Illumination | Color: 0.005 lux @ ƒ/1.8, AGC on, B/W: 0.0005 lux @ ƒ/1.8, AGC on |
| Operating Humidity | 90% or less |
| Operating Temperature | -40° F to 149° F (-40° C to 65° C) |
| OSD Menu | English |
| Power Consumption | Maximum 120 W (heater: 44 W) |
| Privacy Zone | 24 privacy masks programmable; optional multiple colors and mosaics |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP, DHCP, PPPoE |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal angle of view: 360°, vertical angle of view: 80° |
| Automatic White Balance | Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
DS-2DP1636Z-D-Specsheet DS-2DP1636Z-D-Quick-Start-Guide DS-2DP1636Z-D-User-Manual
