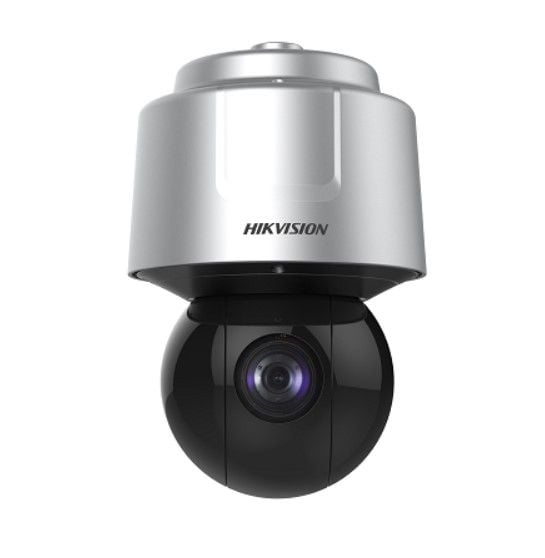

Hikvision DS-2DF6A836XS-AEL 8 Megapixel Network Speed Dome with 36X Lens
SKU
DS-2DF6A836XS-AEL
Model No
DS-2DF6A836XS-AEL
$2,787.30
Product Highlights
- 1/1.8" Progressive Scan CMOS
- Up to 3840 × 2160 resolution
- Min. Illumination: Color: 0.005 Lux @(F1.2, AGC ON),B/W: 0.0005 Lux @(F1.2, AGC ON)
- 36 × optical zoom, 16 × digital zoom
- 120dB WDR, 3D DNR, EIS, HLC
Speak to an expert
8 Megapixel Network Speed Dome Camera
- Hikvision's DS-2DF6A836XS-AEL 8 MP 36x Network Speed Dome adopts a 1/1.8" progressive scan CMOS chip. With the 36x optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition such as rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations, large venues, etc.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Digital Zoom
Mirror
Motion Detection
Onvif
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| 1/1.8" Progressive Scan CMOS | Support Rapid focus |
| Up to 3840 x 2160 resolution | IK10, IP67 |
| Min. Illumination: Color: 0.005 Lux @(F1.2, AGC ON),B/W: 0.0005 Lux @(F1.2, AGC ON) | Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| 36x optical zoom, 16x digital zoom | Support vehicle detection (license plate number, vehicle model, and vehicle color recognition) |
| 120dB WDR, 3D DNR, EIS, HLC | Person arming: supports real-time modeling and comparison, arms and tracks predefined persons |
| 24 VAC & Hi-PoE | Vehicle arming: supports vehicle detection and license plate recognition, arms and tracks predefined vehicles |
| Support H.265+/H.265 video compression |
View from Anywhere with Hik-Connect
Upgrade Your Experience with Hik Connect 5.0
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
Additional Hikvision Products
SKU  | DS-2DF6A836XS-AEL |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 8 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 36X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Dimensions (W x H) | Ø231.1 mm × 355.6 mm (Ø9.10" × 14") |
| Electronic Shutter | 1/1 s to 1/30,000 s |
| Image Device | 1/1.8" progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.005 lux @ (/1.2, AGC on), B/W: 0.0005 lux @ (/1.2, AGC on) |
| Operating Humidity | ≤95% (non-condensing) |
| Operating Temperature | -40° to 70° C (-40° to 158° F) |
| Power Consumption | 24 VAC ±25% (maximum 45 W, including maximum 6 W for heater), Hi-PoE (maximum 50 W, including maximum 6 W for heater) |
| Privacy Zone | Up to 24 masks, mosaic mask, mask color configurable, rectangle region |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| S/N Ratio | ≥55 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal field of view: 56.6° to 1.7° (wide-tele), Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele) |
| Automatic White Balance | Auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
DS-2DF6A836XS-AEL-Specsheet DS-2DF6A836XS-AEL-User-Manual DS-2DF6A836XS-AEL-Quick-Start-GuideTools & Calculators
