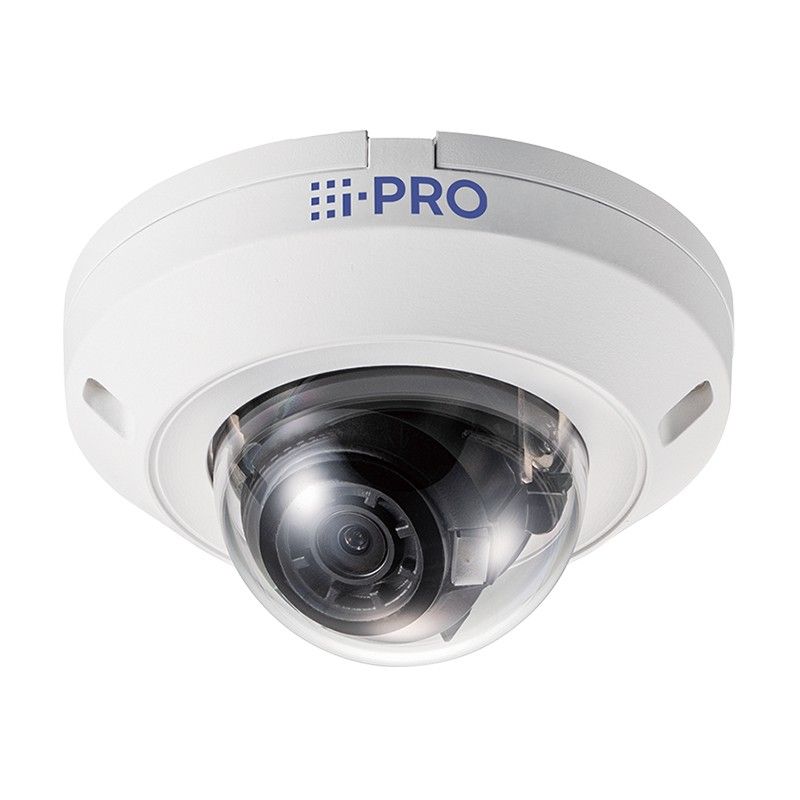

Panasonic WV-U2130LA 2 Megapixel Network IR Indoor Dome Camera with 3.2mm Lens

SKU
WV-U2130LA
Model No
WV-U2130LA
$264.82
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 2MP (1080p) 1080p up to 30fps
  • iA (intelligent Auto)
  • Super Dynamic 120dB
  • Color night vision (0.006 to 0.1 lx)
  • H.265 Smart Coding

The Panasonic WV-U2130LA is a versatile 2-megapixel network IR indoor dome camera designed to deliver exceptional quality and reliability at a competitive price. With features like a 3.2mm lens and advanced encoding options, it caters to a wide array of surveillance needs. Its compact design allows for seamless installation in various environments, making it an ideal solution for both residential and commercial applications.

Panasonic WV-U2130LA Camera Features

  • 2MP Resolution: Offers high-definition 1080p video quality up to 30fps for crisp and clear images.
  • iA (Intelligent Auto): Automatically adjusts settings to optimize image quality in changing light conditions.
  • Super Dynamic 120dB: Provides improved image quality in high-contrast scenes, reducing glare and enhancing detail.
  • Color Night Vision: Operates in low light conditions with a sensitivity of 0.006 to 0.1 lx, ensuring visibility during nighttime.
  • H.265 Smart Coding: Reduces bandwidth usage while maintaining high image quality, optimizing storage and network performance.
  • Corridor Mode: Allows image rotation of 90 degrees or 270 degrees for effective monitoring of narrow areas.
  • Built-in IR LED: Enhances night-time visibility by providing infrared illumination for clear images in darkness.

Detailed Specifications for Panasonic WV-U2130LA

Camera TypeNetwork IR Indoor Dome Camera
Resolution2 Megapixels (1080p)
Lens3.2mm
Frame RateUp to 30fps
Low Light Performance0.006 to 0.1 lx
Dynamic RangeSuper Dynamic 120dB
Video CompressionH.265 / H.264
ONVIF SupportProfile G / S / T
DimensionsCompact and slim design for easy installation
Security FeaturesPre-installed secure certificates for encryption and authentication
SKU  WV-U2130LA
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking
Manufacturer  Panasonic
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    3.2mm
Mount Type  Ceiling, Wall
Compression Method    H.264, JPEG, H.265
Durability    Indoor
Voltage  PoE
Automatic Gain Control (AGC)    Level can be set in the range of 0 to 11.
Dimensions (W x H)  109 mm x 62 mm (H) {ø4-9/32 inches x 2-7/16 inches (H)}, Dome radius 30.5 mm {1-3/16 inches}
Electronic Shutter    [30fps mode] Max. 1/10000 s to Max. 16/30 s, [25fps mode] Max. 1/10000 s to Max. 16/25 s
Image Device    Approx. 1/3 type CMOS image sensor
Operating Humidity    10 to 90 % (no condensation)
Operating Temperature    -10 °C to +50 °C (+14 °F to +122 °F)
OSD Menu    English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Power Consumption  Approx. 4.8 W
Privacy Zone    On / Off, Up to 8 zones available
Digital Noise Reduction    Level can be set in the range of 0 to 255.
Angle of View    [16 : 9 mode] Horizontal : 100°, Vertical : 54°, [ 4 : 3 mode] Horizontal : 81°, Vertical : 60°
Rotation Angle0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Motion Detection Tracking    On / Off, 4 areas available
Automatic White Balance    ATW1/ ATW2/ AWC
IR Distance  30m/98ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
ONVIF  Yes
