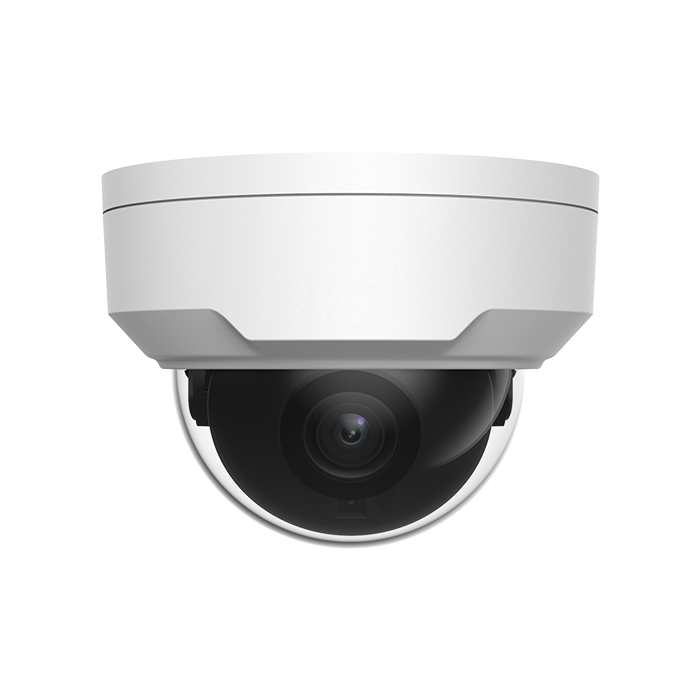

Panasonic M-46-FW 4MP WDR Network IR Outdoor Fixed Dome Camera with 2.8mm Lens
SKU
M-46-FW
Model No
M-46-FW
$234.00
Product Highlights
- 4MP IR
- True WDR 120dB
- 2.8mm lens
- H.265
- IP67, IK10 rated
Speak to an expert
The M-46-FW from Panasonic is a powerful 4MP WDR network IR outdoor fixed dome camera equipped with a 2.8mm lens. This camera delivers high-quality images and exceptional performance, making it an ideal choice for outdoor surveillance in any lighting condition.
Panasonic M-46-FW Camera Features
- 4MP IR: Provides high-resolution video for clear image quality, enhancing identification and detail recognition.
- True WDR 120dB: Offers excellent performance in varying light conditions by balancing the light and dark areas in the scene, ensuring visibility in challenging environments.
- 2.8mm lens: Delivers a wider field of view, ideal for monitoring larger areas and achieving comprehensive coverage.
- H.265: Supports advanced video compression technology, allowing for reduced bandwidth and storage requirements without sacrificing quality.
- IP67, IK10 rated: Ensures durability against harsh weather conditions and vandalism, providing reliable outdoor performance.
Detailed Specifications for Panasonic M-46-FW
| Camera Type | Outdoor Fixed Dome |
| Resolution | 4MP |
| Lens Type | 2.8mm |
| WDR | True WDR 120dB |
| Video Compression | H.265 |
| Weatherproof Rating | IP67 |
| Vandal Resistance Rating | IK10 |
SKU  | M-46-FW |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Image Device | 1/3" Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.01Lux (F2.0, AGC ON) | 0Lux with IR |
| Operating Humidity | ≤95% RH (Non-Condensing) |
| Operating Temperature | -35°C ~ 60°C (-31°F ~ 140°F |
| Power Consumption | Max 5.5W |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Weatherproof | IP67 |
| Angle of View | H: 95.8°, V: 55.2°, O: 124.5° |
| Rotation Angle | 3° ~ 360° |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
