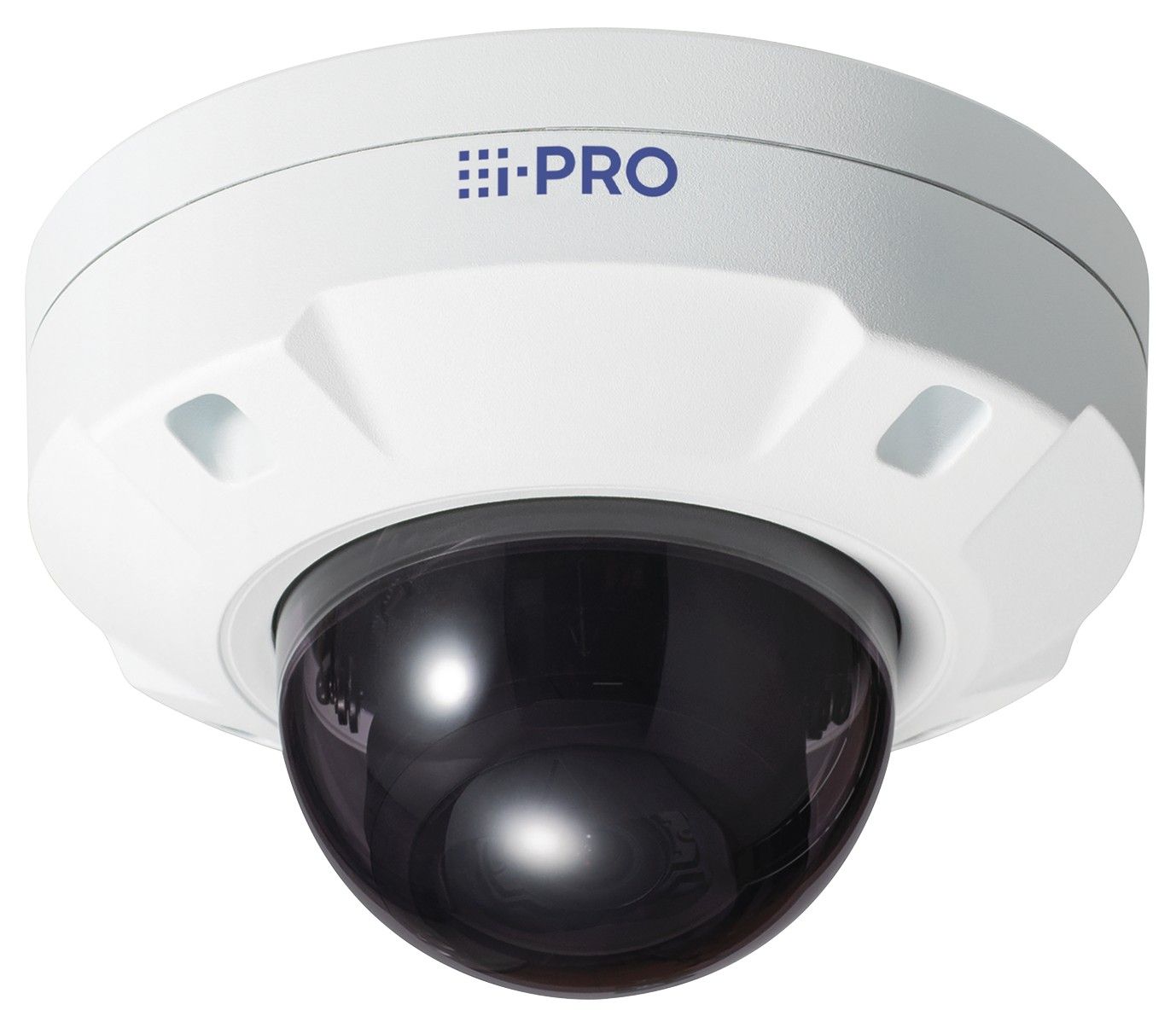

Panasonic WV-S25500-V3LG 5MP Vandal Resistant Outdoor Dome Network Camera, Smoke Dome with AI Engine with 2.9-9mm Lens
SKU
WV-S25500-V3LG
Model No
WV-S25500-V3LG
$1,146.73
Product Highlights
- 5MP
- Intelligent Auto (with AI Engine)
- Super Dynamic 132dB
- Color night vision (0.15 to 0.20 lx)
- Smart Coding (with AI Engine)
Speak to an expert
Introducing the Panasonic WV-S25500-V3LG 5MP Vandal Resistant Outdoor Dome Network Camera, designed for superior surveillance performance. Equipped with an AI engine, this camera supports simultaneous operation of three AI analytics applications to enhance detection accuracy for both people and vehicles, making it ideal for a variety of security needs. With its advanced image processing technology, the camera delivers high-quality images in low light conditions, ensuring clear visuals around the clock.
Panasonic WV-S25500-V3LG Camera Features
- 3 AI Apps operation at same time: Enhances detection accuracy by running up to three AI applications simultaneously, tailored to various surveillance scenarios.
- High image quality / High compression: Our smart coding technology provides high-resolution videos at low bit rates, ensuring quality while conserving bandwidth.
- Easy setting and installation: Facilitates quick setup with an easy kitting package and a user-friendly GUI, reducing installation time significantly.
- High security standard: Features a certified secure element and digital certificates for top-level security in surveillance operations.
Detailed Camera Specifications
| Feature | Detail |
| Resolution | 5MP |
| AI Engine | Intelligent Auto with AI capabilities |
| Dynamic Range | Super Dynamic 132dB |
| Low Light Performance | Color night vision (0.15 to 0.20 lx) |
| Smart Coding | With AI engine for optimized video management |
| IR LED | Built-in for enhanced night visibility |
| Security | Embedded FIPS 140-2 Level 3 Certified Secure Element (EdgeLock® SE050F NXP® Semiconductors) |
| Compliance | NDAA Compliant |
SKU  | WV-S25500-V3LG |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.9-9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | ø154 mm x 105 mm (H) {ø6-1/16 inches x 4-1/8 inches (H)} |
| Electronic Shutter | [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix, [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix |
| Image Device | Approx. 1/2.8 type CMOS image sensor |
| Minimum Scene Illumination | Color: 0.15 lx (30IRE, F1.3, 1/30s) *1 , Color: 0.20 lx (50IRE, F1.3, 1/30s), BW: 0.12 lx (50IRE, F1.3, 1/30s) , BW: 0 lx (50IRE, F1.3,1/30s with IR LED) |
| Operating Humidity | 10 to 100 % (no condensation) |
| Operating Temperature | -40 °C to +60 °C (-40 °F to 140 °F)*9 (Power On range: –30 °C to +60 °C {–22 °F to +140 °F}) |
| Power Consumption | DC power supply*8: DC12 V 1.0 A, Approx. 12.0 W, PoE (IEEE802.3af compliant) Device: DC48 V 240 mA, Approx. 11.5 W (Class 0 device) |
| Privacy Zone | On / Off, Up to 8 zones available |
| Weatherproof | IP66 |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Angle of View | [16: 9 mode] Horizontal: 33° (TELE) – 103° (WIDE), Vertical: 19° (TELE) – 55° (WIDE), [ 4: 3 mode] Horizontal: 33° (TELE) – 103° (WIDE), Vertical: 25° (TELE) – 75° (WIDE) |
| Motion Detection Tracking | On / Off, 4 areas available |
| Back Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto: Off) |
| Automatic White Balance | ATW1 / ATW2 / AWC |
| IR Distance | 35m/115ft} (30IRE) , 25m/82ft (50IRE) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
