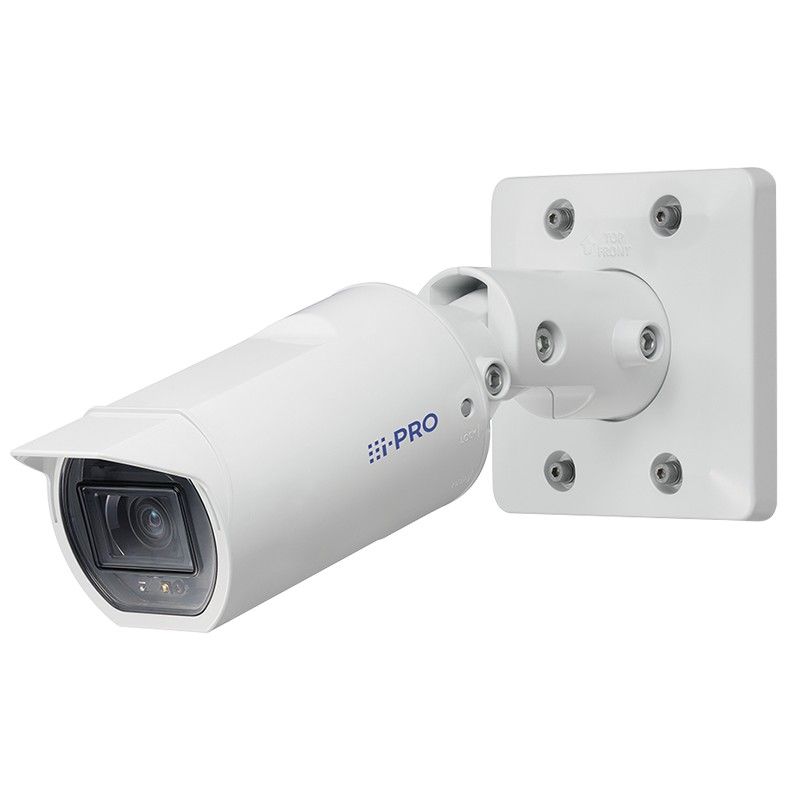

Panasonic WV-U1542LA 4 Megapixel Network IR Outdoor Bullet Camera with 2.9-7.3mm Lens

SKU
WV-U1542LA

Panasonic Model WV-U1542LA

Panasonic WV-U1542LA 4 Megapixel Network IR Outdoor Bullet Camera with 2.9-7.3mm Lens

  • 4MP
  • 2.9–7.3mm
  • Night Vision
  • Outdoor
Free shipping
Model No
WV-U1542LA
$823.50
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 5MP Sensor
  • 2688 × 1520 pixel image up to 30fps
  • 2.5x built-in motorized zoom and motorized focus lens
  • iA (intelligent Auto)
  • Super Dynamic 102dB

Overview

The WV-U1542LA from Panasonic is a 4 megapixel network IR outdoor bullet camera with a versatile 2.9-7.3mm lens. This entry model in the U series delivers high-quality imaging and robust reliability at an accessible price point. Its compact and slim design makes it ideal for versatile installation scenarios. Additionally, it supports ONVIF G/S/T profiles and H.265/H.264 compression, ensuring compatibility with a variety of VMS and recorders. Enhanced with pre-installed secure certificates, the camera offers device authentication and encryption to safeguard against advanced cyber threats.

Panasonic WV-U1542LA Camera Features

  • 5MP Sensor: Provides high-resolution images for clear surveillance, enhancing identification capabilities.
  • 2688-1520 Pixel Image up to 30fps: Delivers smooth video playback, ensuring critical moments are captured without lag.
  • 2.5x Built-in Motorized Zoom and Motorized Focus Lens: Allows for remote adjustment, adapting to varying surveillance needs without manual intervention.
  • iA (Intelligent Auto): Automatically optimizes settings based on environmental conditions for hassle-free operation.
  • Super Dynamic 102dB: Ensures excellent image quality in challenging lighting situations, enhancing visibility in both bright and dark areas.
  • Color Night Vision (0.019 to 0.3 lx): Captures vivid color images even in low light, improving night-time surveillance effectiveness.
  • H.265 Smart Coding: Reduces bandwidth usage while maintaining image quality, allowing for efficient storage and streaming.
  • Corridor Mode (90 degrees or 270 degrees in Image Rotation): Optimizes the field of view for narrow spaces, ideal for corridor or alleyway monitoring.
  • Built-in IR LED: Provides night vision capabilities, ensuring surveillance is not compromised in complete darkness.

Detailed Specifications for Panasonic WV-U1542LA

ModelWV-U1542LA
Resolution4 Megapixels
Lens2.9-7.3mm Motorized Zoom
Frame Rate30fps at 2688-1520
Dynamic RangeSuper Dynamic 102dB
Night VisionColor night vision (0.019 to 0.3 lx)
Compression FormatsH.265 / H.264
ONVIF SupportG/S/T Profiles
DimensionsCompact design for flexible installation

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Automatic White Balance
  • Back Light Compensation
  • Motion Detection Tracking
  • On Screen Display Menu
  • Privacy Masking
  • ONVIF

Specifications

SKU  WV-U1542LA
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant
Manufacturer  Panasonic
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    4 Megapixel
Lens Type    Varifocal
Lens Size    2.9-7.3mm
Mount Type  Ceiling, Wall
Compression Method    H.264, JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  PoE
Automatic Gain Control (AGC)    Level can be set in the range of 0 to 11.
Dimensions (W x H)  112.5 mm (W) x 112.5 mm (H) x 262 mm (D) {4-7/16 inches(W) x 4-7/16 inches(H) x 10-5/16 inches(D)}
Electronic Shutter    [30fps mode] Max. 1/10000 s to Max. 16/30 s, [25fps mode] Max. 1/10000 s to Max. 16/25 s
Image Device    1/2.7 type CMOS image sensor
Operating Humidity    10 to 100 % (no condensation)
Operating Temperature    -30 °C to +50 °C (-22 °F to +122 °F) {Power On range: -20 °C to +50 °C (-4°F to +122 °F)}
OSD Menu    English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Power Consumption  Approx. 7.2 W
Privacy Zone    On / Off (up to 8 zones available)
Weatherproof    IP66
Digital Noise Reduction    Level can be set in the range of 0 to 255.
Angle of View    [16 : 9 mode] *[4:3 mode] is not supported., Horizontal : 44° (TELE) – 103° (WIDE), Vertical : 25° (TELE) – 57° (WIDE)
Rotation Angle0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Motion Detection Tracking    On / Off, 4 areas available
Automatic White Balance    ATW1/ ATW2/ AWC
IR Distance  20m/65ft
