Alpha 6502-G2 Digital Video Door Panel for G2+ System
SKU
6502-G2
Model No
6502-G2
$1,494.65
Product Highlights
- BUS-out connection, 2 wires without polarity
- 2 independent relays build-in (i.e. for Door and Gate)
- Built-in Tamper Alarm
- Rugged 5mm thick Natural Anodized Aluminum faceplate
- Uses simple 2-conductor non-polarized (loop) wiring
Speak to an expert

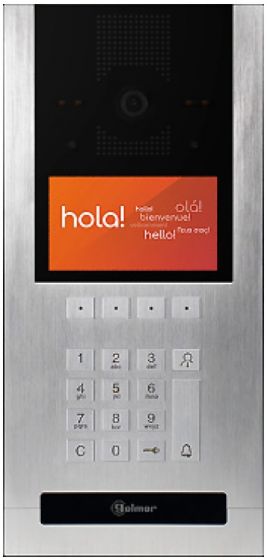

Alpha 6502-G2 Digital Video Door Panel for G2+ System
The Alpha Communications 6502/G2 Natural Anodized Aluminum Video Door Panel is designed for compatibility with the G2+ series systems, featuring a sleek Sixty5 series design. This innovative door panel boasts a panoramic 130° wide angle color camera for superior visibility, equipped with low light-enhancing white LEDs. User-friendly voice prompts, an ADA-compliant interface, and rugged weather- and vandal-resistant construction make the 6502/G2 a reliable choice for any entrance. Customized interaction with visitors is enhanced by a built-in presence sensor and TFT LCD display.
Features
- BUS-out connection: 2 wires without polarity for simple installation.
- Independent relays: Two relays built-in for controlling both Door and Gate functions.
- Tamper Alarm: Built-in feature to enhance security against unauthorized access.
- Rugged faceplate: 5mm thick Natural Anodized Aluminum for durability.
- Simplified wiring: Utilizes easy 2-conductor non-polarized (loop) wiring.
- Built-in Prox reader: Compatible with additional components to integrate access control.
- Vandal & Water resistance: IK-07 and IP65 ratings ensure protection against damage and harsh weather.
- Multi-language voice messages: Aids visually-impaired individuals with messages available in 5 different languages.
- Digital Display: Capable of displaying numbers from 001 to 999, enhancing usability.
- Inductive Loop Amplifier: Supports visitors with hearing aids for clear communication.
- Wide angle camera: 130° color camera with white LEDs for excellent low light performance.
- Camera resolution: Clear 480 x 272 pixels for detailed images.
- Automatic LED activation: Adjusts lighting for optimal visibility in low light.
- Optional Rain Hood: Available for additional weather protection in Flush or Surface mounting options.
- Programming options: Configure via keypad or web server for ease of use.
Detailed Specifications for Alpha 6502-G2
| Camera Type | Wide angle color camera (130°) |
| Camera Resolution | 480 x 272 pixels |
| Faceplate Material | Natural Anodized Aluminum, 5mm thick |
| Connectivity | BUS-out connection with 2 wires, non-polarized |
| Relay Type | 2 independent relays (for Door and Gate) |
| Weather Resistance | IP65 rated |
| Vandal Resistance | IK07 rated |
| Voice Messages | Available in 5 languages |
| Inductive Loop Amplifier | Built-in for hearing aid compatibility |
| Installation Options | Flush or Surface mounted (with optional housing) |
SKU  | 6502-G2 |
|---|---|
| Manufacturer | Alpha |
| Intercom Type | Video Intercom |
| Connection Method | Multi-Wire Digital Systems |
Weatherproof  | Outdoor |
| Material | Aluminum |
