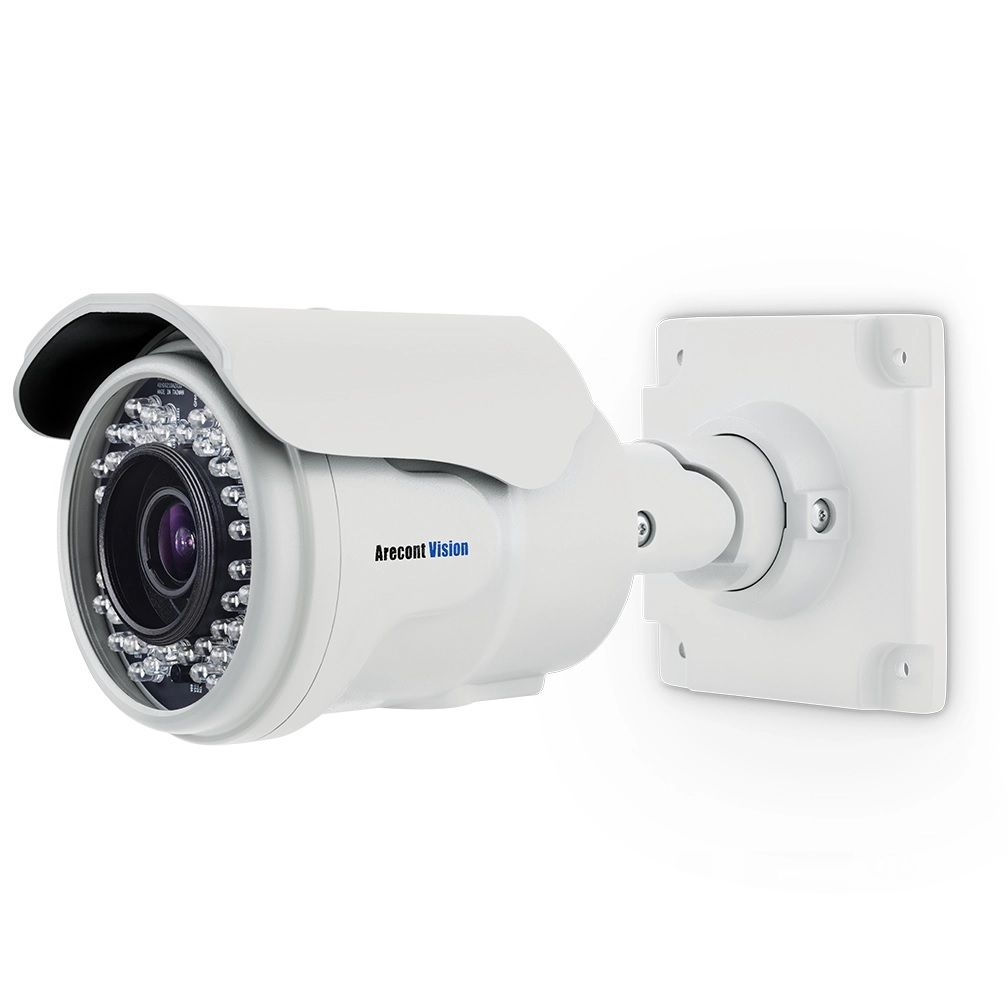

Arecont Vision AV02CLB-100 2.1 Megapixel Day/Night IR Indoor/Outdoor Bullet IP Camera, 2.7-12mm Lens
SKU
AV02CLB-100
Model No
AV02CLB-100
$228.25
Product Highlights
- 1080p (2.1MP) Resolution
- 2.7 - 12mm Integrated Lens
- SNAPstream Capability to Reduce Bandwidth without Impacting Image Quality
- NightView for Strong Low Light Performance
- True Day/Night Functionality with Mechanical IR Cut Filter
Speak to an expert
The Arecont Vision AV02CLB-100 is a cutting-edge 2.1 Megapixel Day/Night IR Indoor/Outdoor Bullet IP Camera designed for superior surveillance in diverse lighting conditions. With its advanced features like SNAPstream technology for efficient bandwidth usage, Enhanced WDR for clear imagery in varying light, and Smart IR for optimal low-light performance, this camera promises reliable performance and versatility, making it ideal for both residential and commercial applications.
Arecont Vision AV02CLB-100 Camera Features
- 1080p (2.1MP) Resolution: Achieve high-definition clarity for important details in every frame.
- 2.7–12mm Integrated Lens: Offers versatile focal lengths for precise zoom and focus control.
- SNAPstream Capability: Reduces bandwidth usage without compromising image quality, optimizing network efficiency.
- NightView: Enhances low-light performance for clear images, capturing details in darkness.
- True Day/Night Functionality: Mechanical IR cut filter allows seamless transition between day and night settings.
- Enhanced WDR: Provides up to 120dB for balanced visibility in high-contrast scenes.
- CorridorView: Supports 90° image rotation for improved surveillance in narrow spaces.
- Comprehensive Features: Includes privacy masking, motion detection, and forensic zooming for customizable security.
- On-Screen Display (OSD): Accessible UI for easy camera setup and adjustments.
- Defog Technology: Automatically improves image clarity in foggy conditions.
- Triple Encoder: Supports H.265/H.264/MJPEG for versatile video streaming options.
- Network Protocols: Compatible with various network standards for seamless integration.
- All-in-One PoE Solution: Simplifies installation with Power-over-Ethernet capabilities.
- Smart IR Illumination: Provides evenly dispersed IR light up to 100ft (30m) for consistent low-light visibility.
- Audio In / Out: Enables two-way audio communication for enhanced interaction.
- SDXC Card Slot: Supports up to 256GB of onboard storage for easy access to video footage.
- Durable Housing: IP66 rated and IK-10 impact-resistant, making it suitable for outdoor use.
- Easy Installation: 3-axis wall mount allows for flexible camera placement.
Detailed Specifications for Arecont Vision AV02CLB-100
| Camera Type | Day/Night Outdoor Bullet IP Camera |
| Resolution | 2.1 Megapixels (1080p) |
| Lens Type | 2.7-12mm Motorized P-Iris Lens |
| WDR | 120dB Enhanced Wide Dynamic Range |
| IR Illumination | Smart IR up to 100ft (30m) |
| Compression | H.265/H.264/MJPEG Triple Encoder |
| Storage | SDXC Card Slot (up to 256GB) |
| Power Supply | Power-over-Ethernet (PoE - IEEE 802.3af) |
| Outdoor Rating | IP66 Rated |
| Impact Resistance | IK-10 Rated |
| Dimensions | Compact form factor for versatile placement |
| Weight | Lightweight for easy installation |
| Compatibility | ONVIF Profile S, G, Q and T compliant |
SKU  | AV02CLB-100 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Arecont Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2.1 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MPEG-4, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Voltage | 12-48vDC, 24vAC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 4.7" H (119mm) x 4.7" W (119mm) x 9.3" D (236mm) |
| Electronic Shutter | Auto/manual 0.1ms ~ 500ms |
| Image Device | 1/2.8" CMOS Progressive Sensor |
| IR LEDs | 48 |
| Minimum Scene Illumination | Color (Day Mode): 0.05 Lux, B/W (Night Mode): 0.005 Lux |
| Operating Humidity | 0% to 90% (non-condensing) |
| Operating Temperature | -20°C (-4°F) to +50°C (122°F) |
| Power Consumption | 8.9W PoE max |
| Privacy Zone | Unlimited |
| Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure |
| Weatherproof | IP66 |
| Angle of View | H-FOV = 32°–108°, V-FOV = 18°–57° |
| Rotation Angle | 90°, 180°, and 270° image rotation |
| Motion Detection Tracking | Real-time, 1024 detection zones |
| Back Light Compensation | Auto |
| Automatic White Balance | Auto/manual |
| IR Distance | 30m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
