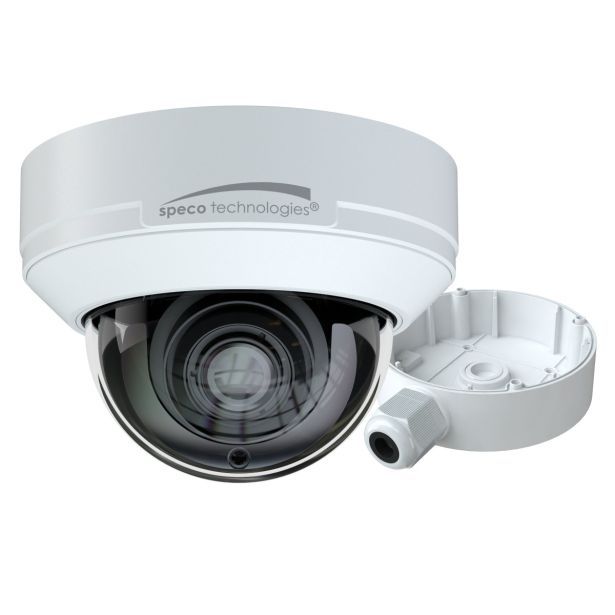

Speco VLD9M 2MP HD-TVI IR Motorized Dome Camera w/Junction Box
SKU
VLD9M
Model No
VLD9M
$158.59
Product Highlights
- Supports up to 2MP @ 30fps
- Full HD resolution over coax
- Supports HD-TVI, CVI, AHD, and 960H Analog
- IR Range: up to 98' (depending on scene reflection)
- True WDR (wide dynamic range)
Speak to an expert
The Speco VLD9M 2MP HD-TVI IR Motorized Dome Camera offers top-notch surveillance solutions with its impressive features. This camera is designed for both durability and high performance, providing clear imaging in various conditions while ensuring compliance with industry standards.
Speco VLD9M + Camera Features
Features
- Supports up to 2MP @ 30fps: Ensures high-quality video recording for detailed imagery.
- Full HD resolution over coax: Delivers superior image quality over existing coaxial infrastructure.
- Supports HD-TVI, CVI, AHD, and 960H Analog: Versatile compatibility with various video formats for enhanced integration.
- IR Range: up to 98’: Provides night vision capabilities, offering surveillance even in low light conditions.
- True WDR (wide dynamic range): Captures details in varying lighting conditions, improving visibility in challenging environments.
- 12VDC Operation: Flexible installation options, though a power supply is not included.
- IP67 compliant: Ensures reliability in harsh weather, making it suitable for outdoor use.
- IK10 compliant: Vandal-resistant construction provides additional security against tampering.
- Junction box included: Facilitates easier installation by providing necessary mounting hardware.
- 5 year warranty: Offers peace of mind with extended product support.
- NDAA Compliant: Meets government regulations for security products, ensuring quality and reliability.
Speco VLD9M + Detailed Specifications
| Camera Resolution | 2MP |
| Frame Rate | 30fps |
| Video Formats Supported | HD-TVI, CVI, AHD, 960H Analog |
| Infrared Range | Up to 98’ (depending on scene reflection) |
| WDR | True WDR |
| Operation Voltage | 12VDC |
| Weather Resistance | IP67 |
| Vandal Resistance | IK10 |
| Included Accessories | Junction box |
| Warranty | 5 years |
| Regulatory Compliance | NDAA Compliant |
SKU  | VLD9M |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Speco |
| NDAA | Compliant |
Camera Signal  | HD-TVI |
| Resolution | 2 Megapixel |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 61~100 Feet |
| Durability | Indoor, Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto |
| Image Device | 1/2.8” CMOS |
| Image Pixels Total | 1920 x 1080 |
| Image Pixels-Effective | 1920 x 1080 |
| IR Distance | 65.6ft ~ 98.4.ft |
| Minimum Scene Illumination | Color: 0.001 lux @F1.2, (AGC ON); BW: 0 lux (IR ON) |
| Operating Humidity | 10% ~ 90% RH |
| Operating Temperature | -22°F ~ 122°F |
| Dimensions (W x H) | 5.55” (Dia.) x 3.94” (L) |
| Power Consumption | IR OFF: < 1.5W; IR ON: < 5W |
| Scanning System | PAL/NTSC |
| Video Output | AHD/TVI/CVI/CVBS |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Rotation Angle | 0° ~ 345° |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
