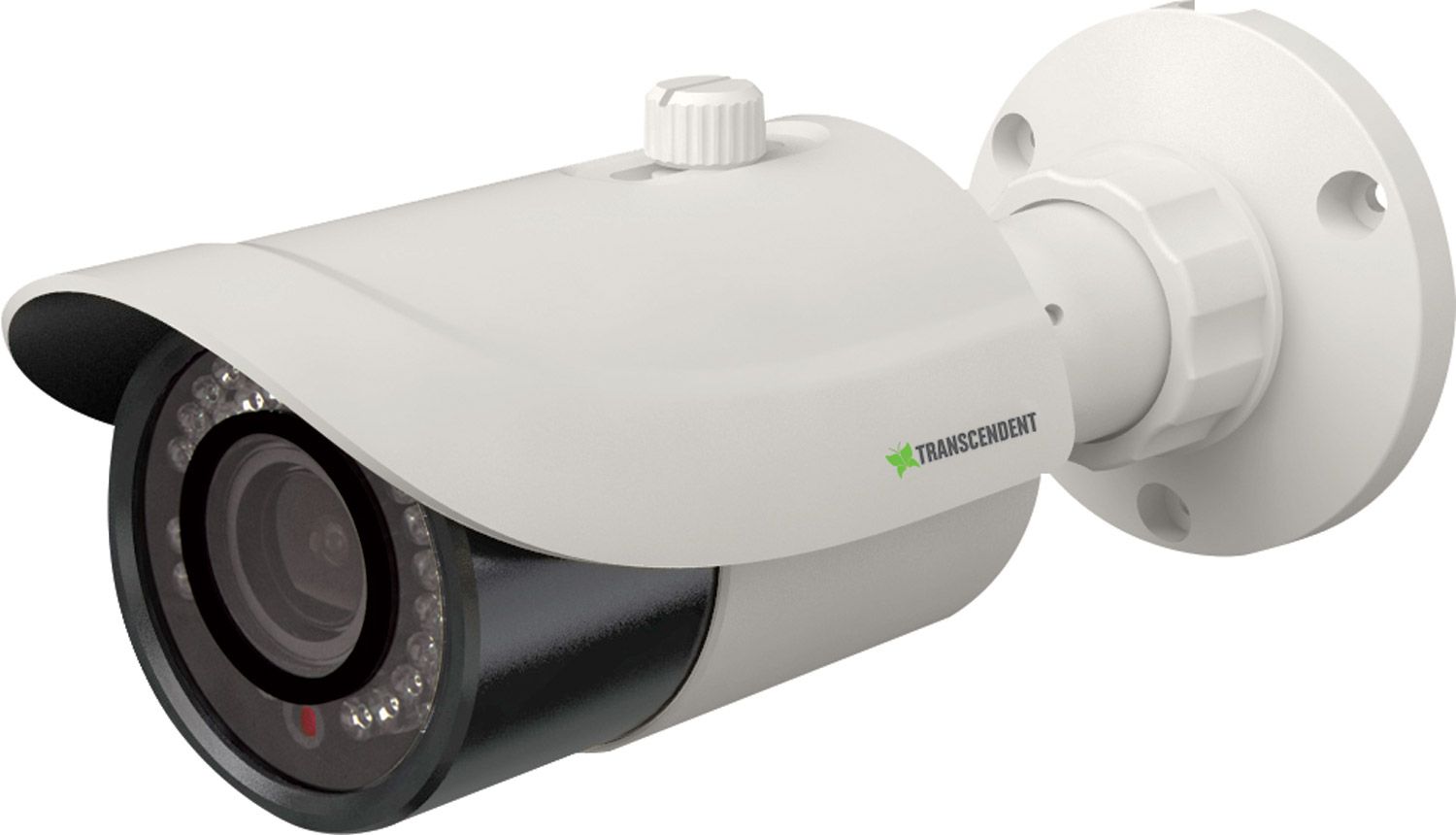

Vitek VTC-THB2RMS 1080p Indoor/Outdoor IR 4-In-1 HDA Bullet Camera, 2.8-12mm Lens
SKU
VTC-THB2RMS
Model No
VTC-THB2RMS
$115.56
Product Highlights
- 1/2.8†2.1 Megapixel Progressive Scan CMOS Sensor
- Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark & Night Scenes
- High Definition Analog (HDA): HD-TVI / AHD / CVI / CVBS (Selectable) Video Output
- 2.8-12mm Motorized Varifocal Lens
- 36 Dynamic Intensity LEDs with 120' IR Range

Speak to an expert
The VTC-THB2RMS from Vitek is a 1080p indoor/outdoor IR 4-In-1 HDA bullet camera, featuring a 2.8-12mm lens. With its Transcendent High Definition performance, this camera provides unparalleled value and functionality for security applications. Easy to install and stylishly designed, this analog HD camera utilizes existing coaxial cabling for transmission distances of up to 1500 feet, ensuring robust connectivity and image quality.
Vitek VTC-THB2RMS Camera Features
- 1/2.8” 2.1 Megapixel Progressive Scan CMOS Sensor: Ensures high-quality video capture with superior clarity and detail.
- Advanced Starlight Technology: Provides incredibly sensitive light performance, producing vibrant color images even in low-light conditions.
- High Definition Analog (HDA) Selectable Output: Offers versatile video output options (HD-TVI / AHD / CVI / CVBS), making it compatible with a variety of systems.
- 2.8-12mm Motorized Varifocal Lens: Allows for adjustable field of view, enabling precise focus on various distances.
- 36 Dynamic Intensity LEDs: Delivers an impressive 120-foot infrared range for clear night-time vision.
- True Wide Dynamic Range (WDR): Enhances image quality in high-contrast lighting environments.
- True Mechanical Day/Night Function: Features an ICR mechanism for automatic switching between day and night modes.
- 2D-DNR Noise Reduction: Reduces noise in images, ensuring clear and sharp video even in challenging conditions.
- IP66 Weather Resistance: Designed to withstand harsh outdoor environments for reliable year-round performance.
- Supports Up The COAX Control: Enables easy configuration and operation through the existing coax infrastructure.
- Over 1500’ HD Video Transmission: Ensures long-distance transmission, dependent on cable quality and specifications.
- Optional Junction Box Mount Available: Enhanced installation flexibility with optional mounting solutions (VT-TJB01).
- 12VDC Operation: Simplifies power management and integration into existing systems.
Vitek VTC-THB2RMS Detailed Camera Specifications
Camera Type | 1080p Indoor/Outdoor IR 4-In-1 HDA Bullet Camera |
Sensor | 1/2.8” 2.1 Megapixel Progressive Scan CMOS |
Lens | 2.8-12mm Motorized Varifocal Lens |
IR Range | 120 feet with 36 Dynamic Intensity LEDs |
Weather Resistance | IP66 rated |
Video Output | HD-TVI / AHD / CVI / CVBS (Selectable) |
Power Supply | 12VDC |
Transmission Distance | Over 1500 feet depending on coaxial cable characteristics |
Special Features | Starlight Technology, WDR, True Mechanical Day/Night, 2D-DNR, Up The COAX Control |
SKU ![]() | VTC-THB2RMS |
---|---|
Features ![]() | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Wide Dynamic Range |
Manufacturer ![]() | Vitek |
Camera Signal ![]() ![]() | Analog, HD-AHD, HD-CVI, HD-TVI |
Resolution ![]() ![]() | 1080p |
Sensor Option ![]() ![]() | 1/2.8" CMOS |
Lens Type ![]() ![]() | Varifocal |
Lens Size ![]() ![]() | 2.8-12mm |
Infrared Distance ![]() ![]() | 101 Feet + |
Durability ![]() ![]() | Indoor, Weather Resistant |
Mount Type ![]() | Ceiling, Wall |
Voltage ![]() | 12vDC |
Image Device ![]() ![]() | 1/2.8” 2.1 Megapixel Progressive Scan CMOS Sensor with Advanced Starlight Technology |
Image Pixels-Effective | 1920 x 1080 |
IR Distance ![]() | 36.57m/120ft |
Minimum Scene Illumination ![]() | Color: 0.001 [email protected], AGC ON / B/W: 0 lux (with IR ON) |
Operating Humidity ![]() ![]() | 10%~90% Humidity |
Operating Temperature ![]() ![]() | -4~122 / |
Dimensions (W x H) ![]() | 3.43 x 8.62” (87mm x 219mm) Dia x L |
Power Consumption ![]() | IR Off: 120mA / IR On: 480mA |
S/N Ratio ![]() | ≥52dB (AGC Off) |
Signal System ![]() ![]() | PAL/NTSC |
Video Output ![]() ![]() | HD-TVI / AHD / CVI / CVBS (Selectable) |
Weatherproof ![]() ![]() | IP66 |
Digital Noise Reduction ![]() ![]() | 2D-DNR |
Automatic White Balance ![]() ![]() | Auto (AWB) |
IR LEDs ![]() | 36 |
Back Light Compensation ![]() ![]() | Yes |
Automatic White Balance ![]() ![]() | Yes |
Day/Night ![]() ![]() | Yes |
Digital Noise Reduction ![]() ![]() | Yes |
Wide Dynamic Range ![]() ![]() | Yes |
Auto Gain Control ![]() ![]() | Yes |
