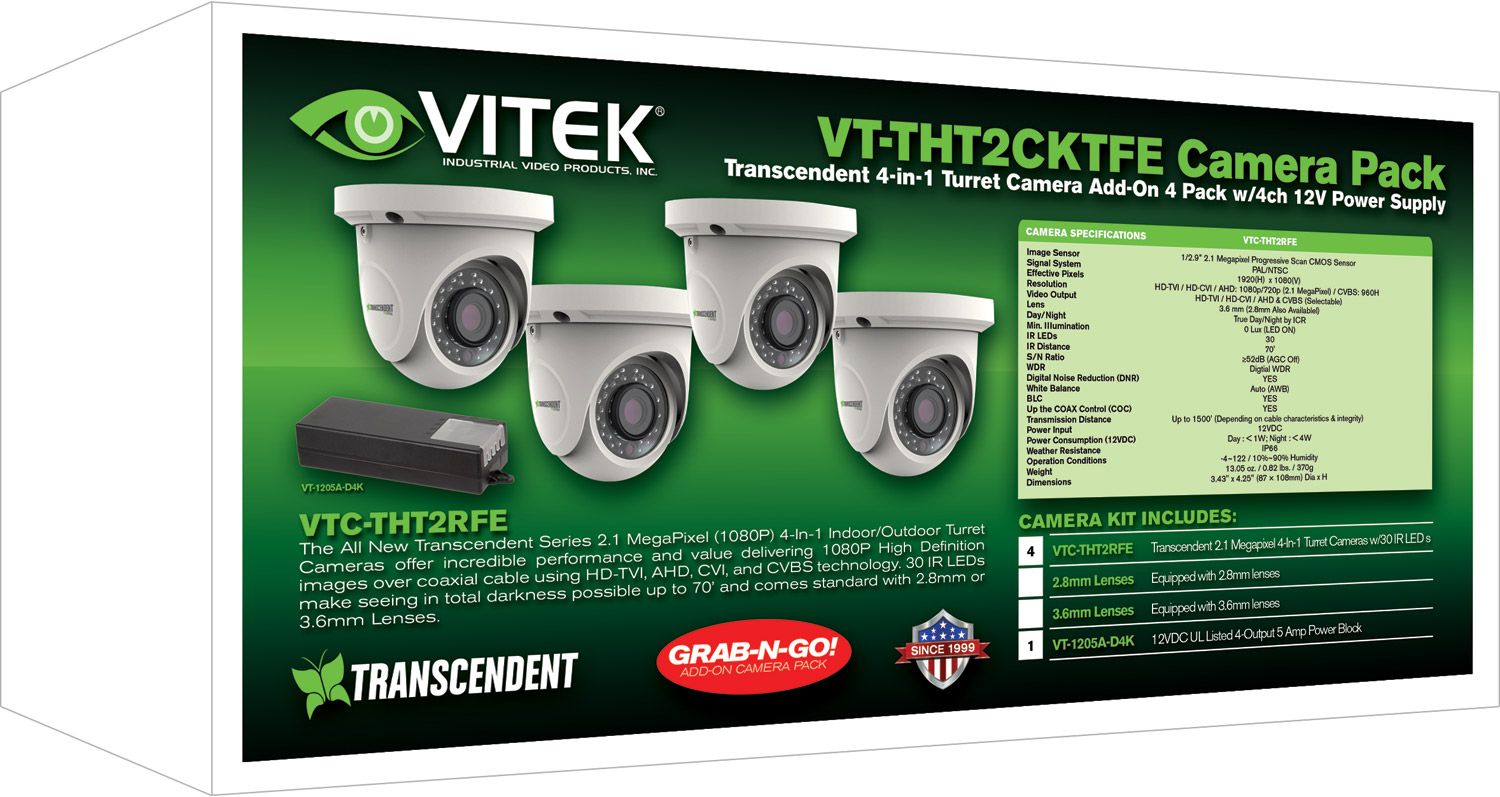

Vitek VT-THT2CKTFE-2 HD-TVI/AHD/CVI/CVBS 1080P Fixed Turret Camera 4 Pack Includes VTC-THT2RFE-2 with 2.8mm Lens VT-1205A-D4K 12VDC Power Block

SKU
VT-THT2CKTFE-2
Model No
VT-THT2CKTFE-2
$226.80
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/2.9″ 2.1 Megapixel Progressive Scan CMOS Sensor
  • HD-TVI, AHD, CVI, and CVBS Video Output
  • Digital Wide Dynamic Range (D-WDR)
  • True Mechanical Day/Night function by ICR
  • 3D-DNR Noise Reduction

The VT-THT2CKTFE-2 from Vitek is a high-performance TVI/AHD/CVI/CVBS 1080P fixed turret camera 4 pack, which comes complete with the VTC-THT2RFE-2 featuring a 2.8mm lens and the VT-1205A-D4K 12VDC power block. This versatile setup provides exceptional video quality and ensures reliable power delivery, making it an ideal choice for both residential and commercial surveillance applications.

Vitek VT-THT2CKTFE-2 Camera Features

  • 1/2.9” 2.1 Megapixel Progressive Scan CMOS Sensor: Delivers high-resolution images for clear and detailed surveillance.
  • HD-TVI, AHD, CVI, and CVBS Video Output: Offers flexible connectivity options to integrate with existing systems seamlessly.
  • Digital Wide Dynamic Range (D-WDR): Enhances image quality in varying light conditions, ensuring visibility in both bright and dark areas.
  • True Mechanical Day/Night function by ICR: Automatically switches between day and night modes to optimize performance during low-light conditions.
  • 3D-DNR Noise Reduction: Reduces noise in the video feed, enhancing clarity and detail for enhanced surveillance.
  • IP66 Weather Resistance: Ensures reliable performance in harsh weather conditions, protecting the camera from dust and water.
  • Supports Up The COAX Control: Simplifies installation and control of multiple camera features over a single cable.
  • Over 1500’ HD Video Transmission: Provides long-distance surveillance capabilities depending on cable characteristics and integrity.
  • Optional Junction Box Mounts Available: Allows for flexible installation options to meet various mounting requirements.
  • 12VDC Operation: Standard power supply operation for compatibility with various power setups.

Vitek VT-1205A-D4K Features

  • 12VDC Plug-in Power Supply: Convenient plug-in design for easy setup and operation.
  • 4-Output Terminal Strip Connection: Supports multiple device connections for expanded system capabilities.
  • Lock on Power Outlet Screw: Ensures a secure connection, reducing the risk of power interruptions.
  • UL Approved: Meets strict safety standards for reliable usage.
  • 5A Amp Output: Provides ample power to support connected devices efficiently.
  • PTC (Resettable) Fuse: Offers protection against overload and faults, ensuring safe operation.

Detailed Specifications

Camera ModelVT-THT2CKTFE-2
Sensor Type1/2.9” 2.1 Megapixel Progressive Scan CMOS
Video Output FormatsHD-TVI, AHD, CVI, CVBS
Minimum Illumination0.01 Lux (F1.2 / 30IRE)
Weather ResistanceIP66
Operating Temperature-22°F to 140°F (-30°C to 60°C)
Power Supply ModelVT-1205A-D4K
Output Voltage12VDC
Maximum Output Current5A
ApprovalUL Listed
SKU  VT-THT2CKTFE-2
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Weather Resistant, Wide Dynamic Range
Manufacturer  Vitek
Camera Signal     Analog, HD-AHD, HD-CVI, HD-TVI
Sensor Option    1/2.9" CMOS
Lens Type    Fixed
Lens Size    2.8mm
Infrared Distance    61~100 Feet
Durability    Indoor, Weather Resistant
Mount Type  Ceiling, Wall
Voltage  12vDC
Image Device    1/2.9” 2.1 Megapixel Progressive Scan CMOS Sensor
Image Pixels-Effective1920(H) x 1080(V)
IR Distance  21.33m/70ft
Minimum Scene Illumination  0 Lux (LED ON)
Operating Humidity    10%~90%
Operating Temperature    -4~122
Dimensions (W x H)  3.43” x 4.25” (87 × 108mm) Dia x H
Power Consumption  Day : < 1W; Night : < 4W
S/N Ratio  ≥52dB (AGC Off)
Signal System    NTSC/PAL
Weatherproof    IP66
Digital Noise Reduction    3D-DNR
Rotation Angle0°~220°
Automatic White Balance    Auto (AWB)
IR LEDs  30
Back Light Compensation    Yes
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
Auto Gain Control    Yes
There are no related videos.

0

0 reviews

Write a review

Share your thoughts with other customers

Top customer reviews

No reviews

Write Your Own Review
You're reviewing:Vitek VT-THT2CKTFE-2 HD-TVI/AHD/CVI/CVBS 1080P Fixed Turret Camera 4 Pack Includes VTC-THT2RFE-2 with 2.8mm Lens VT-1205A-D4K 12VDC Power Block
Your Rating
Manuals & Specifications
  VT-THT2CKTFE-2-Specsheet
  VT-1205A-D4K-Specsheet
  VT-THT2CKTFE-2-Manual
  VT-1205A-D4K-Manual
