Vivotek VC9101 Video Core
SKU
VC9101

Vivotek Model VC9101

Vivotek VC9101 Video Core

Free shipping
Model No
VC9101
$501.44
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Discreet, Recessed-Mount Camera Units
  • Supports 1 Camera Unit
  • Two-Way Audio on Video Core
  • WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
  • Face Check - Smart Motion Detection

Overview

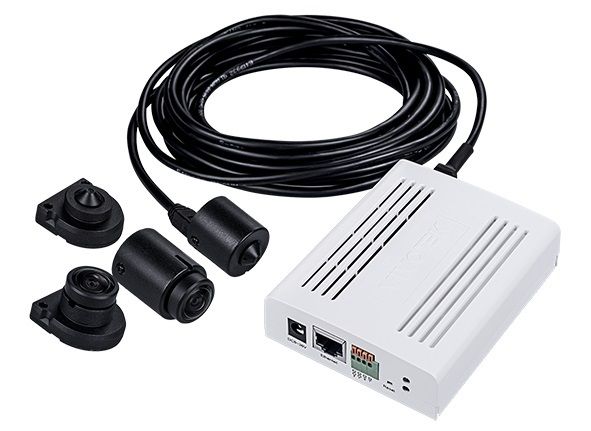

VIVOTEK’s VC9101 is a high-performance split-type camera system. Its discreet design, rich functionality, and ability to be flexibly integrated into even the tightest spaces, make this camera ideal for indoor or covert surveillance of ATMs, banks, stores and offices.

The VC9101 features a separate camera unit (CU series) and video core design, enabling the tiny camera unit (with 5-meter long cable) to be easily and flexibly installed into any decoration or interior design, thus preserving stylish appearances while dramatically saving on installation time and cost.

VC9101 video core has a powerful processor which can stream a 5MP 360 degree fisheye image or a 4MP 16:9 image. Furthermore, the VC9101 is equipped with CNN (Convolutional Neural Network) hardware accelerator which allows the deep learning VCA be more efficient and powerful. VC9101 also provides deep learning based face detection suitable for most installation scenarios.

The VC9101 camera core can support one camera unit and is designed to work in perfect harmony with a choice of 4 different types of camera units, CU9171-H, CU9171-HF, CU9183-H and CU9183-HF. The whole system incorporates a number of advanced features found in VIVOTEK cameras, including WDR Pro, SNV, Smart Stream III technology, 3DNR, and security features like secure boot, signed firmware, and Trend Micro cybersecurity.

VIVOTEK VC9101 Camera Features

  • Discreet Design: The recessed-mount camera units ensure that the camera remains unobtrusive, making it suitable for surveillance in sensitive areas.
  • Supports 1 Camera Unit: Flexibility to connect with various camera units tailored for different surveillance needs.
  • Two-Way Audio: Enhances communication capabilities directly from the video core, allowing for interactive surveillance.
  • WDR Pro (120 dB): Improves visibility in high-contrast scenes, providing clear images regardless of lighting conditions.
  • Face Check: Smart motion detection powered by deep learning algorithms to enhance security measures effectively.
  • Video Rotation for Corridor View: Provides optimal video display for elongated spaces and narrow environments.
  • Trend Micro IoT Security: Enhanced cybersecurity feature to protect against potential vulnerabilities in connected devices.

VIVOTEK VC9101 Detailed Specifications

Camera TypeSplit-type camera system
Image Sensor5MP 360-degree fisheye or 4MP 16:9
Audio SupportTwo-way audio functionality
ProcessorPowerful processing unit with CNN hardware accelerator
Camera Units SupportedCompatible with CU9171-H, CU9171-HF, CU9183-H, and CU9183-HF
Advanced TechnologiesWDR Pro, SNV, Smart Stream III, 3DNR
Cybersecurity FeaturesSecure boot, signed firmware, Trend Micro protection

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Automatic White Balance
  • Back Light Compensation
  • Motion Detection Tracking
  • Wide Dynamic Range
  • Mirror
  • ONVIF
  • Digital Zoom

Specifications

SKU  VC9101
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Wide Dynamic Range, Facial Recognition
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    5 Megapixel
Mount Type  Bracket Required
Compression Method    H.264, M-JPEG, H.265
Durability    Indoor
Voltage  12vDC, PoE
Dimensions (W x H)  105 (W) x 84 (D) x 30 (H) mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2.7" Progressive CMOS
Minimum Scene Illumination  0.035 lux @ F2.0 (Color)
Operating Humidity    90% RH (non-condensing)
Operating Temperature    -10°C ~ 50°C (14°F ~ 122°F)
Power Consumption  Max. 8.5 W
Protocols  802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
S/N Ratio  55.9 dB
Digital Noise Reduction    3DNR
Motion Detection Tracking    Five-window video motion detection, face detection, time filter
