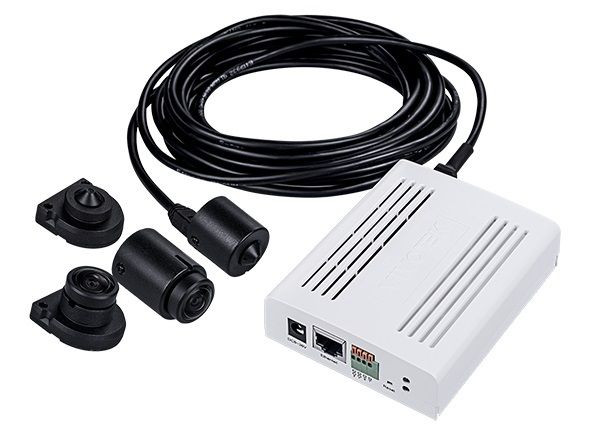

Vivotek CU9183-H VC9101 Unit, Flat Shape (Fisheye)
SKU
CU9183-H

Vivotek Model CU9183-H

Vivotek CU9183-H VC9101 Unit, Flat Shape (Fisheye)

Free shipping over $450
Model No
CU9183-H
$232.50
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Discreet, Recessed-Mount Camera Units
  • Supports 1 Camera Unit
  • WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
  • Face Check - Smart Motion Detection
  • Video Rotation for Corridor View

Overview

VIVOTEK’s CU9183-H is a high-performance split-type camera system designed for discreet and efficient surveillance. Its compact design allows for flexible integration in tight spaces, making it perfect for monitoring ATMs, banks, stores, and offices. Notable features include a CNN hardware accelerator for enhanced deep learning capabilities, along with advanced security protocols ensuring user safety.

VIVOTEK CU9183-H Camera Features

  • Discreet, Recessed-Mount Camera Units: The compact design allows for installation in even the most confined spaces, maintaining aesthetic appeal without compromising on functionality.
  • Supports 1 Camera Unit: The flexible design supports one camera unit, simplifying the installation process while ensuring adequate surveillance coverage.
  • WDR Pro (120 dB): This feature improves visibility in high contrast lighting conditions, making it easier to identify subjects in diverse environments.
  • Face Check - Smart Motion Detection: Utilizes advanced algorithms for efficient face detection, enhancing monitoring accuracy and reducing false alerts.
  • Video Rotation for Corridor View: Adjusts the video feed to suit corridor layouts, maximizing the effectiveness of surveillance in narrow spaces.
  • Trend Micro IoT Security: Integrates robust cybersecurity measures to protect the camera system from potential threats, ensuring reliable and secure operation.

Detailed Specifications for VIVOTEK CU9183-H

Camera TypeSplit-type camera system
ShapeCylinder
ResolutionHigh performance with deep learning capabilities
Frame Rate30 fps
Cable Length5 meters
Advanced FeaturesWDR Pro, SNV, Smart Stream III, 3DNR
Security FeaturesSecure boot, signed firmware, Trend Micro cybersecurity

Built-in Functions

  • Audio
  • Auto Gain Control
  • Digital Noise Reduction
  • Automatic White Balance
  • Back Light Compensation
  • Motion Detection Tracking
  • Wide Dynamic Range
  • Mirror
  • ONVIF
  • Digital Zoom

Specifications

SKU  CU9183-H
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Wide Dynamic Range, Facial Recognition
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    5 Megapixel
Lens Type    Fixed
Lens Size    1.22mm
Mount Type  Bracket Required
Compression Method    H.264, M-JPEG, H.265
Durability    Indoor
Voltage  12vDC, PoE
Dimensions (W x H)  33 x 32 x 20 mm (Without cable
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2.7" Progressive CMOS
Minimum Scene Illumination  0.035 lux @ F2.0 (Color)
Operating Humidity    90% RH (non-condensing)
Operating Temperature    -10°C ~ 50°C (14°F ~ 122°F)
Power Consumption  Max. 8.5 W
Protocols  802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
S/N Ratio  56.3 dB
Digital Noise Reduction    3DNR
Angle of View    180° (Horizontal), 100° (Vertical), 180° (Diagonal)
Motion Detection Tracking    Five-window video motion detection, face detection, time filter
