Vivotek CU9171-H 4 Megapixel Network Indoor Mini Board Camera with 3.7mm Lens

SKU
CU9171-H
Vivotek CU9171-H 4 Megapixel Network Indoor Mini Board Camera with 3.7mm Lens CU9171-H by Vivotek
Vivotek CU9171-H 4 Megapixel Network Indoor Mini Board Camera with 3.7mm Lens CU9171-H by Vivotek
Model No
CU9171-H
$170.00
Qty:
Product Highlights
    • Discreet, Recessed-Mount Camera Units
    • Supports 1 Camera Unit
    • WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
    • Face Check - Smart Motion Detection
    • Video Rotation for Corridor View

VIVOTEK’s CU9171-H is a high-performance split-type camera system. Its discreet design, rich functionality, and ability to be flexibly integrated into even the tightest spaces, make this camera ideal for indoor or covert surveillance of ATMs, banks, stores and offices.

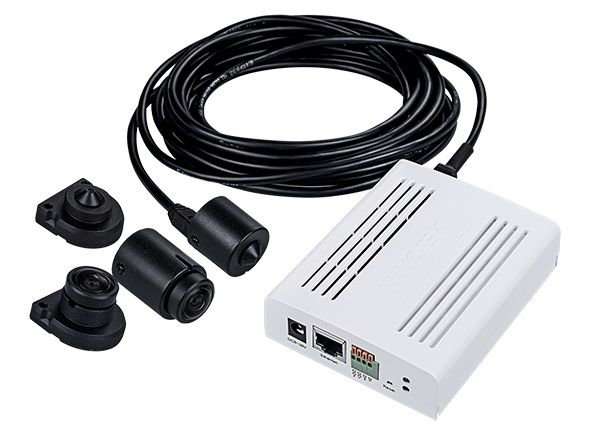

The CU9171-H features a separate camera unit (CU series) and video core design, enabling the tiny camera unit (with 5-meter long cable) to be easily and flexibly installed into any decoration or interior design, thus preserving stylish appearances while dramatically saving on installation time and cost.

Furthermore, the CU9171-H is equipped with CNN (Convolutional Neural Network) hardware accelerator which allows the deep learning VCA be more efficient and powerful. CU9171-H also provides deep learning based face detection suitable for most installation scenarios.

The whole system incorporates a number of advanced features found in VIVOTEK cameras, including WDR Pro, SNV, Smart Stream III technology, 3DNR, and security features like secure boot, signed firmware, and Trend Micro cybersecurity.

Features

  • Discreet, Recessed-Mount Camera Units
  • Supports 1 Camera Unit
  • WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
  • Face Check - Smart Motion Detection
  • Video Rotation for Corridor View
  • Trend Micro IoT Security
SKU  CU9171-H
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Wide Dynamic Range, Facial Recognition
Manufacturer  Vivotek
NDAA Compliant
Camera Signal    Network IP
Connection Type  Wired
Infrared Distance   Non Infrared
Resolution   4 Megapixel
Lens Type   Fixed
Lens Size   3.7mm
Mount Type  Bracket Required
Compression Method   H.264, M-JPEG, H.265
Durability   Indoor
Voltage  12vDC, PoE
Dimensions (W x H)  Ø 24 x 30 mm (Without cable)
Electronic Shutter   1/5 sec. to 1/32,000 sec
Image Device   1/2.7" Progressive CMOS
Minimum Scene Illumination  0.045 lux @ F2.5 (Color)
Operating Humidity   90% RH (non-condensing)
Operating Temperature   -10°C ~ 50°C (14°F ~ 122°F)
Power Consumption  Max. 8.5 W
Protocols  802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
S/N Ratio  55.9 dB
Digital Noise Reduction   3DNR
Angle of View   93° (Horizontal), 48° (Vertical), 117° (Diagonal)
Motion Detection Tracking   Five-window video motion detection, face detection, time filter
Audio Yes
Auto Gain Control   Yes
Digital Noise Reduction   Yes
Automatic White Balance   Yes
Back Light Compensation   Yes
Motion Detection Tracking   Yes
Wide Dynamic Range   Yes
Mirror   Yes
ONVIF  Yes
Digital Zoom Yes
