RVS Systems RVS-775R-08 120° HD Side Camera, Right, 33' Cable, RCA Adapter, Black
SKU
RVS-775R-08
Model No
RVS-775R-08
$141.50
Product Highlights
- 120° angle left side camera, White
- Weather-resistant
- 16' Cable
- 2.1mm Lens
Speak to an expert

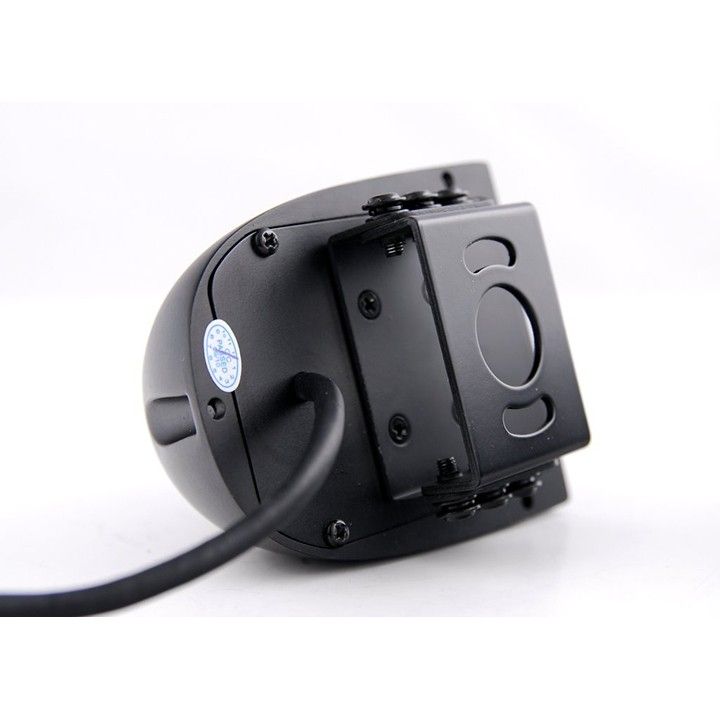

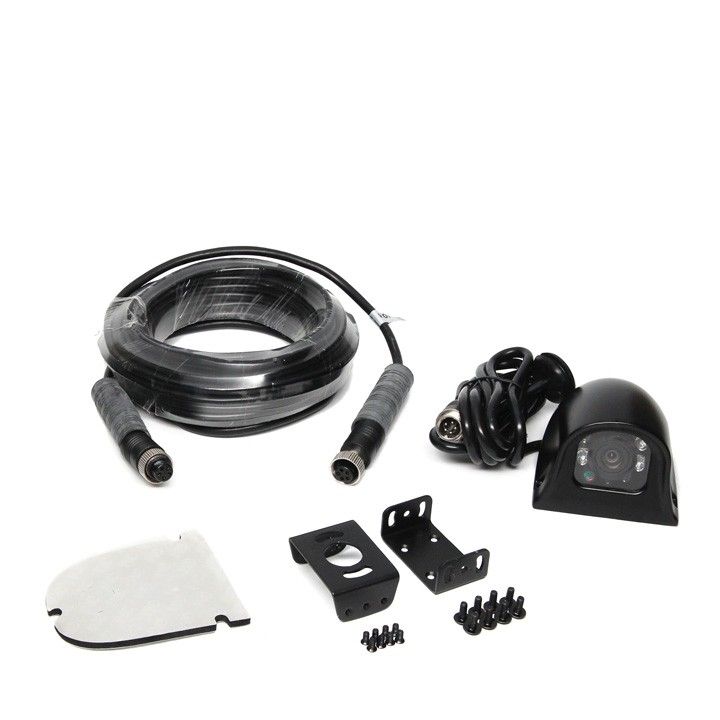

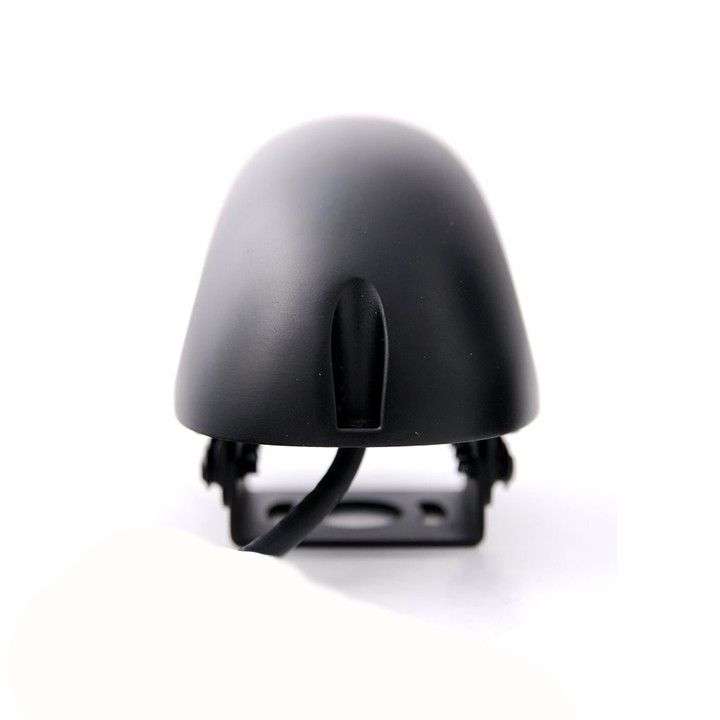

The RVS-775R-08 from RVS Systems is a state-of-the-art 120° HD side camera designed for optimal visibility and durability. Featuring a high-resolution 250,000 pixel lens and an IP68 weather-resistant casing, this camera excels in all environments. Equipped with an impressive 33' cable and easy RCA adapter connectivity, it ensures seamless integration with any monitoring system.
RVS Systems RVS-775R-08 Camera Features

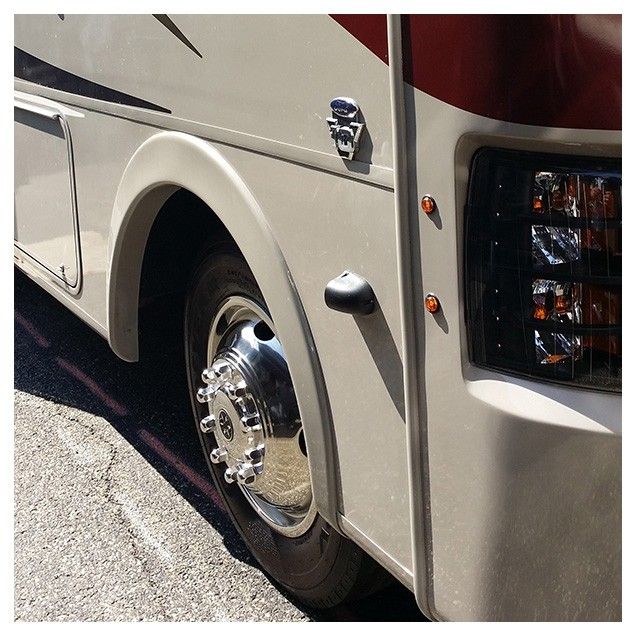

- 120° Angle View: Provides enhanced visibility of the side area of your vehicle, reducing blind spots and improving safety.
- Weather-Resistant Design: IP68 rating ensures durability against water and dust, making it suitable for all weather conditions.
- 33' Cable: Long cable length offers flexible installation options, allowing you to position the camera conveniently without compromising on visibility.
- 2.1mm Lens: High-resolution lens provides clear images, enhancing night vision with 9 infra-red illuminators for visibility in complete darkness.
- RCA Adapter: Simplifies connection with your existing monitor setup, ensuring compatibility and easy installation.
Detailed Specifications for RVS Systems RVS-775R-08
| Camera Type | HD Side Camera |
| Angle of View | 120° |
| Resolution | 250,000 pixels |
| Lens Diameter | 2.1 mm |
| Infra-red Illuminators | 9 |
| Weather Resistance Rating | IP68 |
| Cable Length | 33' with double-sided female aircraft grade connectors |
| Adapter Type | 5 Pin Male to Male RCA with Male Power |
SKU  | RVS-775R-08 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 to 1.0 |
| Image Device | 1/4" Sharp Color CCD |
| IR Distance | 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +80°C |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75 Ω |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 120° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
