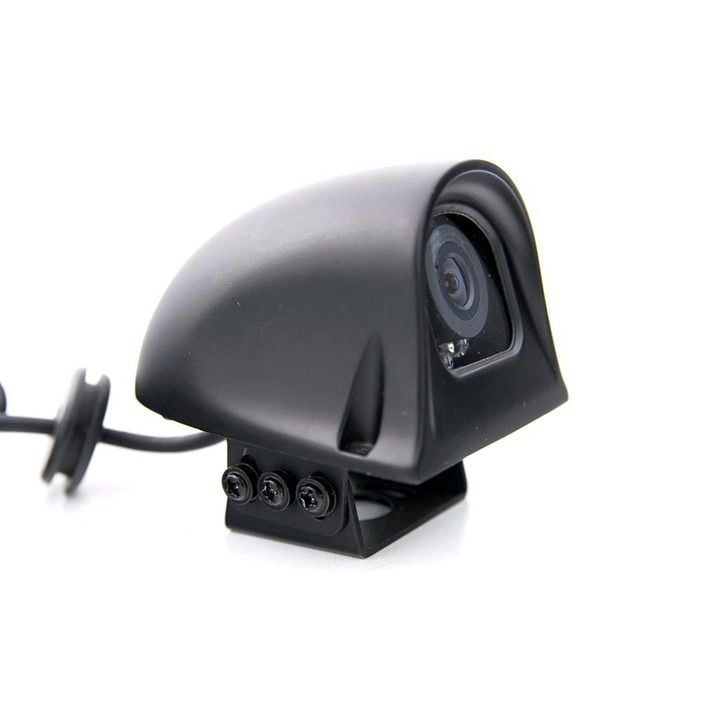

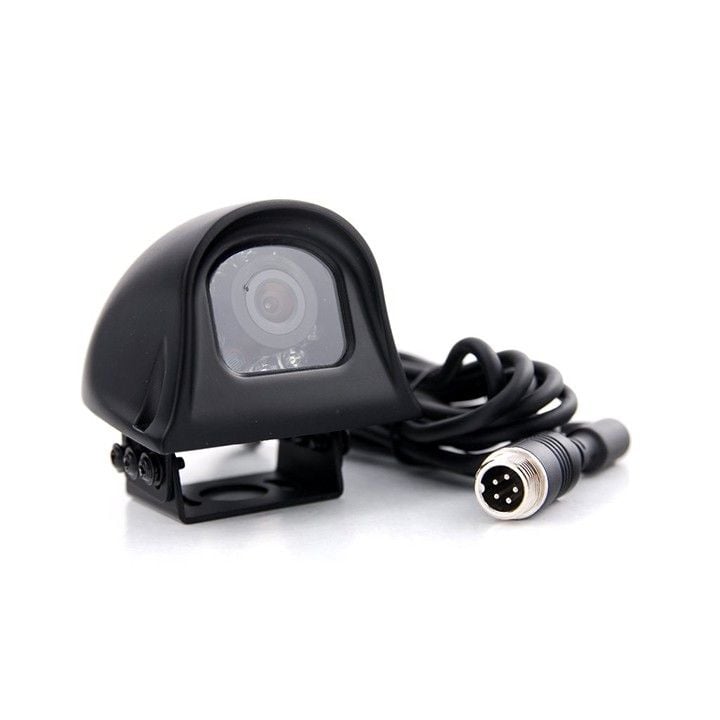

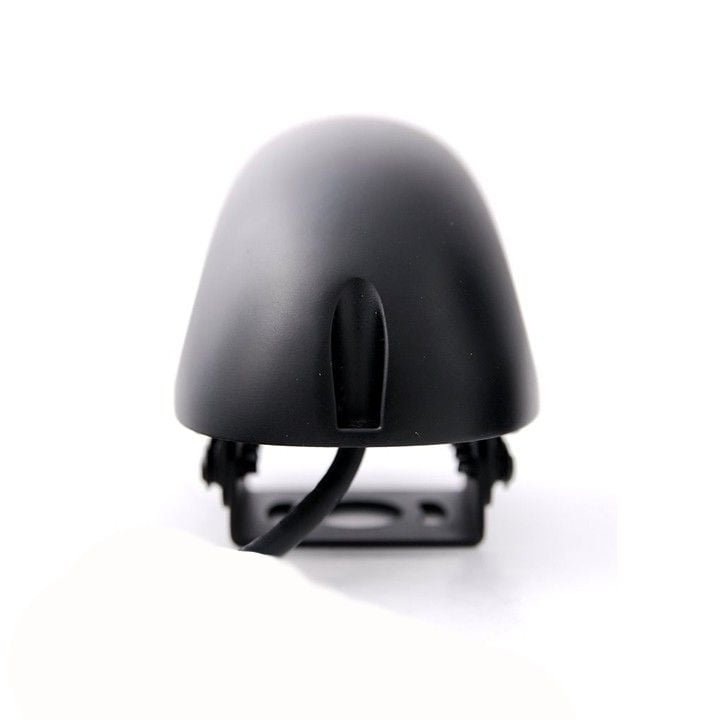

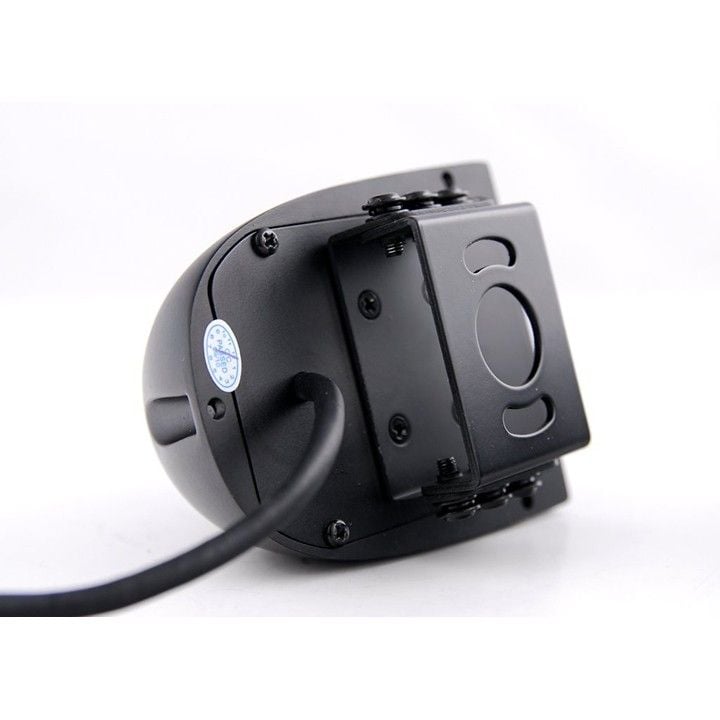

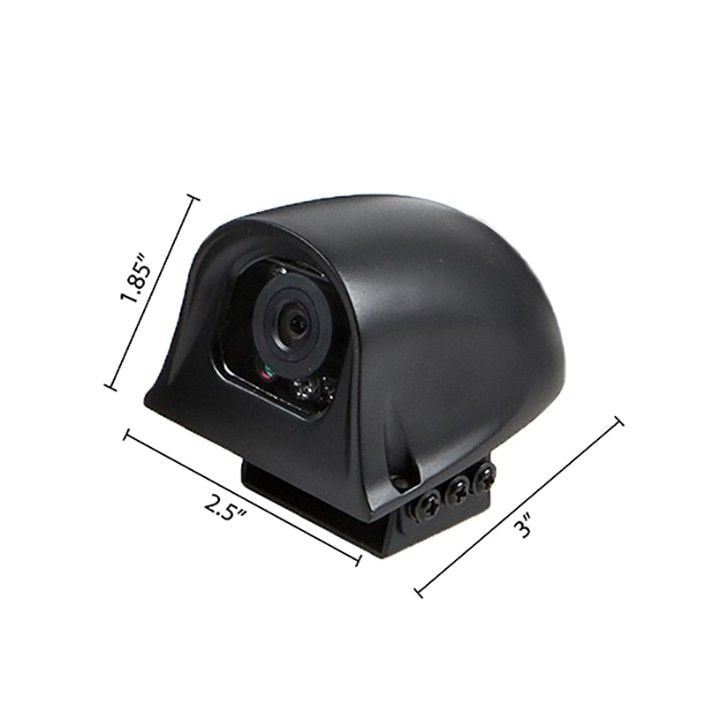

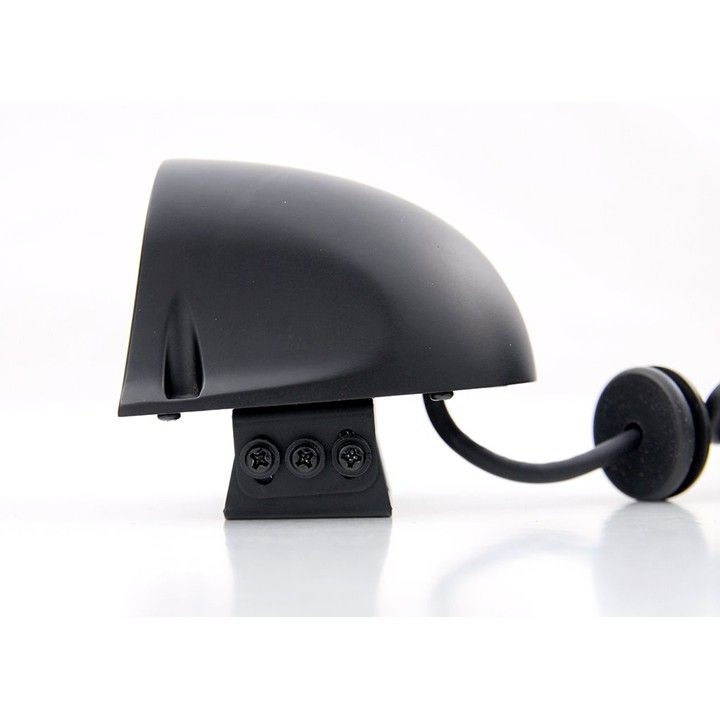

RVS Systems RVS-775L-08 120° HD Side Camera, Left, 33' Cable, RCA Adapter, Black

SKU
RVS-775L-08
Model No
RVS-775L-08
$141.50
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 120° angle left side camera, White
  • Weather-resistant
  • 16' Cable
  • 2.1mm Lens

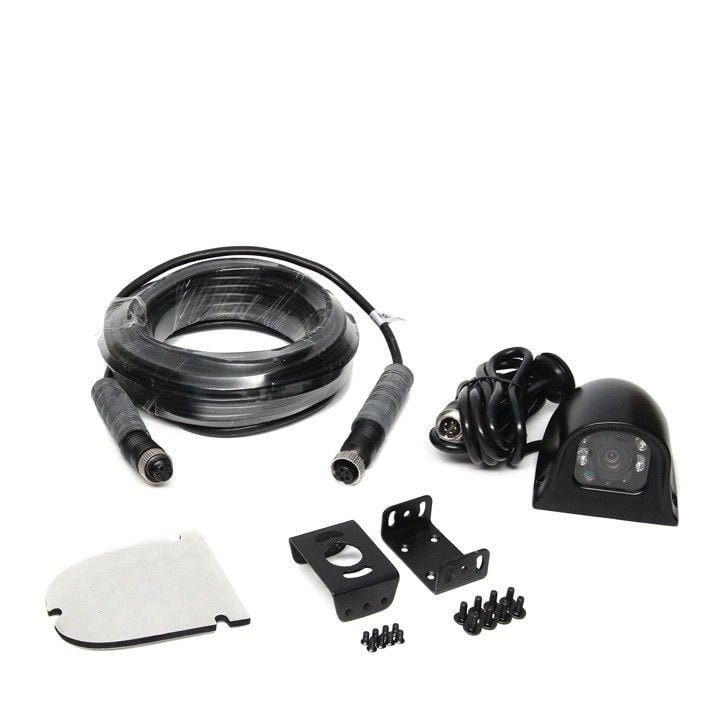

The RVS-775L-08 from RVS Systems is a 120° angle left side camera which is the clearest and greatest camera available on the market today. It boasts a 250,000 pixel 2.1 mm lens with 9 infra-red illuminators which enable you to see in total darkness. The casing of the camera has an IP68 rating which can withstand all weather conditions. This camera comes with 16-foot camera cable with double-sided female aircraft grade connectors. Camera Comes with 33' Camera Cable with a double-sided Female Air-Craft Grade Connection, 5 Pin Male to Male RCA with Male Power. The purpose of this adapter is to connect our camera to any monitor with an RCA input, Cable to connect power to RCA adapters.

RVS Systems RVS-775L-08 Camera Features

  • 120° Viewing Angle: Provides a wide field of view for better visibility and safety while driving.
  • Weather-Resistant Design: IP68 rating ensures durability and functionality in all weather conditions.
  • High-Resolution Lens: 2.1mm lens with 250,000 pixels delivers clear images for enhanced visibility.

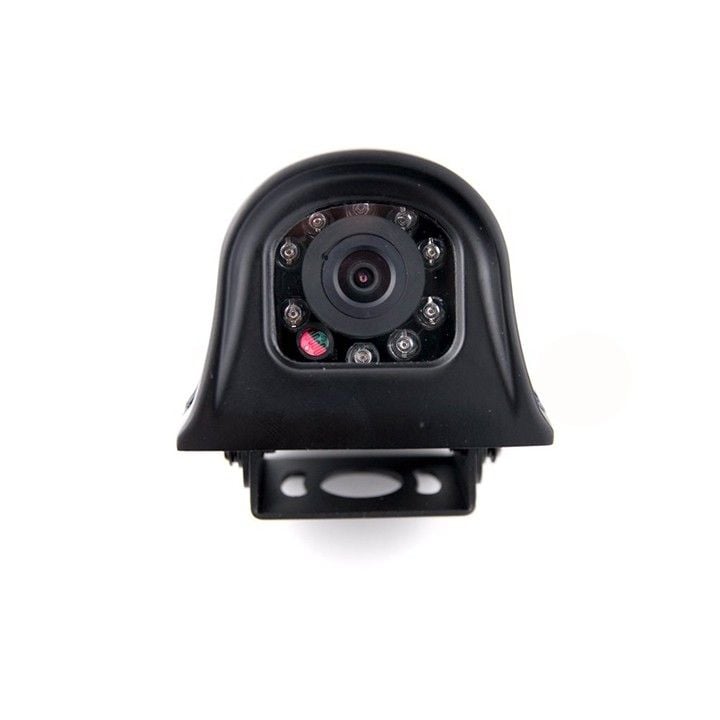

  • Infra-red Illuminators: 9 built-in illuminators allow for clear vision in complete darkness.
  • Extended Cable Length: 33' camera cable ensures easy installation in various vehicle types.
  • RCA Adapter Included: Easily connects the camera to any monitor with an RCA input.

RVS Systems RVS-775L-08 Detailed Specifications

Model NumberRVS-775L-08
Camera Angle120°
Lens Type2.1mm
Pixel Count250,000
Infra-red Illuminators9
Weather RatingIP68
Camera Cable Length33'
Connection TypeDouble-sided Female Aircraft Grade
Adapter Type5 Pin Male to Male RCA with Male Power
SKU  RVS-775L-08
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    420 TVL
Sensor Option    1/4" CCD
Lens Type    Fixed
Lens Size    2.1mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Voltage  12-24vDC
Gamma Correction  R=0.45 to 1.0
Image Device    1/4" Sharp Color CCD
IR Distance  9.14m/30ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Humidity    RH 95% Max
Operating Temperature    -40°C ~ +80°C
S/N Ratio  More than 48dB
Video Output    1Vp.p 75 Ω
Weatherproof    IP68
Synchronization  Internal Synchronization
Angle of View    120°
IR LEDs  9
Auto Gain Control    Yes
