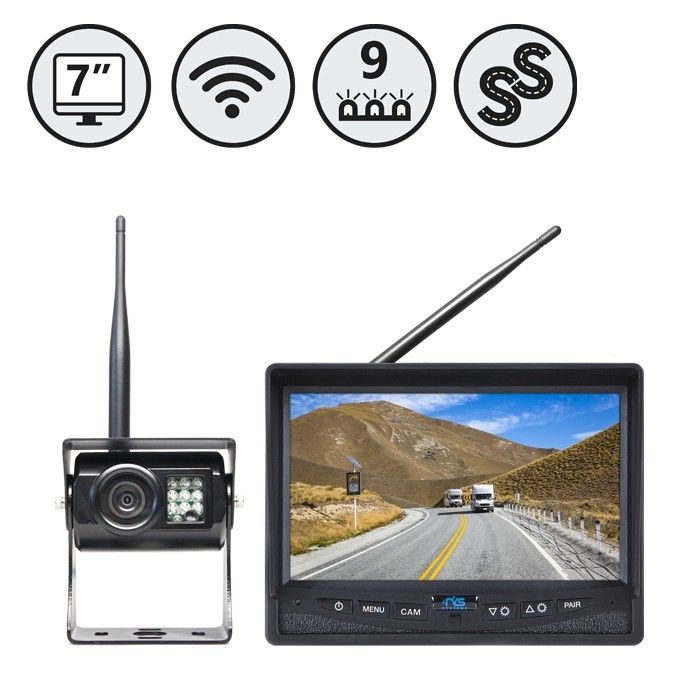

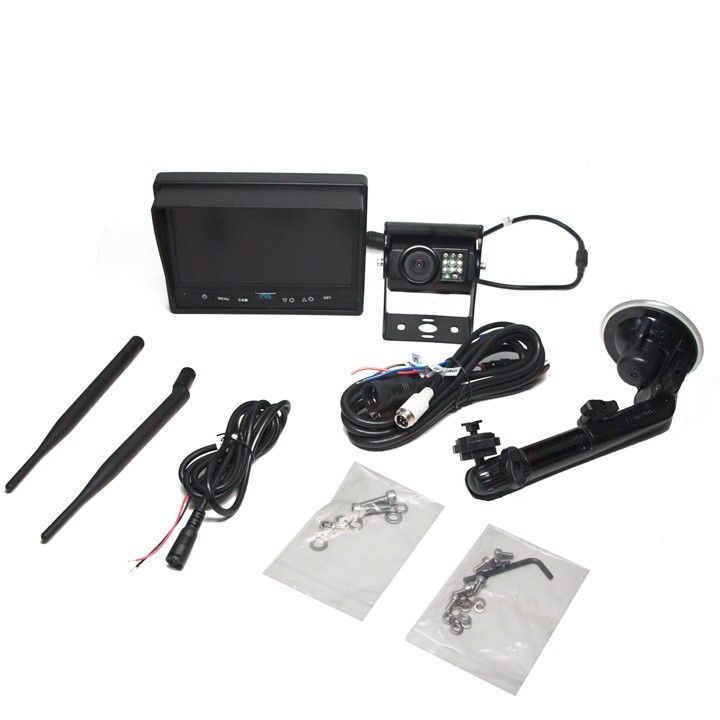

RVS Systems RVS-355W-SC-04 540 TVL Wireless Backup Camera, 7" Wireless Display, Suction Cup Mount
- 7" LED Digital Monitor with Suction Cup Mount
- Waterproof Backup Camera with Infra-Red Night Vision
- Two Wired inputs - Connect Up To Two Side Cameras
- Guaranteed transmission of 100ft Even At Highway Speeds
- Instant Pair - Pair System Without Leaving Your Cab
RVS Systems RVS-355W-SC-04 Wireless Backup Camera Features
The RVS-355W-SC-04 from RVS Systems is perfect for truck and trailer applications. Two wired side cameras install easily to your truck and the backup camera is wireless to allow easy installation on your trailer. Part of our new SimpleSight series, the system is equipped instant pair, allowing you to easily swap between trucks and trailers. Simply hit pair from the menu and turn on power for the trailer and the system will pair automatically. This system features optional adjustable distance grid lines.
The RVS-35WM is the newest wireless monitor, part of our new SimpleSight Series was born from years of testing and multiple prototypes. This monitor can receive a 100' digital wireless signal which is guaranteed to work even at highway speeds. Users can pair this wireless monitor with our compatible wireless camera (RVS-50W) sold separately.

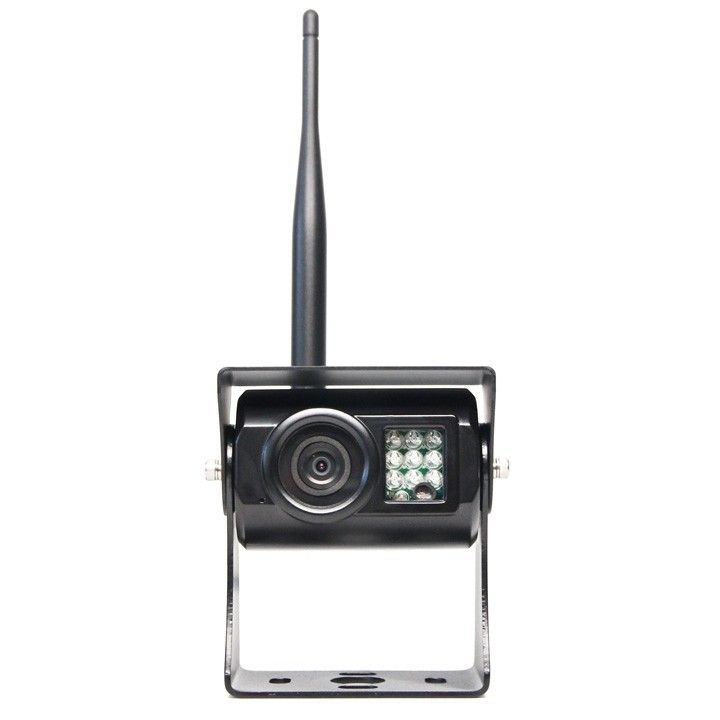

The RVS-50W is a wireless camera, part of our new SimpleSight Series, was born from years of testing and multiple prototypes. This camera boasts a 100' digital wireless range which is guaranteed to work even at highway speeds. No need to leave the driver's seat for pairing, simply press the "Instant Pair" button to connect the wireless camera and monitor together.
The RVS-1415 is a monitor mount comes with a suction cup for effortless application to vehicle windscreen. The reach of its arm is 7 inches and can be extended to 9 inches. It comes with one joint at the bottom and a swivel head for great maneuverability.
Key Features
- 7" LED Digital Monitor: The large display provides clear visuals for effective monitoring while driving.
- Waterproof Backup Camera: With Infra-Red Night Vision, the camera ensures visibility in low light conditions, enhancing safety.
- Two Wired Inputs: Connect up to two side cameras for improved awareness and additional viewing angles.
- Guaranteed Transmission Range: Achieves up to 100ft wireless signal even at highway speeds ensuring reliable performance.
- Instant Pair Technology: Allows easy pairing of the system without leaving your cab, offering convenience and efficiency.
RVS Systems RVS-355W-SC-04 Detailed Specifications
| Feature | Details |
|---|---|
| Model | RVS-355W-SC-04 |
| Camera Type | Wireless Backup Camera |
| Display Type | 7" LED Monitor |
| Camera Night Vision | Infra-Red Night Vision |
| Wired Side Camera Inputs | Two Inputs |
| Wireless Range | Up to 100ft |
| Paiing Method | Instant Pair button |
| Mount Type | Suction Cup Mount |
| Monitor Arm Reach | 7 inches (extendable to 9 inches) |
| Waterproof Rating | Yes |
SKU  | RVS-355W-SC-04 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12vDC |
| Gamma Correction | R=0.45 to 1.0 |
| Image Device | 1/4" Sharp Color CCD |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR ON) |
| Operating Humidity | RH 95% |
| Operating Temperature | -30°C ~ +80°C |

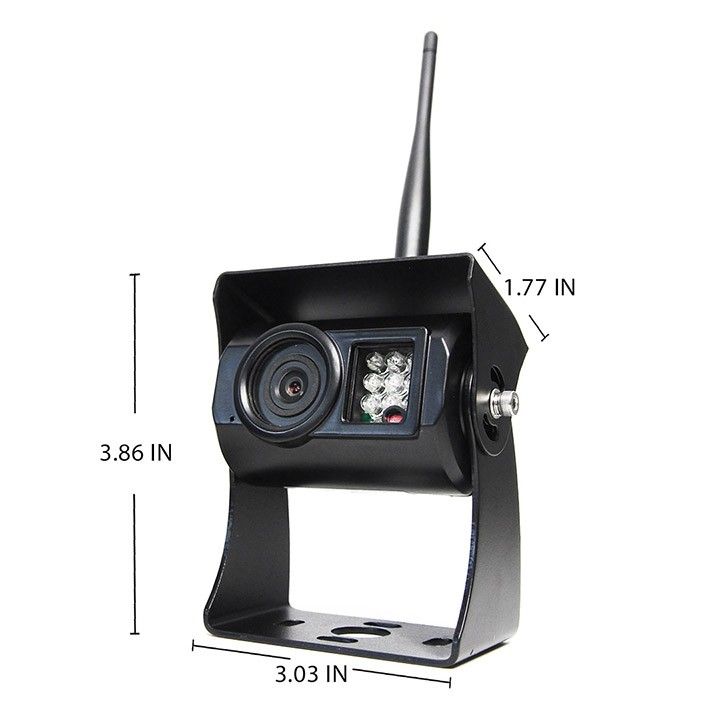

| Dimensions (W x H) | 3.8" (H) x 3" (L) x 1.7" (D)Â |
| S/N Ratio | More than 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP69 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
