RVS Systems RVS-770616N 620 TVL Analog Outdoor Backup Camera System With Side Cameras, 2.5 mm Lens
SKU
RVS-770616N
Model No
RVS-082506
$559.99
Product Highlights
- Backup Camera System with 1 Backup and 2 Side Cameras
- 7" LED Digital Panel Color Display
- Waterproof Cameras with Infra-Red Night Vision
- Optional Quad View Upgrade
- Built-in Mic and Speaker for Audio
Speak to an expert
This RVS Systems RVS-770616N 620 TVL Analog Outdoor Backup Camera System with Side Cameras offers enhanced visibility and safety while driving, featuring a robust selection of advanced technologies. Its crystal-clear 7-inch LED Digital Panel monitor, paired with three strategically placed cameras, ensures complete coverage during reversing maneuvers, day or night. With its weatherproof design and exceptional durability, this system is built to withstand the rigors of outdoor use.
RVS Systems RVS-770616N Camera Features
- Backup Camera System: Comprehensive setup with one rear backup camera and two side cameras for an all-around view.

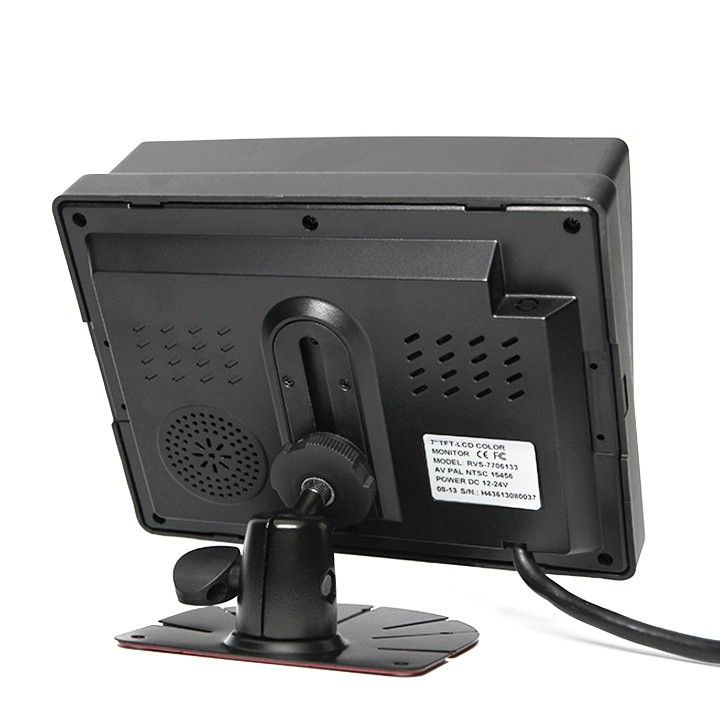

- 7" LED Digital Panel Color Display: Offers clear visibility with distance grid lines for safe maneuvering.
- Waterproof Cameras: Built to last with an IP69K rating, these cameras are fully sealed against moisture and dust.
- Infra-Red Night Vision: Surroundings are clearly visible even in low-light conditions, ensuring safety at any time of day.
- Optional Quad View Upgrade: Allows monitoring of all cameras simultaneously for enhanced safety.
- Built-in Mic and Speaker: Added convenience for communication and alerts while reversing.
Detailed Specifications for RVS Systems RVS-770616N
| Product Type | Backup Camera System |
| Camera Quantity | 1 Rear Camera, 2 Side Cameras |
| Display Size | 7 inches |
| Camera Lens | 2.5 mm |
| Viewing Angle | 130° (Rear), 120° (Side) |
| Night Vision | 50 feet with Infra-red LEDs |
| Weatherproof Rating | IP69K |
| Shock Resistance | 20G Vibration Rating |
| Audio Feature | Built-in Microphone and Speaker |
SKU  | RVS-770616N |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp® Color CCD |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |
| Dimensions (W x H) | Side Camera: 1.85" (H) x 2.5" (L) x 3" (D), Backup Camera: 3.25" (H) 3" (L) 1.5" (D), Multiplexer: 1.25" (H) x 4.5" (L) x 4" (D), Monitor: 5.25" (H) x 7" (L) x 1" (D) |
| Power Consumption | 5W |
| S/N Ratio | More than 48dB |
| Signal System | PAL/NTSC |
| Video Output | 1Vp-p, 75Ω |
| Weatherproof | IP69 |
| Synchronization | Internal |
| Angle of View | 130° |
| IR LEDs | 18 |
| Audio | Yes |
| Day/Night | Yes |
| Auto Gain Control | Yes |
