RVS RVS-7706135 620 TVL Backup Camera System with Side Camera, 2.5mm Lens
SKU
RVS-7706135
Model No
RVS-082580
$326.30
Product Highlights
- Backup Camera System with 1 Backup and 1 Side Camera
- 7" or 9" LED Digital Panel Display (See Item Options)
- Waterproof Cameras with Infra-Red Night Vision
- Optional Quad View Upgrade (See Item Options)
- Built-in Mic and Speaker for Audio
Speak to an expert

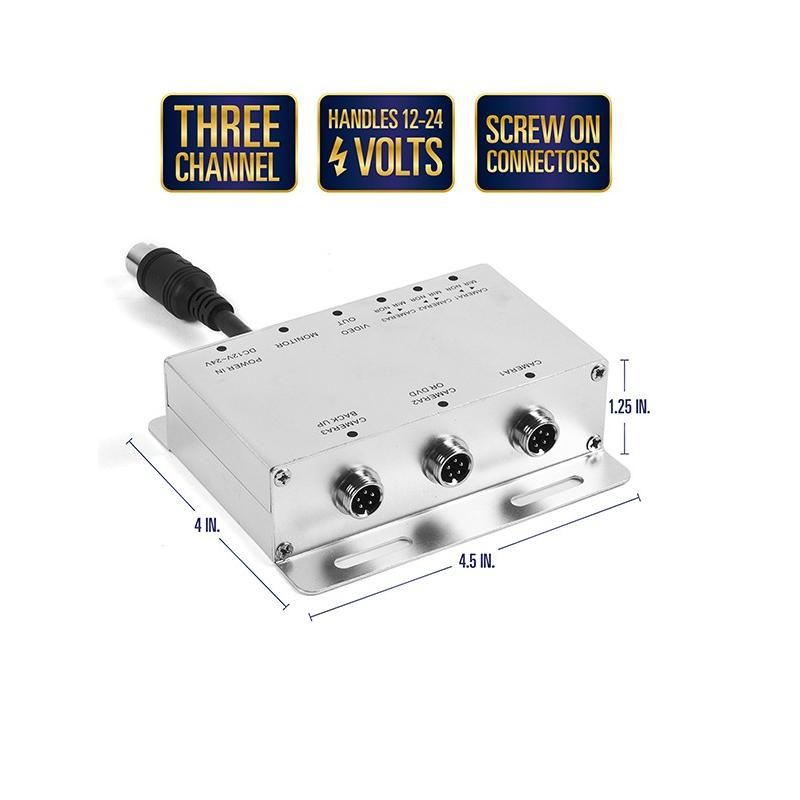

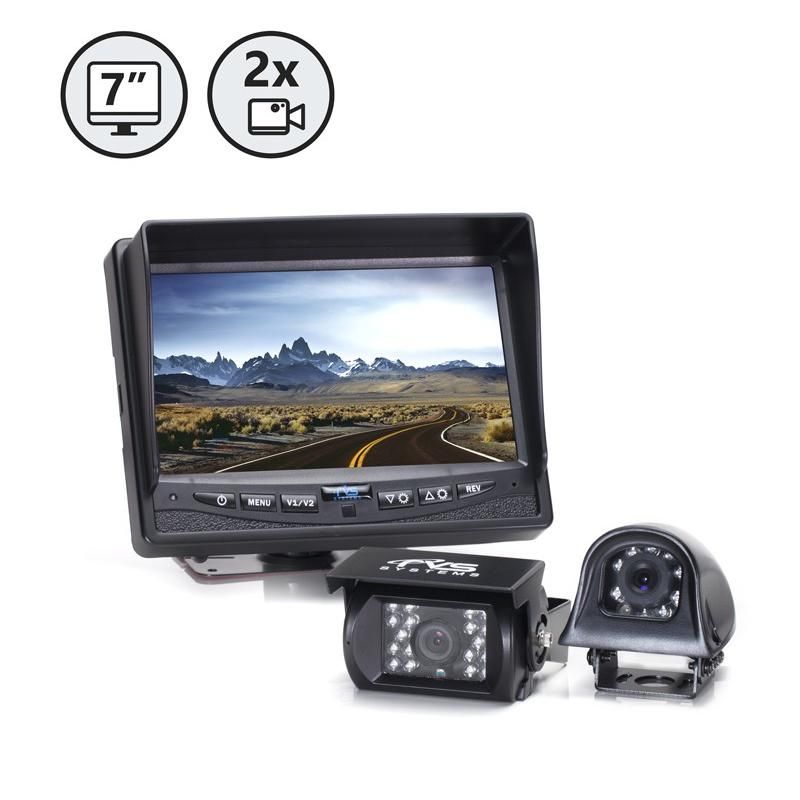

The RVS-7706135 from RVS is a 620 TVL Backup Camera System with Side Camera, 2.5mm Lens. This 2 camera system is complete with a crystal clear 7" LED Digital Panel monitor with mirror image capability, a 3 channel multiplexer with automatic system switch, two (2) 130° CCD cameras with 50 foot infra-red night vision and all the wires, connectors and mounts you will need. The system is completely weatherproof with an IP69K rating, strong and reliable, shock resistant, with a 20G vibration rating (highest in the industry).
RVS RVS-7706135 Backup Camera System Features
- Backup Camera System: Comes with 1 Backup and 1 Side Camera for comprehensive coverage and enhanced safety while reversing.

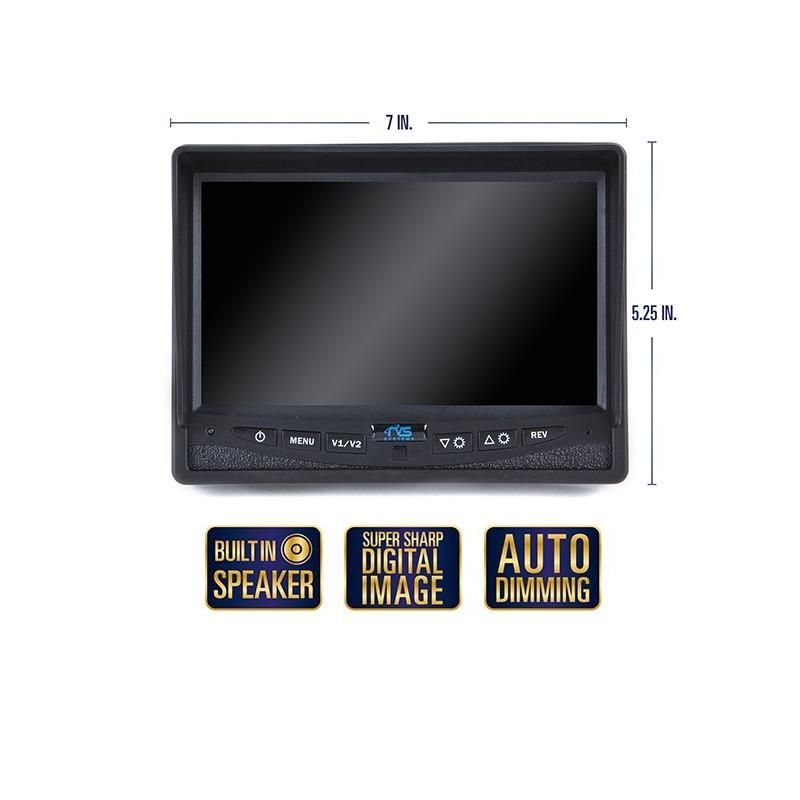

- High-Quality Display: Features a 7" or 9" LED Digital Panel Display (options available), offering clear visuals for easy monitoring.

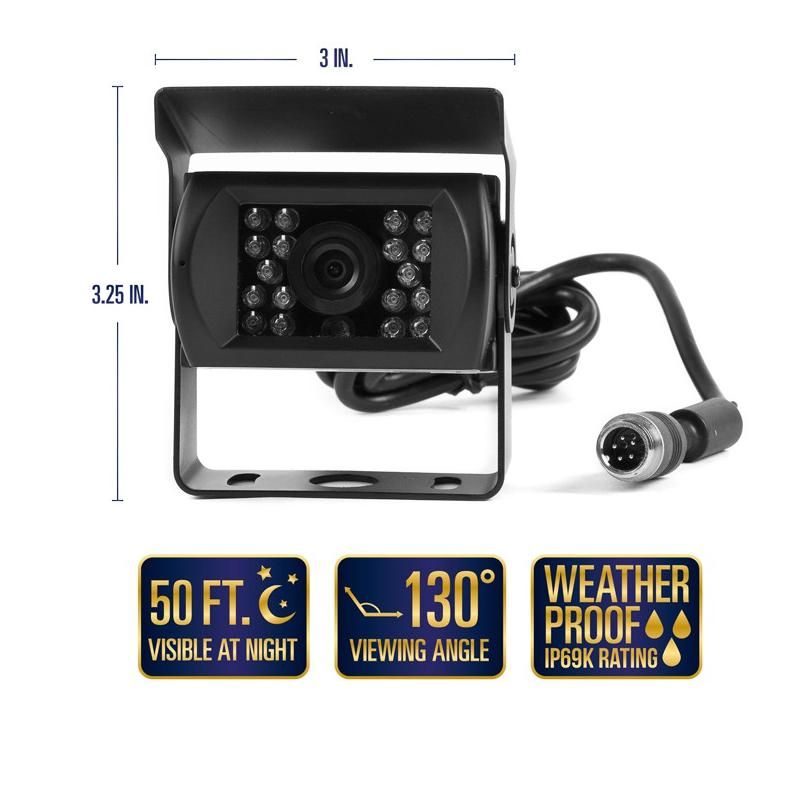

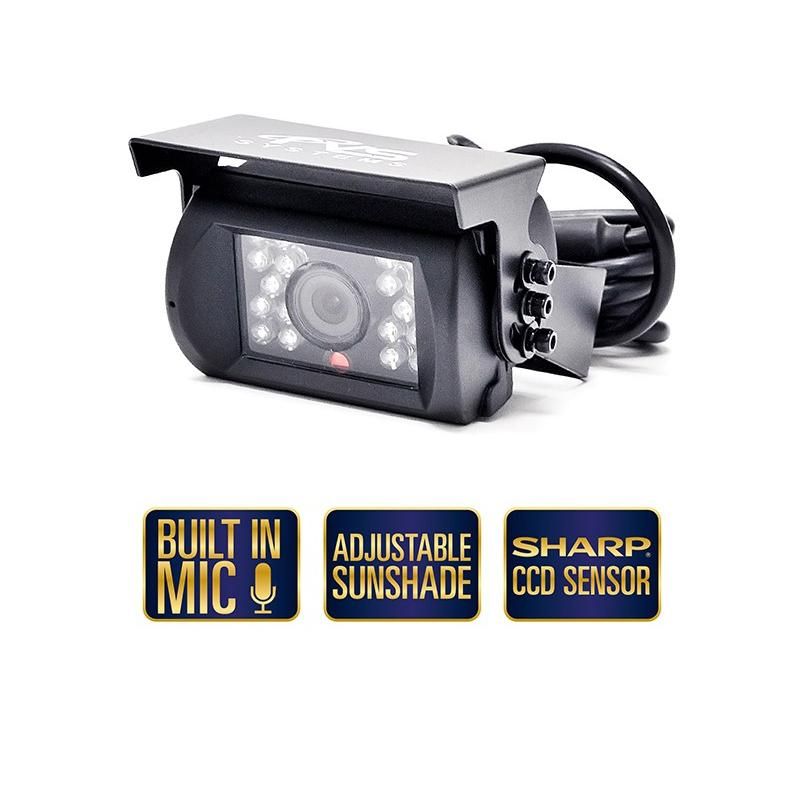

- Waterproof Cameras: The cameras are built to withstand moisture and include Infra-Red Night Vision for improved visibility in low light conditions.
- Optional Quad View Upgrade: Allows for an upgrade option for a quad view feature, providing flexibility in viewing angles (please check item options).
- Built-in Audio: Incorporates a mic and speaker for audio assistance during reverse maneuvers, enhancing user experience.
RVS RVS-7706135 Detailed Specifications
| Product Type | Backup Camera System |
| Model | RVS-7706135 |
| Camera Resolution | 620 TVL |
| Camera Lens | 2.5mm |
| Display Size | 7" or 9" (options available) |
| Monitor Type | LED Digital Panel |
| Field of View | 130° CCD Cameras |
| Night Vision | Infra-Red up to 50 feet |
| Weatherproof Rating | IP69K |
| Shock Resistance | 20G vibration rating (highest in industry) |
| Additional Features | Built-in mic and speaker, 3 channel multiplexer with automatic system switch |
SKU  | RVS-7706135 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.5mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp Color CCD |
| Image Pixels Total | 410,000 pixels |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +80°C |
| Dimensions (W x H) | Backup Camera: (with bracket) 3.25" (H) x 3" (L) x 1.5" (D) , Side Camera: 1.85" (H) x 2.5" x (L) 3" (D) |
| S/N Ratio | More Than 48db |
| Signal System | NTSC / PAL |
| Video Output | 1Vp-p 75 Ω |
| Weatherproof | IP69K |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 18 |
| Audio | Yes |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
