RVS Systems RVS-2CAM-A-14 Wireless Backup Camera with 7" Dual Screen Display, Both Side Cameras, 2.1mm Lens
- Digital Wireless Connection - Up to 70ft
- Dual Screen - Can Connect Two Cameras
- Auto Pair - Pair The System Without Leaving The Cab
- 130° Ultra Wide Viewing Angle

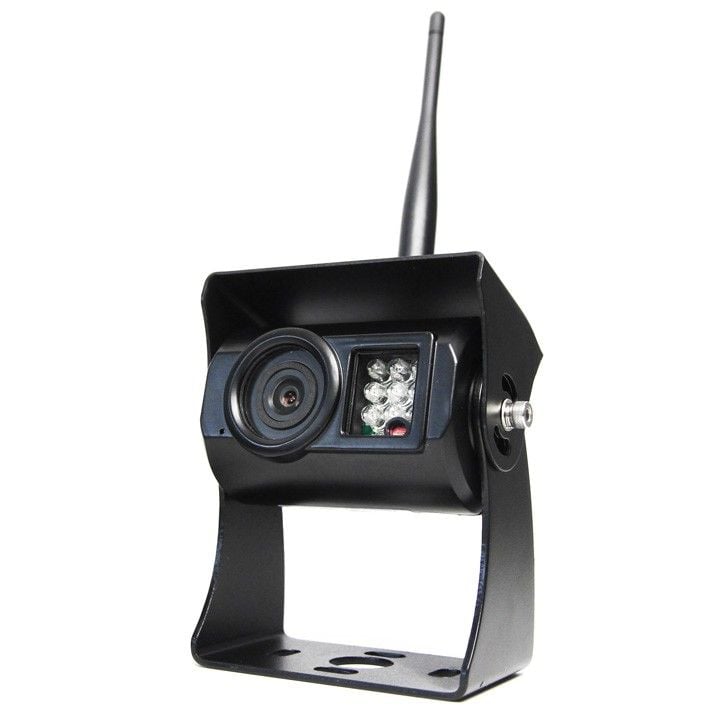

- Waterproof Backup Camera with Infra-Red Night Vision
The RVS-2CAM-A-14 from RVS Systems is a wireless dual camera system comes with a digital wireless connection and a split screen monitor to view two cameras at the same time. Built-in auto pair enables you to pair the wireless system without having to leave your cab. With this new wireless technology, we guarantee no interference for up to 70ft!

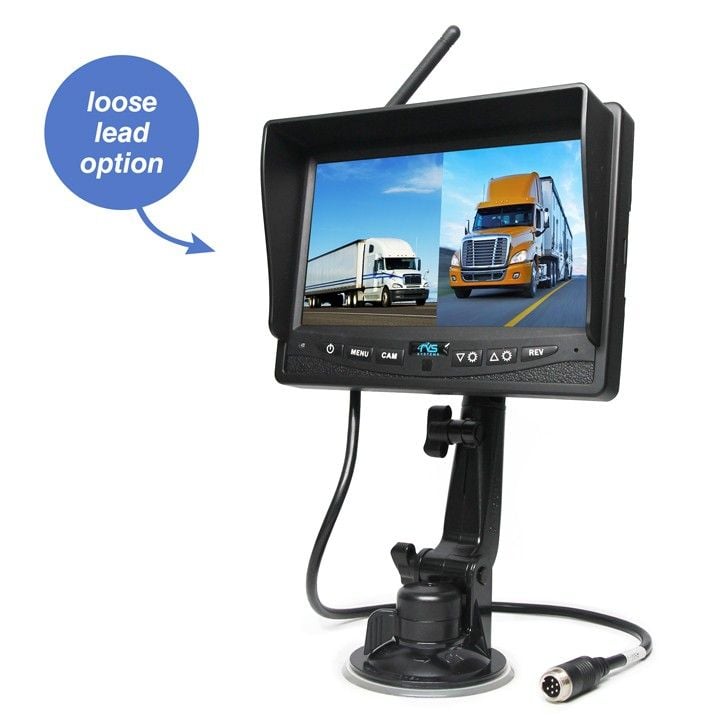

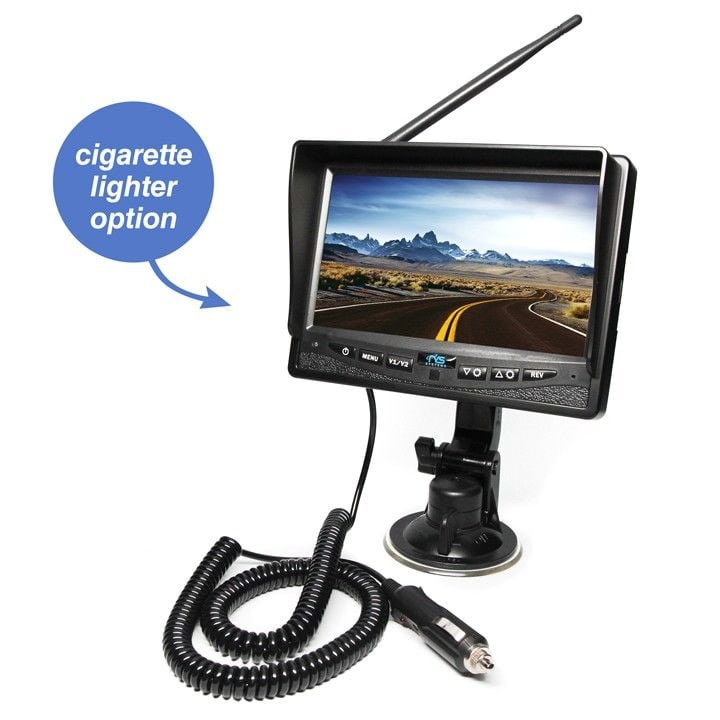

In this configurable product, use the sidebar options to configure a wireless backup camera system just the way you like. Choose between powering your monitor with a cigarette lighter plug or with loose wires straight to the fuse box and select your desired camera setup as well. All cameras are completely waterproof and come with infra-red night vision. The RVS-2CAM has two viewing options. The camera view can be triggered when the vehicle is put into reverse, or remain on continuously.

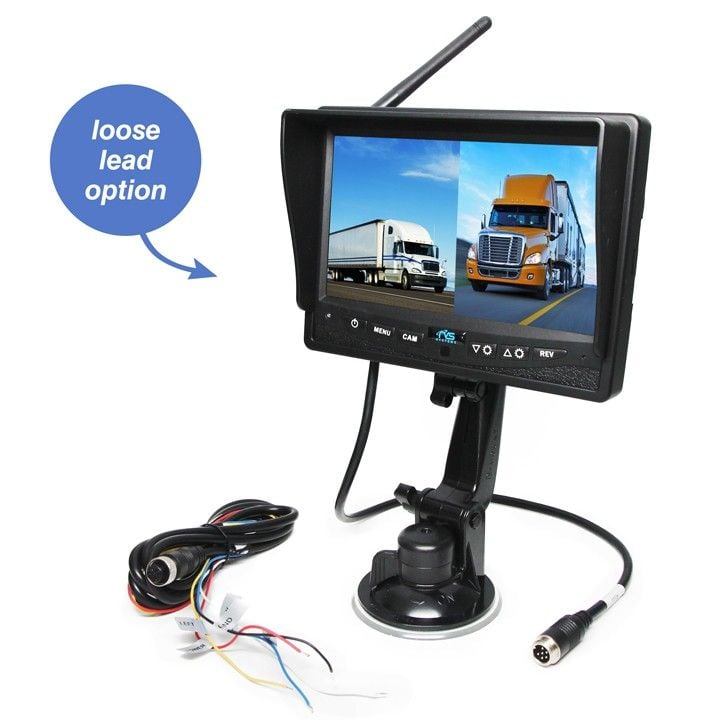

The RVS-2LW-MNTR is a 7" TFT LCD Monitor.

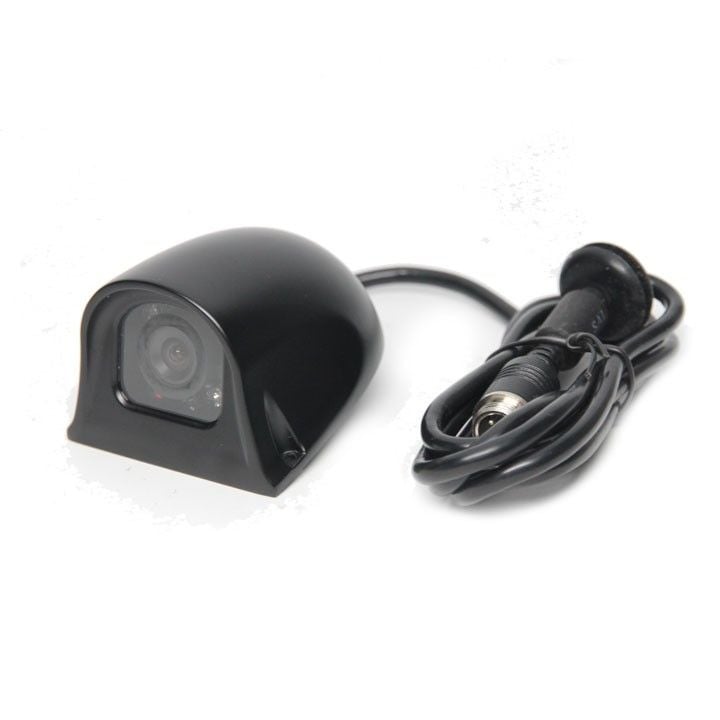

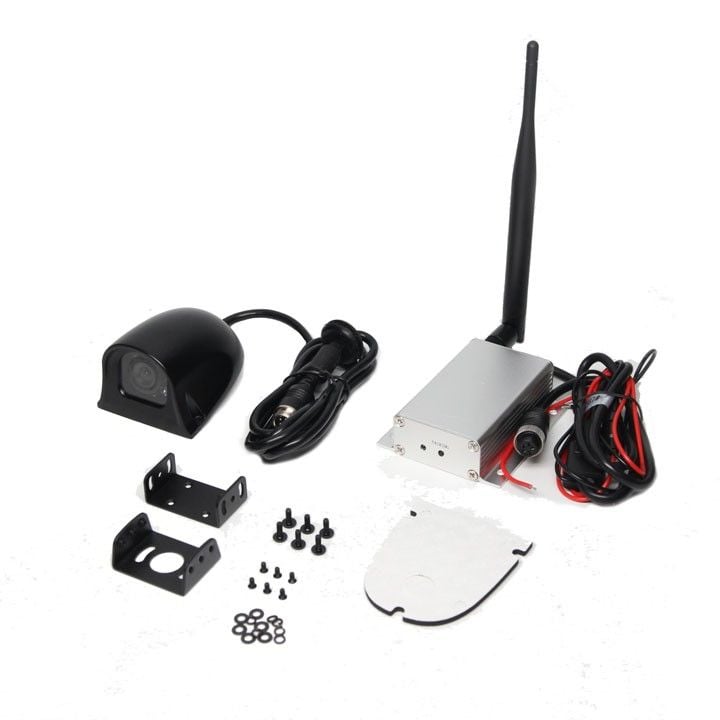

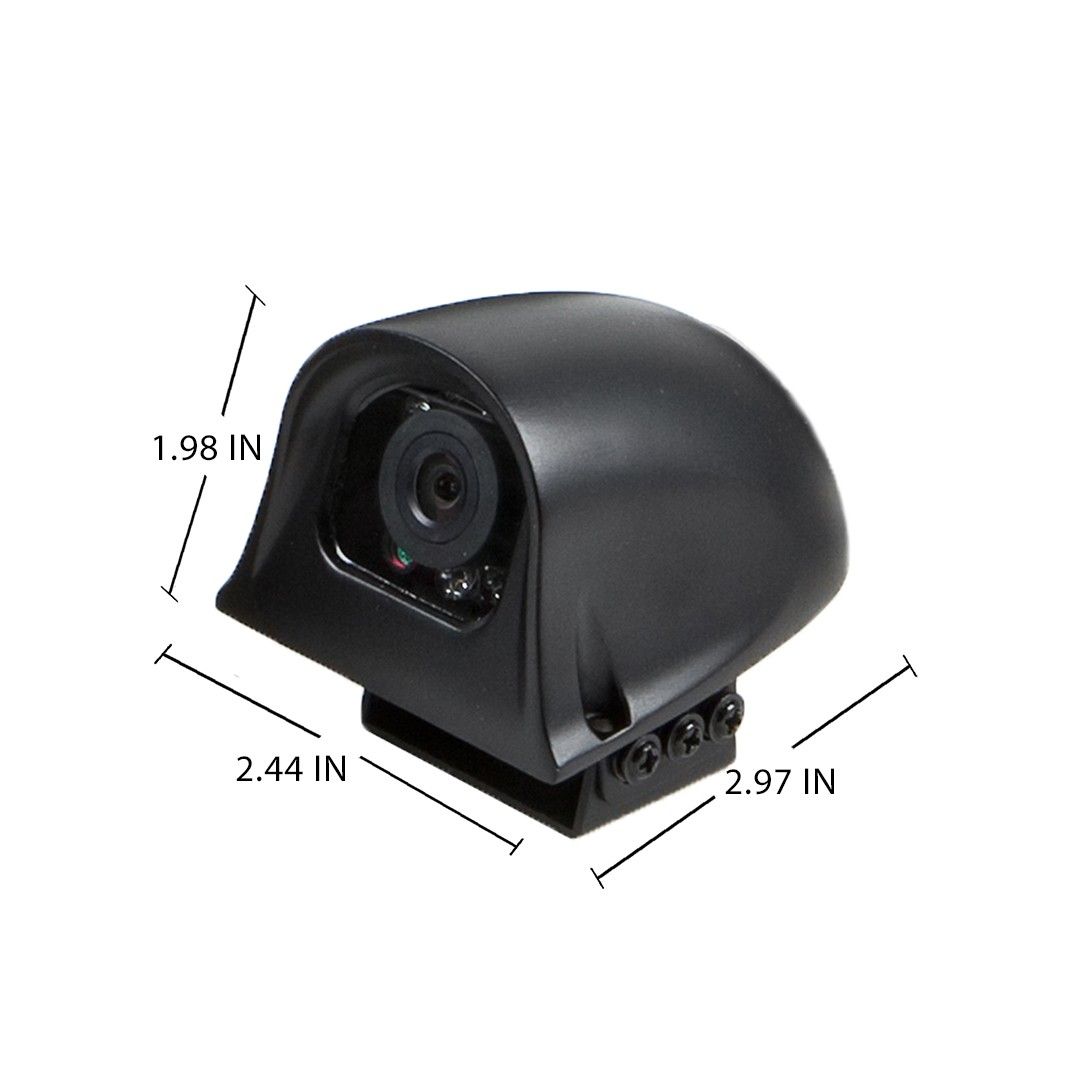

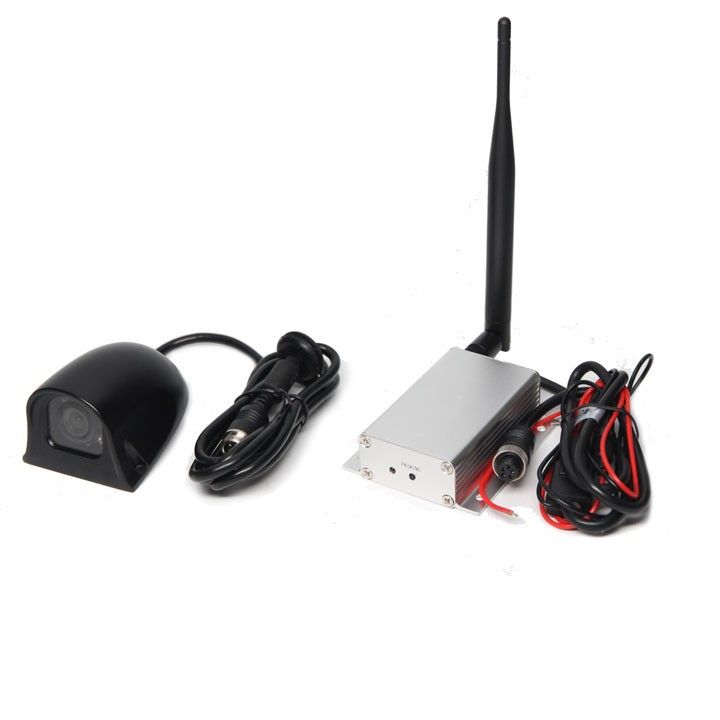

The RVS-775L and RVS-775R are the 120° angle side cameras which are the clearest and greatest cameras available on the market today. It boasts a 250,000 pixel 2.1 mm lens with 9 infra-red illuminators which enables you to see in total darkness. The casing of the camera has an IP68 rating which can withstand all weather conditions.
Features
- Digital Wireless Connection: Up to 70ft, ensuring a reliable connection without interference.
- Dual Screen: Can connect two cameras simultaneously for enhanced rear and side visibility.
- Auto Pair: Pair the system without leaving the cab for easy setup.
- 130° Ultra Wide Viewing Angle: Provides a broader field of view for safer navigation.
- Waterproof Backup Camera: Equipped with infra-red night vision for effective use in all weather conditions.
RVS Systems RVS-2CAM-A-14 Detailed Camera Specifications
| Feature | Details |
| Model | RVS-2CAM-A-14 |
| Monitor Size | 7" TFT LCD |
| Support Cameras | Two Cameras (RVS-775L & RVS-775R) |
| Lens Specification | 2.1 mm, 250,000 pixels |
| Night Vision | Infra-red with 9 illuminators |
| Viewing Angle | 120° Angle for superior visibility |
| Water Resistance | IP68 rated, suitable for all weather |
| Power Options | Cigarette lighter or direct to fuse box |
| Wireless Range | Up to 70ft without interference |
SKU  | RVS-2CAM-A-14 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Gamma Correction | R=0.45 to 1.0 |
| Image Device | 1/4" Sharp Color CCD |
| IR Distance | Backup Camera: 15.24m/50ft, Side Camera: 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +80°C |

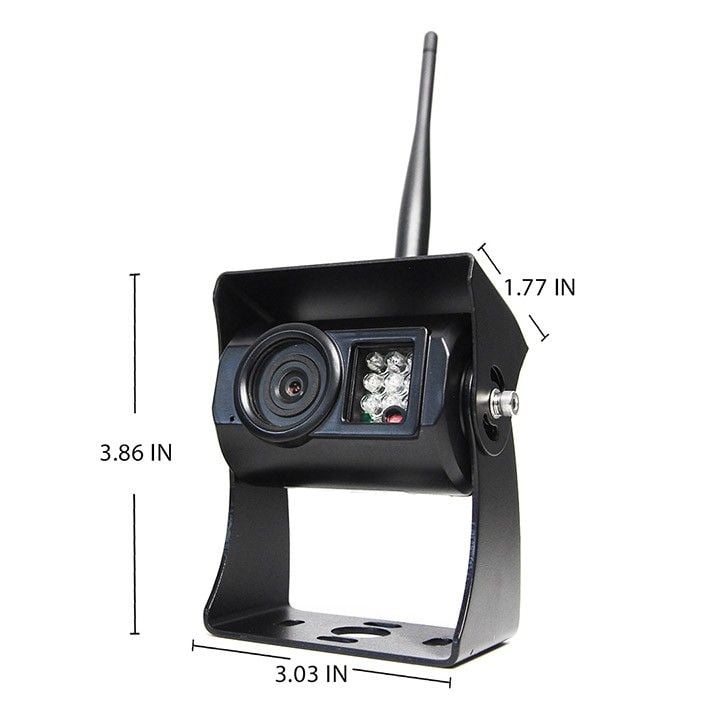

| Dimensions (W x H) | Backup Camera: 3.86" (H) x 3.03" (L) x 1.77" (D), Side Camera: 1.98" (H) x 2.44" (L) x 2.97" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
RVS-2CAM-A-14-Specsheet RVS-775L-Specsheet RVS-775R-Specsheet RVS-2CAM-A-14-Installation-Manual
