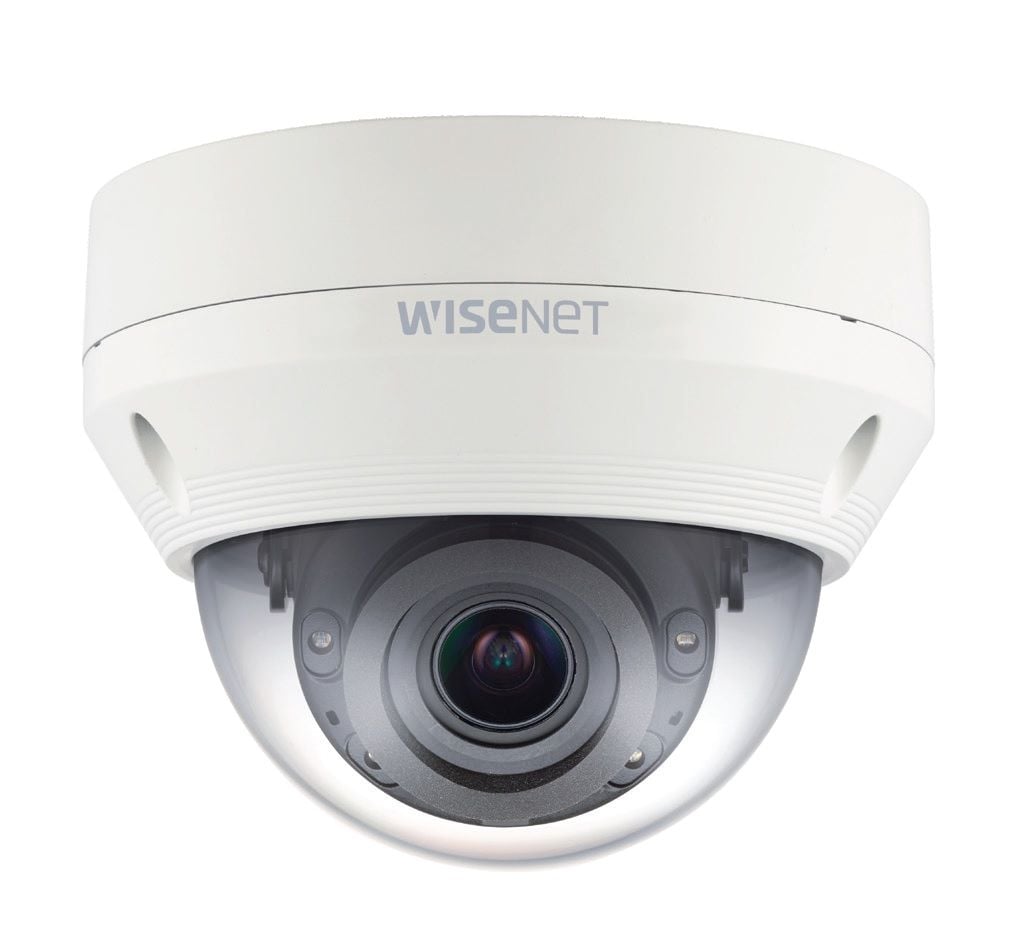

Samsung QNV-8080R 5 Megapixel Network IR Vandal Resistant Dome Camera, 3.2-10mm Lens

Model No
QNV-8080R
$360.67
Qty:
Product Highlights
    • 5 Megapixel resolution
    • 3.2~10mm (3.1x) motorized varifocal lens
    • 30fps@all resolutions (H.265/H.264)
    • H.265, H.264, MJPEG codec supported, Multiple streaming
    • Day & Night (ICR), WDR (120dB)

The QNV-8080R from Hanwha Vision's Q Series affordable network camera line is a robust 5 Megapixel Outdoor Vandal Resistant Dome camera designed for high-performance surveillance. It features advanced WiseStream II compression technology and supports triple codec formats (H.265/H.264/MJPEG) for efficient video management. With its versatile 3.2-10mm motorized varifocal lens and powerful IR capabilities, the camera ensures clear imaging in various lighting conditions. Additional features such as Intelligent Video Analytics and Hallway View make it ideal for a range of security applications.

Hanwha Vision QNV-8080R Camera Features

  • 5 Megapixel resolution provides crystal-clear images for detailed surveillance.
  • 3.2~10mm (3.1x) motorized varifocal lens allows for flexible field of view adjustments as per surveillance needs.
  • 30fps@all resolutions (H.265/H.264) ensures smooth video playback and recording.
  • Supports multiple codecs (H.265, H.264, MJPEG) for versatile streaming options, optimizing bandwidth usage.
  • Day & Night (ICR) and WDR (120dB) enhance visibility in varying light conditions, ensuring reliable performance.
  • Intelligent Video Analytics features like defocus detection and tampering alerts improve security monitoring.
  • micro SD (up to 128GB) memory slot with PoE/12V DC offers flexible storage and power options.
  • IR viewable length of 30m guarantees night-time visibility for enhanced security.
  • IP66 and IK10 ratings ensure durability against harsh weather and vandalism.
  • Hallway view support optimizes surveillance in narrow spaces.
  • Analog video out and simple focus feature streamline installation and setup.
  • LDC (Lens Distortion Correction) support ensures high-quality image output without distortion.

Detailed Camera Specifications

Camera Type5 Megapixel Network IR Vandal Resistant Dome
Lens3.2-10mm motorized varifocal lens
Resolution5 Megapixel
Frame Rate30fps@all resolutions
Codec SupportH.265, H.264, MJPEG
IR Distance30m
IP RatingIP66
IK RatingIK10
Power SupplyPoE / 12V DC
Storagemicro SD (up to 128GB)
WDR120dB True WDR
Intelligent AnalyticsDefocus detection, Motion detection, Tampering alerts
SKU  QNV-8080R
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Hanwha Vision
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    5 Megapixel
Lens Type    Varifocal
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  PoE
Automatic Gain Control (AGC)    Low / Middle / High
Dimensions (W x H)  Ø137.0 x 106.1mm (Ø5.39 x 4.18")
Electronic Shutter    Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Image Device    1/2.8" 5 MP CMOS
Minimum Scene Illumination  Color: 0.15Lux (F1.6, 1/30sec), BW: 0Lux (IR LED on)
Operating Humidity    Less than 90% RH
Operating Temperature    -30°C ~ +55°C (-22°F ~ +131°F)
OSD Menu    English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
Power Consumption  PoE: Maximum 8.9W, typical 6.6W
Privacy Zone    6ea, rectangular zones
Protocols  IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Weatherproof    IP66
Zoom Ratio    3.1x
Digital Noise Reduction    SSNR
Angle of View    H: 100.3°(Wide)~31.2°(Tele) / V: 72.3°(Wide)~23.5°(Tele) / H: 133.1°(Wide)~38.8°(Tele)
Motion Detection Tracking    4ea, polygonal zones
Back Light Compensation  BLC, WDR, SSDR
Automatic White Balance    ATW / AWC / Manual / Indoor / Outdoor
IR Distance  30m/98.42ft
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
