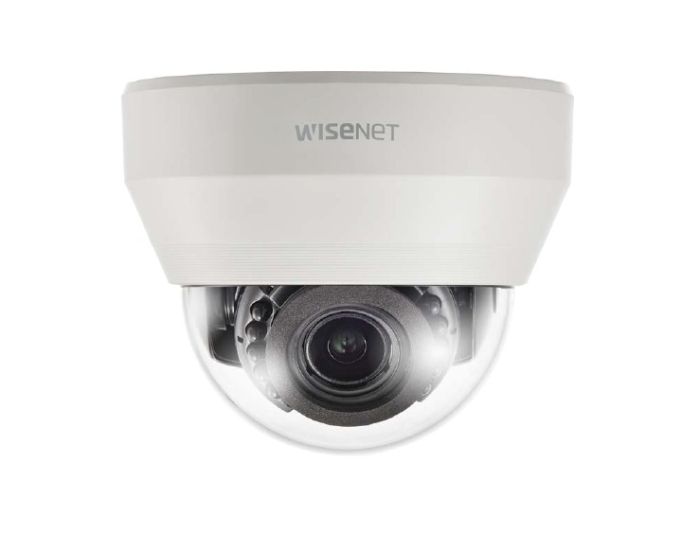

Samsung HCD-6080R 1080p Analog HD IR Dome Camera, Lens 2.8-12mm
SKU
HCD-6080R
Model No
HCD-6080R
$233.86
Product Highlights
- Full HD resolution
- [email protected](Color), 0Lux(B/W : IR LED on)
- 2.8~12mm(4.3x) varifocal lens
- Day & Night(ICR), WDR(120dB)
- SSNR, Motion detection
Speak to an expert
1080p Analog HD IR Dome Camera, Lens 2.8-12mm
- The HCD-6080R from Hanwha Vision is a high-performance 1080p Analog HD IR Dome Camera that offers superior image quality and versatility with its 2.8-12mm varifocal lens. Designed for both indoor and outdoor use, this camera features advanced night vision capabilities and robust weather resistance, making it perfect for surveillance in various environments.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Coaxitron
Day/Night Vision
3D DNR
Motion Detection
On Screen Display Menu
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| Full HD resolution | SSNR, Motion detection |
| [email protected] (Color), 0Lux (B/W: IR LED on) | IR viewable length: 20m, IP66, IK10, Dual power |
| 2.8~12mm (4.3x) varifocal lens | Transmission ditance Max.500m |
| Day & Night (ICR), WDR (120dB) | Easy installation (Plug & play), Dual power, RS-485 |
Additional Hanwha Vision Products
SKU  | HCD-6080R |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Coaxitron, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | HD-TVI |
| Resolution | 1080p |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 61~100 Feet |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | Dual Voltage |
| Electronic Shutter | 1sec~ 1/12,000sec |
| Image Device | 1/2.8" 2M CMOS |
| Image Pixels Total | 2,000(H) x 1,121(V) 2.24M pixels |
| Image Pixels-Effective | 1,984(H) x 1,105(V) 2.19M pixels |
| IR Distance | 20m/65.62ft |
| Minimum Scene Illumination | Color : 0.11Lux (F1.4) B/W : 0Lux(IR LED on) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Dimensions (W x H) | Ø119.8 x 98.5mm (4.72" x 3.88") |
| OSD Menu | Multi-language Support(16)English, Japanese, Spanish, French, Portuguese, Korean, German, Italian,Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
| Power Consumption | 6W |
| Privacy Zone | Off / On (4zones rectangle) |
| Protocols | NTSC/PAL : Pelco-C (Coaxitron) AHD : ACP(AHD Coax Protocol) |
| S/N Ratio | 52dB (AGC off, Weight on) |
| Scanning System | Progressive Scan |
| Video Output | BNC(AHD / TVI / CVI / CVBS Selectable) DIP connector type(for installation) |
| Weatherproof | IP66 |
| Zoom Ratio | 4.3x |
| Digital Noise Reduction | SSNR ( Off / On) |
| Angle of View | H : 103.8Ëš(Wide) ~ 32.4Ëš(Tele) / V : 53.7Ëš(Wide) ~ 18.4Ëš(Tele) D : 121.9Ëš(Wide) ~ 37.1Ëš(Tele) |
| Backlight Compensation | Off / User BLC / HLC |
| Rotation Angle | 0° ~ 355° |
| Automatic White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
| Auto Gain Control | Off / Low / Middle / High / Very High |
| Motion Detection | Off / On(4 zones) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Coaxitron | Yes |
