Samsung XNV-8081Z 5 Megapixel Vandal-Resistant Outdoor Network Dome PTRZ Camera, 3.6-9.4mm Lens

SKU
XNV-8081Z
Model No
XNV-8081Z
$1,202.50
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $400* Free Shipping
Over $400*
Product Highlights
  • 5 Megapixel resolution
  • [email protected] (Color), [email protected] (B/W) (XNV-8081Z)
  • Day & Night (ICR), WDR (150dB / 120dB)
  • Modular structure and motorized PTRZ
  • Hallway View, WiseStreamII Support

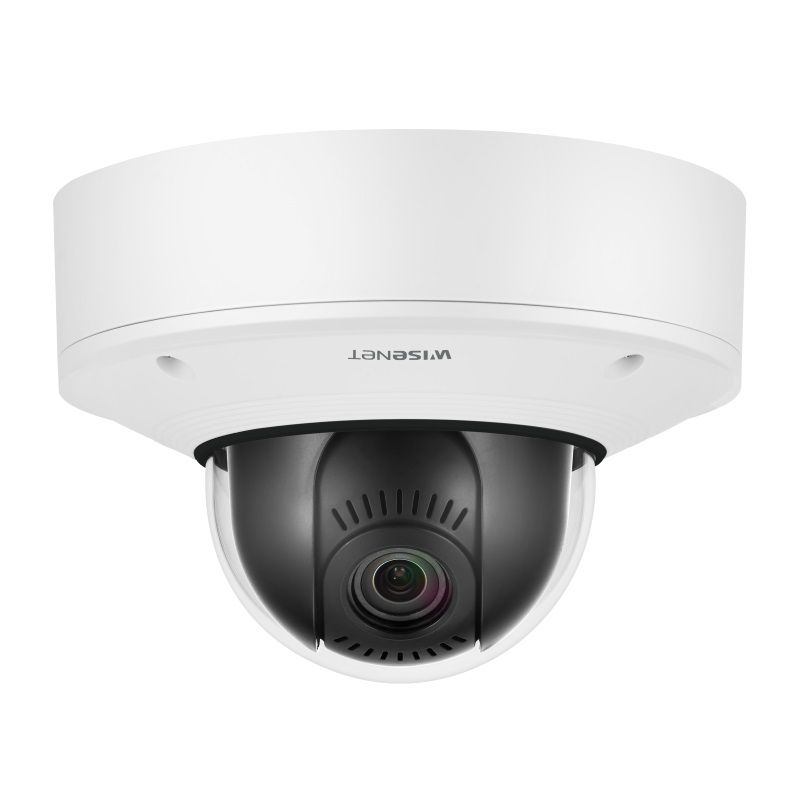

The Hanwha Vision XNV-8081Z is a cutting-edge 5 Megapixel vandal-resistant outdoor network dome camera designed for reliability and high performance in any environment. With features like a versatile motorized zoom lens, advanced video analytics, and robust weather resistance, this camera ensures comprehensive surveillance coverage while minimizing bandwidth and storage needs. Its modular structure simplifies installation and adjustments, making it an ideal choice for security professionals seeking both quality and convenience.

Hanwha Vision XNV-8081Z Camera Features

  • 5 Megapixel resolution provides crystal-clear images for enhanced identification and monitoring.
  • Low-light performance at 0.07Lux in color and 0.007Lux in B/W ensures effective operation in various lighting conditions.
  • Day & Night functionality with ICR and impressive WDR capabilities allows for clear images in challenging lighting environments.
  • Modular structure and motorized PTRZ facilitate easy installation and precise adjustments post-installation.
  • Hallway View feature optimizes the camera's field of view for narrow spaces, maximizing coverage.
  • WiseStream II support enables efficient video compression, reducing bandwidth and storage requirements significantly.
  • Advanced video and audio analytics enhance security monitoring with features like sound classification and shock detection.
  • IP67/IP66/IP6K9K, IK10+, and NEMA 4X ratings ensure durability against harsh weather and vandalism.
  • Multiple power options including PoE, 12VDC, and optional 24VAC provide flexibility in installation.

Detailed Camera Specifications

Camera TypeOutdoor Vandal-Resistant Dome
Resolution5 Megapixels
Lens TypeMotorized Vari-Focal (3.6-9.4mm)
Field of View102.5°~38.7°
Low-Light Performance[email protected] (Color), [email protected] (B/W)
WDR120dB
Power Supply12VDC/PoE, Optional 24VAC
Operating Temperature-50°C ~ +60°C (-58°F ~ +140°F)
Weather ResistanceIP67/IP66/IP6K9K, IK10+
Additional FeaturesDIS, Audio Playback, Video Analytics
SKU  XNV-8081Z
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Hanwha Vision
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    5 Megapixel
Lens Type    Varifocal
Lens Size    3.6-9.4mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Automatic Gain Control (AGC)    Low / Middle / High
Dimensions (W x H)  Ø180x125mm (Ø7.1x4.9")
Electronic Shutter    Minimum / Maximum / Anti flicker (2~1/12,000sec)
Image Device    1/1.8" 6MP CMOS
Minimum Scene Illumination  Color : 0.07Lux (F1.2, 1/30sec), BW : 0.007Lux (F1.2, 1/30sec)
Operating Humidity    Less than 90% RH
Operating Temperature    -50°C ~ +60°C (-58°F ~ +140°F)
OSD Menu    English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Power Consumption  PoE : Max 12.3W, typical 5.47W, 12VDC : Max 10W, typical 3.75W, 24VAC : Max 12.3W, typical 5.58W
Privacy Zone    32ea, polygonal zones, Color: Grey/Green/Red/Blue/Black/White, Mosaic
Protocols  IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Weatherproof    IP67
Zoom Ratio    2.6x
Digital Noise Reduction    SSNR V
Angle of View    H : 102.5°(Wide)~38.7°(Tele), V : 74.2°(Wide)~29.0°(Tele), D : 135.5°(Wide)~48.6°(Tele)
Motion Detection Tracking    8ea, 8point polygonal zones
Back Light Compensation  BLC, HLC, WDR, SSDR
Automatic White Balance    ATW / AWC / Manual / Indoor / Outdoor
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
