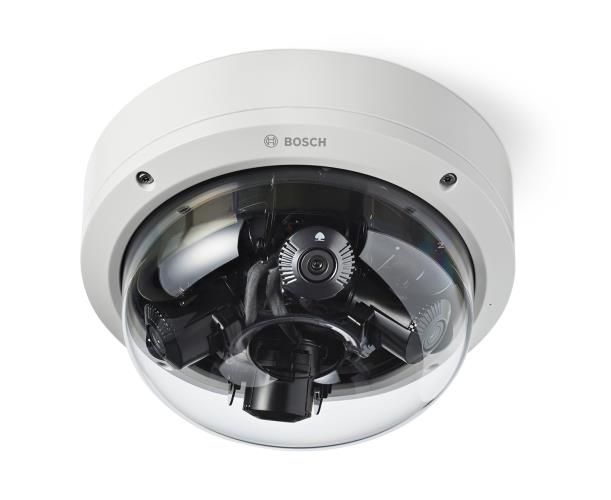

IQsight by Bosch NDM-7703-A 20 Megapixel Network Dome Camera with 3.7-7.7mm Lens
SKU
NDM-7703-A
Model No
NDM-7703-A
$2,207.42
Product Highlights
- Four 5 MP imagers at 30 fps in one camera on a single IP address
- Easy and flexible installation with four motorized zoom/focus lenses
- High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
- Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
Speak to an expert
The NDM-7703-A from Bosch is a powerful 20 megapixel network dome camera designed for high performance and flexibility. With its advanced imaging capabilities and intelligent features, this camera offers exceptional image quality and reliable security surveillance solutions.
Bosch NDM-7703-A Camera Features
- Four 5 MP imagers: Captures footage at 30 fps across four channels, providing comprehensive coverage through a single IP address, enhancing efficiency and reducing installation complexity.
- Motorized zoom/focus lenses: Offers easy and flexible installation, allowing users to adjust the lens remotely for optimal field of view and focus.
- High Dynamic Range (HDR): Ensures visibility in both bright and dark areas of the scene, making it ideal for varied lighting conditions and maximizing detail retention.
- Intelligent Video Analytics: Built-in capabilities for triggering alerts and quick data retrieval, allowing for proactive monitoring and enhancing response times to potential incidents.
Detailed Camera Specifications
| Model | Bosch NDM-7703-A |
| Megapixels | 20 MP |
| Lens | 3.7-7.7mm |
| Imagers | Four 5 MP |
| Frame Rate | 30 fps |
| IP Addressing | Single IP address |
| Features | Motorized zoom/focus, HDR, Intelligent Video Analytics |
SKU  | NDM-7703-A |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Bosch |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 20 Megapixel |
| Lens Type | Varifocal |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Dimensions (W x H) | 220 x 111 mm (8.7 x 4.4 in.) |
| Electronic Shutter | Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable; Default shutter, Maximum shutter |
| Image Device | 4x 1/2.7 inch CMOS |
| Image Pixels-Effective | 4x 2592 (H) x 1944 (V) |
| Minimum Scene Illumination | Color: 0.091 lx, Mono: 0.012 lx |
| Operating Humidity | 5% to 93% RH non condensing, 100% RH condensing |
| Operating Temperature | -50 °C to +55 °C (-58 °F to +131 °F) |
| Power Consumption | PoE+: 18.02Â W, 24Â VAC: 1.1Â A / 16.0Â W |
| Privacy Zone | Eight independent areas per imager, fully programmable |
| S/N Ratio | >50Â dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | Dynamic noise reduction with 3 levels: Low, Medium and High |
| Angle of View | Wide: 85.6º x 62.4º (H x V), Tele: 39.0º x 29.2º (H x V) |
| Automatic White Balance | 2300 to 10000K, 3 automatic modes (Basic, Standard, Sodium vapor), Manual mode and Hold mode |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
