Bosch NDM-7703-A-RB 20 Megapixel Network Dome Camera with 3.7-7.7mm Lens - REFURBISHED
SKU
NDM-7703-A-RB
Model No
NDM-7703-A-RB
$2,231.00
Product Highlights
- Four 5 MP imagers at 30 fps in one camera on a single IP address
- Easy and flexible installation with four motorized zoom/focus lenses
- High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
- Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
Speak to an expert
Refurbished/Open Box Items have been thoroughly inspected and Pre-Tested to meet Manufacturer Specifications and are guaranteed to be sold as new and in excellent working condition. Because these Refurbished/Open Box Items are Inspected and Pre-Tested, these open box items continue to carry a FULL 1-year manufacturer's warranty, same as a brand new unit.

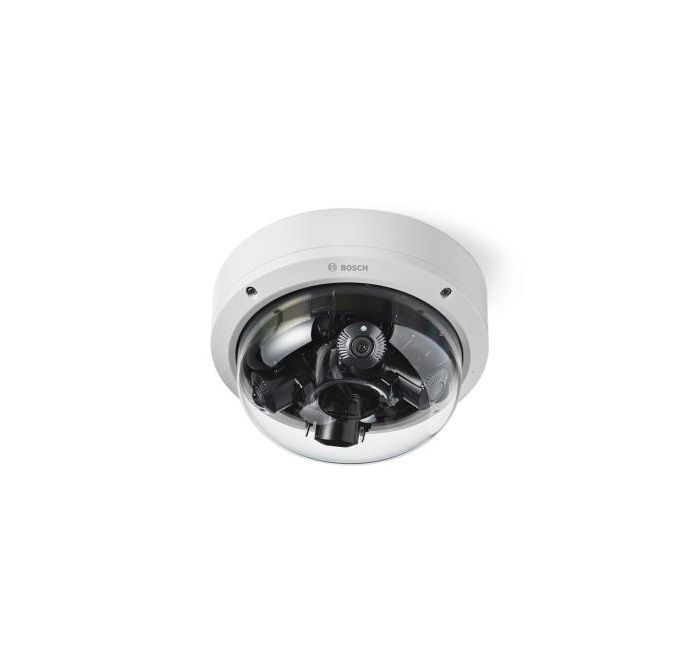

The NDM-7703-A-RB from Bosch is a 20 megapixel network dome camera with 3.7-7.7mm lens.
Bosch NDM-7703-A-RB Camera Features
- 4 Cameras in 1: Four 5 MP imagers at 30 fps in one camera on a single IP address, reducing hardware costs and simplifying installation.
- Flexible Installation: Easy and flexible installation with four motorized zoom/focus lenses, allowing for various mounting options and configurations.
- Superior Image Quality: High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene, ensuring clear and comprehensive surveillance.
- Intelligent Insights: Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data, enhancing security response times.
Bosch NDM-7703-A-RB Detailed Specifications
| Camera Resolution | 20 Megapixels |
| Lens Type | 3.7-7.7mm Motorized Zoom/Focus |
| Frame Rate | 30 fps |
| Image Sensor | Four 5 MP sensors |
| Dynamic Range | High Dynamic Range (HDR) |
| Warranty | 1-Year Manufacturer's Warranty |
| Installation Type | Network Dome |
SKU  | NDM-7703-A-RB |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Bosch |
| Connection Type | Wired |
Infrared Distance  | Non Infrared |
| Resolution | 20 Megapixel |
| Lens Type | Varifocal |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Dimensions (W x H) | 220 x 111 mm (8.7 x 4.4 in.) |
| Electronic Shutter | Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable; Default shutter, Maximum shutter |
| Image Device | 1/2.7 inch CMOS |
| Image Pixels-Effective | 4x 2592 (H) x 1944 (V) |
| Minimum Scene Illumination | Color 0.0077 lx, Monochrome 0.0008 lx |
| Operating Humidity | 5% to 93% RH non condensing, 100% RH condensing |
| Operating Temperature | -50 °C to +55 °C (-58 °F to +131 °F) |
| Power Consumption | PoE+: 18.02 W, 24 VAC: 1.1 A / 16.0 W |
| Privacy Zone | Eight independent areas per imager, fully programmable |
| S/N Ratio | >50Â dB |
| Weatherproof | IP66 |
| Angle of View | Wide: 81.9º x 59.8º (H x V), Tele: 39.5º x 28.9º (H x V) |
| Automatic White Balance | 2300 to 10000K, 3 automatic modes (Basic, Standard, Sodium vapor), Manual mode and Hold mode |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
