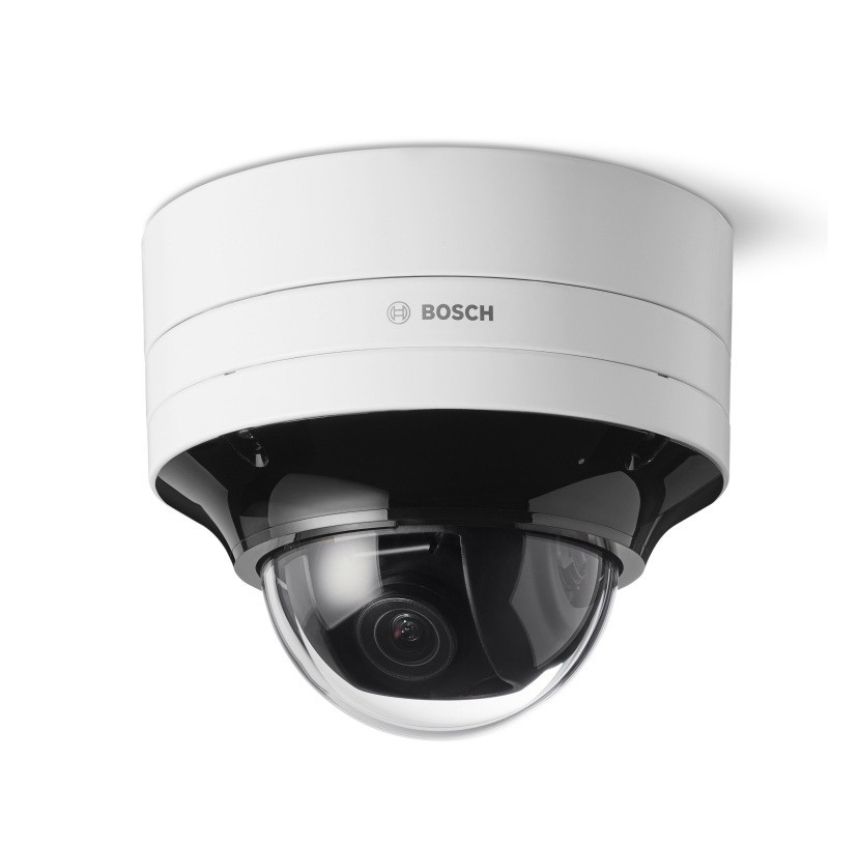

Radionix by Bosch NDE-8703-RL 6 Megapixel Network IP IR Dome PTRZ Camera with 3.9-10mm Lens
SKU
NDE-8703-RL
Model No
NDE-8703-RL
$1,739.56
Product Highlights
- Remote configuration and commissioning. Pan, Tilt, Roll and Zoom (PTRZ) remotely to set the camera to the required field of view, without having to touch the camera or lens
- Starlight technology with 1/1.8" HD 6MP sensor for next level low-light performance with maximum detail
- Split IR design with intelligent IR for illumination up to 30m (98ft)
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
- Electronic image stabilization (EIS) measures the frequency and amplitude of the device’s vibrations to offset their impact on the image
Speak to an expert
The Bosch FLEXIDOME 8100i 6MP camera combines advanced starlight and HDR technology to deliver exceptional image quality, even in low-light and dynamic lighting conditions. With its remote commissioning capabilities, it simplifies installation and setup, making it ideal for a variety of applications, including government, transportation, and city surveillance. Additionally, built-in Intelligent Video Analytics Pro ensures intelligent detection of persons and vehicles, while its rugged design guarantees reliability in diverse environments.
Bosch FLEXIDOME 8100i Camera Features
- Remote commissioning: Configure the camera's Pan, Tilt, Roll and Zoom (PTRZ) settings remotely, streamlining installation without physical contact.
- Starlight technology: Equipped with a 1/1.8" HD 6MP sensor, providing superior low-light performance to capture maximum detail even in minimal lighting conditions.
- Intelligent IR: Split IR design enables illumination up to 30m (98ft), ensuring wide coverage even at night.
- IVA Pro: Advanced video analytics for reliable detection of persons and vehicles in varied environments, from sterile to busy areas, enhancing security measures.
- Electronic Image Stabilization (EIS): Compensates for camera vibrations to maintain clear images, ensuring quality even when in motion.
Detailed Specifications for Bosch FLEXIDOME 8100i
| Feature | Details |
|---|---|
| Resolution | 6MP |
| Sensor Size | 1/1.8" |
| Low-light Technology | Starlight |
| Dynamic Range | High Dynamic Range (HDR) |
| Video Analytics | Intelligent Video Analytics Pro (IVA Pro) |
| Remote Configuration | Yes, supports PTRZ |
| Illumination Range | Up to 30m (98ft) with intelligent IR |
| Image Stabilization | Electronic Image Stabilization (EIS) |
SKU  | NDE-8703-RL |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Bosch |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 6 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.9-10mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 175 mm x 148 mm |
| Electronic Shutter | Automatic Electronic Shutter (AES); 1/25 min; 1/15,000 max; Default shutter |
| Image Device | 1/1.8 inch CMOS; 2.3 μm |
| Image Pixels-Effective | 3,264 x 1,840 |
| IR Wavelength | 850 nm |
| Operating Humidity | 5% – 93% |
| Operating Temperature | -50 °C – 60 °C (-58 °F – 140 °F) |
| Power Consumption | PoE (W) (typical – maximum) 7 W – 25.5 W , VAC (W) (typical – maximum) 12 VA – 38.4 VA , VDC (W) (typical – maximum) 7.2 W – 28.4 W |
| S/N Ratio | >55 dB |
| Weatherproof | IP66, IP67, IK11 |
| Angle of View | Horizontal field of view (º) 117° – 44° Vertical field of view (º) 62° – 24° |
| Automatic White Balance | 2,000 K – 10,000 K |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
