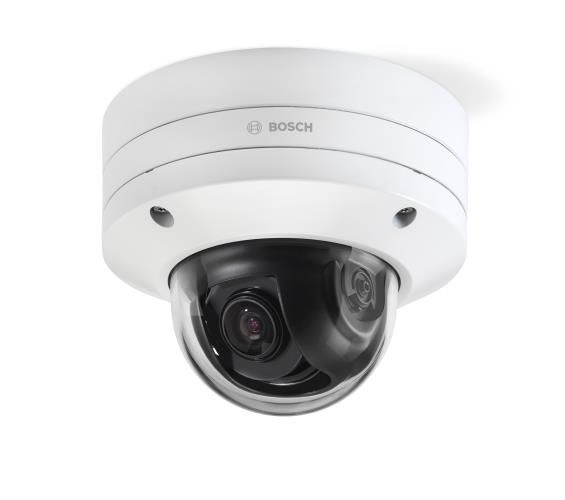

Bosch NDE-8514-RT 8 Megapixel Network Outdoor Dome Camera with 12-40mm Lens
SKU
NDE-8514-RT
Model No
NDE-8514-RT
$1,397.38
Product Highlights
- Motorized Pan, Tilt, Roll, and Zoom (PTRZ) to set the required field of view, without having to touch the camera or lens allows for remote configuration and commissioning
- 1/1.8" 4K UHD sensor and starlight technology to provide highly detailed images even in extreme low-light situations
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
- Camera Trainer to train the camera to recognize user-specified target objects for both moving and non-moving objects
Speak to an expert
The Bosch NDE-8514-RT is an advanced 8 Megapixel Network Outdoor Dome Camera designed to deliver exceptional image quality with its state-of-the-art features. Equipped with a 12-40mm lens and advanced starlight performance, this camera ensures crystal-clear visuals even in low-light conditions. Its user-friendly remote commissioning via the Bosch Project Assistant app allows for hassle-free installation and configuration, making it an ideal choice for security professionals.
Bosch NDE-8514-RT Camera Features
- Motorized PTRZ: Configure the camera's field of view remotely without physical interaction, enhancing efficiency during installation.
- 4K UHD Sensor: The 1/1.8" sensor with starlight technology captures highly detailed images, even in extreme low-light conditions.
- High Dynamic Range: Allows for clear visibility of details in both bright and dark areas, ensuring comprehensive surveillance.
- Intelligent Video Analytics: Built-in object detection triggers alerts and facilitates rapid data retrieval, providing reliable security monitoring.
- Camera Trainer: Trains the camera to recognize user-specified target objects for enhanced tracking of both moving and stationary subjects.
Bosch NDE-8514-RT Detailed Specifications
| Camera Type | 8 Megapixel Network Outdoor Dome Camera |
| Lens | 12-40mm |
| Sensor Type | 1/1.8" 4K UHD Sensor |
| Starlight Technology | Yes |
| Dynamic Range | High Dynamic Range (HDR) |
| Video Analytics | Intelligent Video Analytics with object detection |
| Remote Configuration | Supported via Bosch Project Assistant app |
| Target Object Recognition | Camera Trainer feature available |
SKU  | NDE-8514-RT |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Bosch |
Camera Signal  | Network IP |
| Connection Type | Wireless |
| Infrared Distance | Non Infrared |
| Resolution | 8 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 12-40mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | Dimension (Ø x H) (mm):175 mm x 148 mm, Dimension (Ø x H) (in): 6.9 in x 5.7 in |
| Electronic Shutter | Automatic Electronic Shutter (AES); 1/25 min; 1/15.000 max; Default shutter |
| Image Device | 1/1.8 inch CMOS |
| Image Pixels-Effective | 3840 px x 2160 px |
| Minimum Scene Illumination | 0.0860 lx, 0.0165 lx |
| Operating Humidity | 5% – 93% |
| Operating Temperature | -50 °C – 60 °C |
| Power Consumption | 13 W |
| Privacy Zone | 8 |
| S/N Ratio | >55 dB |
| Weatherproof | IP66 |
| Angle of View | wide (°) 12.60° – 36°, tele (°) 7.10° – 20° |
| Automatic White Balance | Basic; Standard; Dominant color; Manual mode; Hold mode; 4 automatic modes; Sodium lamp |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
