Platinum Tools 105028 ezEX44 Shielded External Ground Connector, 100 Per Bag

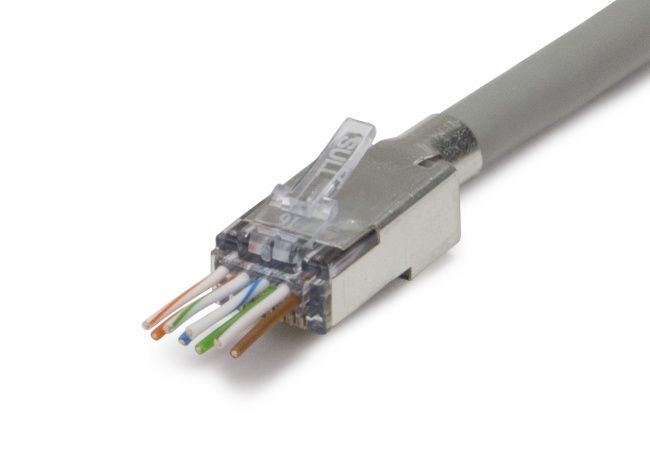

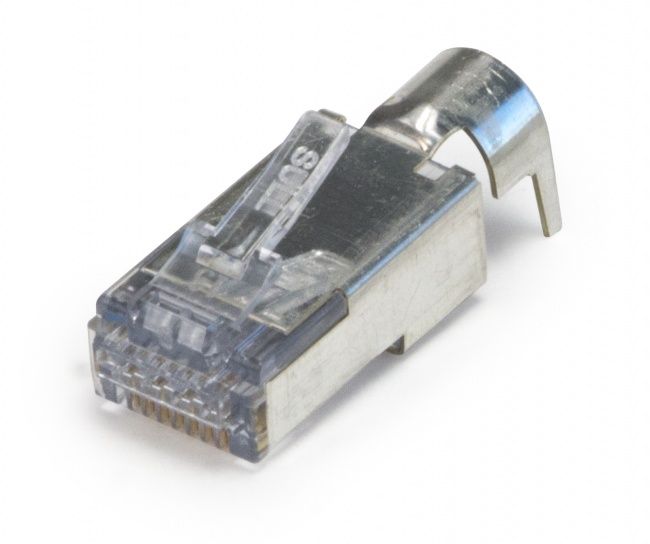

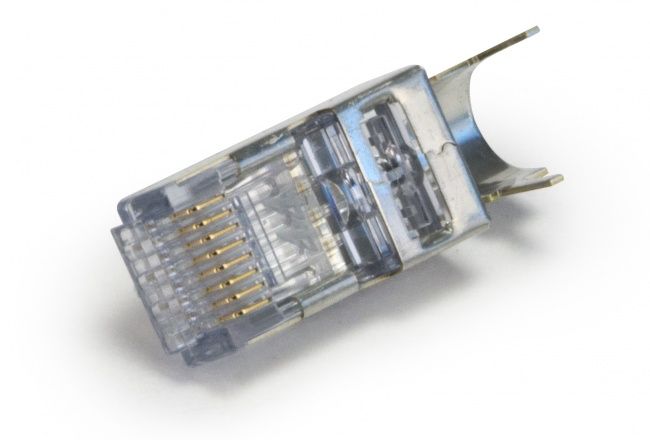

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector, making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame and EXO-EX Die (100061C).

Platinum Tools 105028 ezEX44 Shielded External Ground Connector Features

• Hi-Lo stagger: isolates each conductor to ensure reliable connectivity and reduces interference.
• One piece design: the simple pass-through design eliminates the need for bars or liners, making installation quicker and more efficient.
• Shielded compliance: fully compliant with 5e, 6, and 6A standards ensures optimal performance and reduces signal loss.
• Conductor insulation diameter: accommodates size range of 0.039” – 0.044” (1.0 – 1.12mm) allowing flexibility with different conductors.
• Max outer diameter: supports cables with a maximum outer diameter of 0.305” (7.75mm) for robust applications.
• AWG compatibility: works with solid or stranded 24-22 AWG wires to enhance versatility across installations.
• Compliance certifications: meets TAA, TIA, RoHS, UL, and FCC standards, ensuring quality and compatibility with industry requirements.

Detailed Specifications for Platinum Tools 105028
