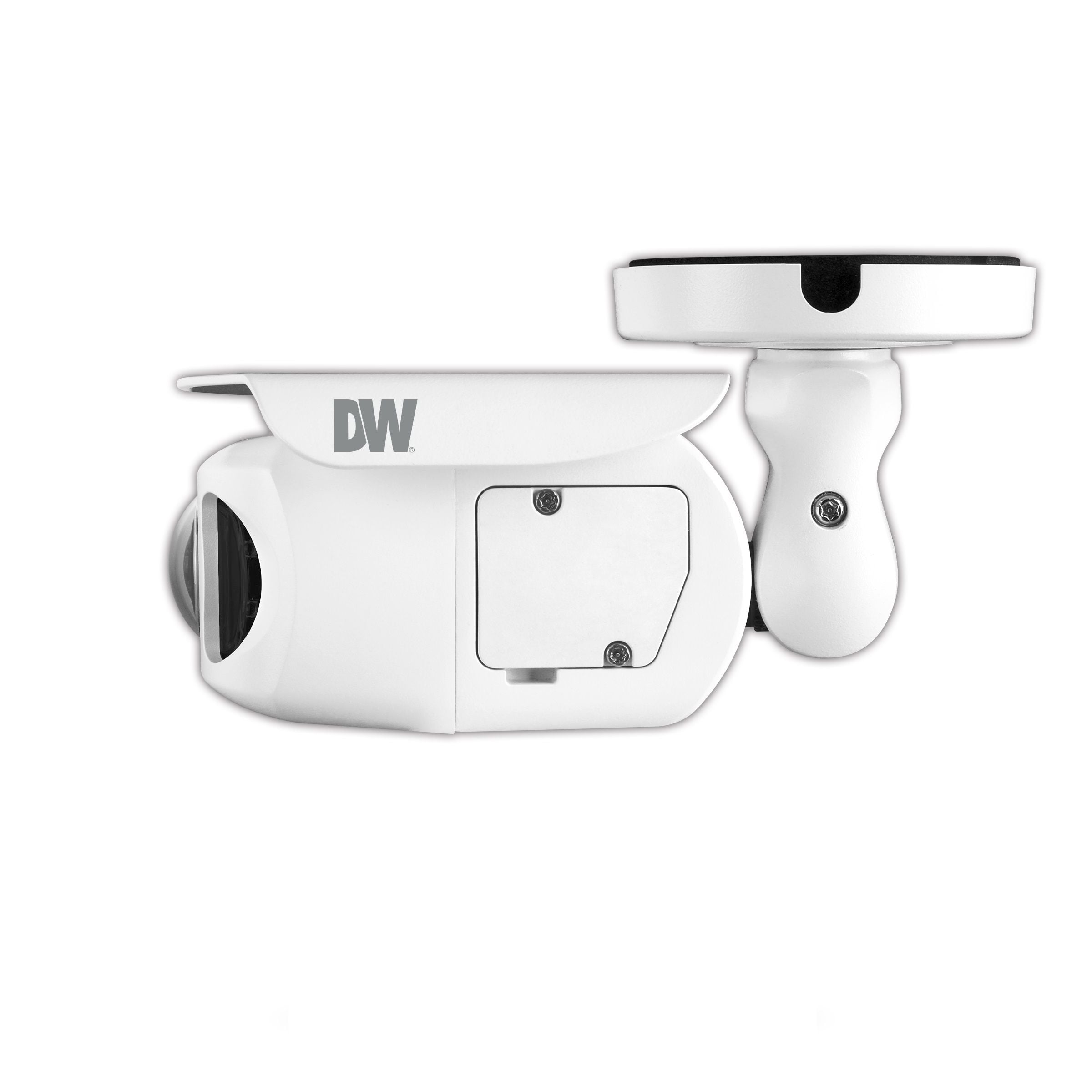

Digital Watchdog DWC-MBW8Wi2TX 4K Network Bullet Camera IVA with 2.3mm Lens
SKU
DWC-MBW8Wi2TX
Model No
DWC-MBW8Wi2TX
was $869.00 Special Price $661.01
Product Highlights
- 8MP 1/1.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- 2.3mm ultra-wide view lens for edge-to-edge image clarity without pixel loss
- True Wide Dynamic Range (WDR) for clear images in challenging light
Speak to an expert
This NDAA-compliant MEGApix IVA 4K ultra-wide view single-sensor bullet IP camera delivers real-time 30fps ultra-wide video with 2.3mm lens, providing edge-to-edge image clarity without pixel loss and situational awareness. IVA engine offers advanced Video Content Analysis and detection capabilities. The camera also includes Star-Light Plus color in near-total darkness technology for quality video in any lighting condition and Smart IR in an IP67-rated bullet housing.
Digital Watchdog DWC-MBW8Wi2TX Camera Features
- 8MP 1/1.8" image sensor: ensures high-resolution images at real-time 30fps for exceptional detail.
- Star-Light Plus™ color technology: enables clear, vivid video even in near-total darkness, enhancing security monitoring.
- Intelligent Video Analytics (IVA): provides advanced analysis for better detection and monitoring capabilities.
- 2.3mm ultra-wide view lens: allows for edge-to-edge image clarity without pixel loss, maximizing the monitored area.
- True Wide Dynamic Range (WDR): enhances clarity in high-contrast lighting, ensuring visibility in different environments.
- Simultaneous streaming: with multiple codec options allows for smart bandwidth management, optimizing usage.
- 100' Smart IR™: enables clear black and white images in darkness without needing external lighting.
- Smart DNR™ 3D digital noise reduction: minimizes noise and ghosting for crisp motion capture in low-light scenarios.
- Two-way audio: facilitates direct communication for enhanced interaction between monitors and the camera's location.
- Local SD card slot: allows for local recording, ensuring access to footage even during network loss.
- Alarm sensor input and relay output: supports integration for sophisticated access control systems.
- Built-in web server: ensures easy management of the camera from any browser.
- PoE and DC12V: simplifies installation with a single cable solution.
- NDAA compliant: ensures suitability for federal and government projects.
- IP66- and IK9-rated housing: assures durability and reliability against harsh conditions.
- 5 year warranty: offers peace of mind with a robust support policy.
Digital Watchdog DWC-MBW8Wi2TX Detailed Specifications
| Image Sensor | 8MP 1/1.8" CMOS |
| Frame Rate | 30fps |
| Lens Type | 2.3mm ultra-wide view |
| Night Vision | Star-Light Plus™ |
| WDR | True Wide Dynamic Range |
| Audio | Two-way audio capability |
| IR Distance | 100' Smart IR™ |
| Storage | Local SD card slot |
| Power Options | PoE and DC12V |
| Housing Rating | IP66 and IK9 |
| Compliance | NDAA compliant |
| Warranty | 5 years |
SKU  | DWC-MBW8Wi2TX |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.3mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 5.03" x 8.75" x 3.8" (127.9 x 222.5 x 96.7mm) |
| Electronic Shutter | Shutter mode : Auto, manual, anti-flicker, slow shutter , Shutter speed : 1/15 ~ 1/32000 , Slow shutter: 1/2,1/3,1/5,1/6,1/7.5, 1/10 |
| Image Device | 8MP 1/1.8" CMOS sensor |
| Image Pixels Total | 3952 (H) x 2320 (V) |
| Minimum Scene Illumination | 0.29 lux (color) , 0 lux (B/W) |
| Operating Humidity | 10–90% RH, (non–condensing) |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Power Consumption | 0.29 lux (color) 0 lux (B/W) |
| Privacy Zone | 16 programmable privacy masks |
| Protocols | TCP/IP , UDP , AutoIP , RTP (UDP/TCP) , RTSP , NTP , HTTP , HTTPS , SSL , DNS , DDNS , DHCP , FTP , SMTP , ICMP , SNMPv1/v2/v3 (MIB2) , ONVIF |
| S/N Ratio | 50dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D-DNR |
| Angle of View | H:175° , V:80° |
| IR Distance | 30.4m/100ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
