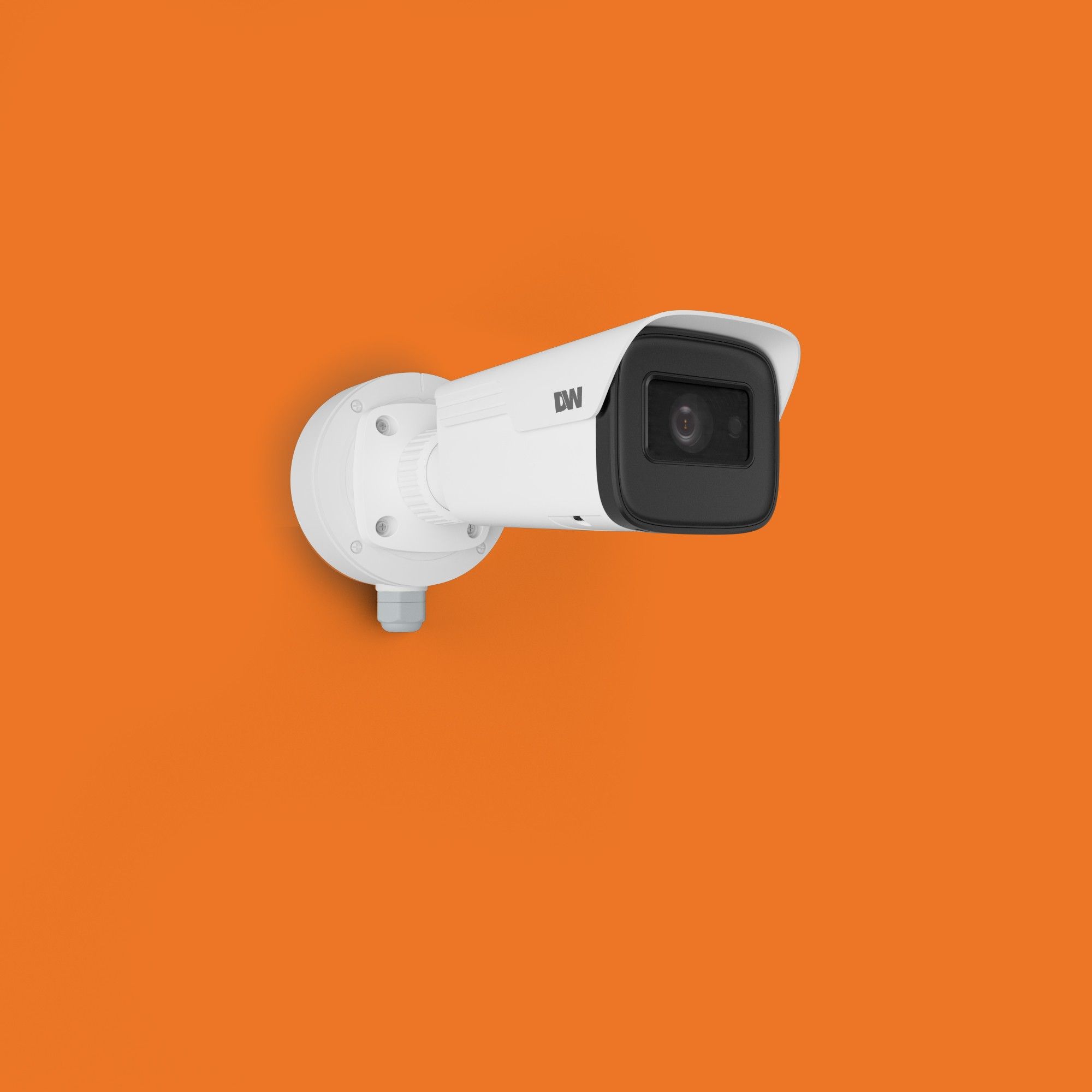

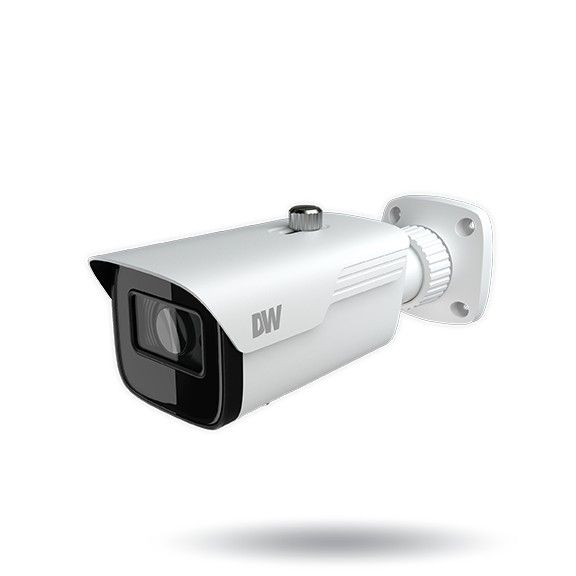

Digital Watchdog DWC-VSBD04Mi 4 Megapixel Network Outdoor IR Bullet Camera with 2.8-12mm Lens
SKU
DWC-VSBD04Mi
Model No
DWC-VSBD04Mi
was $244.00 Special Price $186.69
Product Highlights
- 4MP 1/3″ image sensor at real-time 30fps
- 2.8~12mm vari-focal lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 164ft range Smart IR™
Speak to an expert
The Digital Watchdog DWC-VSBD04Mi is a high-performance 4 Megapixel Network Outdoor IR Bullet Camera designed for comprehensive surveillance. This advanced camera features a 2.8-12mm vari-focal lens, providing exceptional image clarity and zoom capabilities, while its IP67-rated housing ensures durability in challenging outdoor environments. With intelligent analytics like line crossing, perimeter intrusion, and video tampering detection, this camera is perfect for reliable security monitoring.
Digital Watchdog DWC-VSBD04Mi Key Features
- 4MP Image Quality: Enjoy clear and detailed images with a 1/3” image sensor, capturing footage at real-time 30fps.
- Vari-focal Lens: The 2.8~12mm motorized zoom lens allows for flexible focal length adjustments, ensuring optimal coverage and detail.
- True Wide Dynamic Range: Captures both bright and dark areas in challenging lighting conditions, enhancing the overall image quality.
- Multiple Codec Support: Utilize H.265, H.264, or MJPEG with simultaneous dual-stream output for versatile video management.
- Smart IR™ Technology: Provides up to 164ft of infrared illumination, ensuring clear night vision.
- Comprehensive Video Analytics: Includes line crossing, perimeter intrusion, and various tampering detection to enhance security effectiveness.
- Smart DNR™: Reduces digital noise in low-light conditions, ensuring clearer images.
- True Day/Night Operation: Features a mechanical IR cut filter to switch seamlessly between day and night modes.
- Robust Durability: With an IP67 rating for dust and water resistance and IK10 impact resistance, this camera can withstand harsh environments.
- Advanced Privacy Features: Offers programmable privacy zones to protect sensitive areas from being recorded.
- Built-in Web Server: Enables easy remote management via standard web browsers.
- Power over Ethernet: Supports PoE class 3 for simplified installation.
- NDAA Compliant: Meets the standards set by the National Defense Authorization Act for secure installations.
Digital Watchdog DWC-VSBD04Mi Detailed Specifications
| Camera Type | 4 Megapixel Network Outdoor IR Bullet Camera |
| Lens | 2.8-12mm vari-focal lens |
| Image Sensor | 1/3” image sensor |
| Resolution | 4MP |
| Frame Rate | 30fps |
| IR Range | Up to 164ft |
| Video Analytics | Line crossing, perimeter intrusion, video tampering detection |
| Codec Support | H.265, H.264, MJPEG |
| Durability | IP67 waterproof, IK10 impact-resistant |
| Privacy Zones | Programmable |
| Power Supply | PoE class 3 and DC12V |
SKU  | DWC-VSBD04Mi |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 8.69" x 3.16" x 2.77" (220.8 x 80.5 x70.6 mm) |
| Electronic Shutter | 1/30 ~ 1/100000 |
| Image Device | 4MP 1/3" CMOS sensor (x4) |
| Image Pixels Total | 2560 (H) x 1440 (V) |
| Minimum Scene Illumination | 0.0 lux (B/W), 0.005 lux (color) |
| Operating Humidity | 0-95% RH (non–condensing) |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Power Consumption | DC12V: max 8.0W, 666.6mA, PoE: max 8.0W |
| Privacy Zone | 8 programmable privacy masks |
| Protocols | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Weatherproof | IP67 |
| Digital Noise Reduction | Smart DNR™ 3D Digital Noise Reduction |
| Angle of View | 92°~31° |
| IR Distance | 49m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
