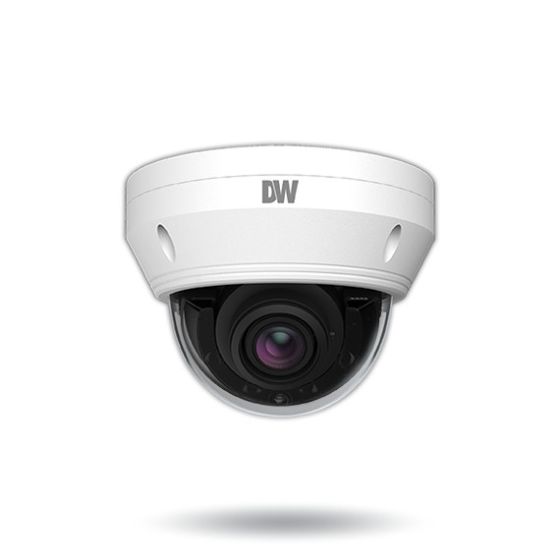

Digital Watchdog DWC-VSDG04Mi 4 Megapixel Network Outdoor IR Dome Camera with 2.8-12mm Lens
SKU
DWC-VSDG04Mi
Model No
DWC-VSDG04Mi
$239.40
Product Highlights
- 4MP 1/3″ image sensor at real-time 30fps
- 2.8~12mm vari-focal lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 164ft range Smart IR™
Speak to an expert
Introducing the Digital Watchdog DWC-VSDG04Mi, a high-performance 4 Megapixel Network Outdoor IR Dome Camera designed to deliver exceptional image quality and advanced surveillance features. With its NDDA compliance and rugged construction, this camera is perfect for both security professionals and private users looking for a reliable and intelligent solution for outdoor monitoring. Enjoy features like motorized zoom, various video analytics, and enhanced night vision, all in one versatile unit.
Digital Watchdog DWC-VSDG04Mi Camera Features
- 4MP Resolution: Provides crystal-clear images at 4MP resolution and real-time 30fps, ensuring high-quality surveillance footage.
- Motorized Zoom Lens: Equipped with a 2.8~12mm vari-focal lens for flexible focal lengths and auto-focus capabilities, allowing for detailed monitoring over varying distances.
- Advanced WDR: Features True Wide Dynamic Range technology for improved visibility in challenging lighting conditions.
- Multiple Codec Support: Supports H.265, H.264, and MJPEG with simultaneous dual-stream capabilities for versatile recording options.
- Smart IR™ Technology: Offers an extensive 164ft range of infrared illumination for clear nighttime visuals.
- Intelligent Video Analytics: Includes line crossing, perimeter intrusion, and various tampering detection alerts for proactive security management.
- De-Fog™ Feature: Enhances visibility during extreme weather conditions for improved image clarity.
- Durability: IP67-rated waterproofing and IK10 impact resistance ensure reliable performance in harsh outdoor environments.
- Two-Way Audio: Facilitates interactive communication with built-in microphone support.
- Storage Options: Features a Micro SD/SDHC/SDXC card slot for local recording capacity (card not included).
- ONVIF Conformant: Ensures seamless integration with various open platform solutions available in the market.
- NDAA Compliant: Meets regulatory compliance for enhanced security standards.
Detailed Camera Specifications
| Image Sensor | 4MP 1/3” image sensor |
| Frame Rate | Real-time 30fps |
| Lens | 2.8~12mm vari-focal lens with motorized zoom |
| Wide Dynamic Range | True WDR |
| Video Codecs | H.265, H.264, MJPEG |
| IR Range | 164ft Smart IR™ |
| Audio Support | Two-way audio with built-in microphone |
| Storage | Micro SD/SDHC/SDXC class 10 card slot |
| Power Supply | PoE class 3 and DC12V |
| IP Rating | IP67 dust-tight and waterproof |
| Impact Resistance | IK10-rated |
SKU  | DWC-VSDG04Mi |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto |
| Dimensions (W x H) | 5.55" x 3.93" (141 x 100 mm) |
| Electronic Shutter | 1/30 ~ 1/100000 |
| Image Device | 4MP 1/3" CMOS sensor (x4) |
| Image Pixels Total | 2560 (H) x 1440 (V) |
| Minimum Scene Illumination | 0.0 lux (B/W), 0.005 lux (color) |
| Operating Humidity | 0-95% RH (non–condensing) |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Power Consumption | DC12V: max 7.5W, 625mA, PoE: max 7.5W |
| Privacy Zone | 8 programmable privacy masks |
| Protocols | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Weatherproof | IP67 |
| Digital Noise Reduction | Smart DNR™ 3D Digital Noise Reduction |
| Angle of View | 92°~31° |
| IR Distance | 49m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
