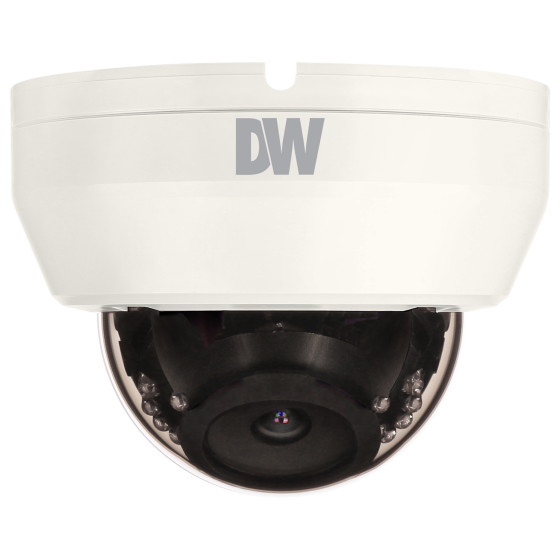

Digital Watchdog DWC-D3263WTIR 1080p HD-AHD/TVI/CVI Analog Indoor Dome Camera, 2.8-12mm Lens

Model No
DWC-D3263WTIR
$178.49
Volume DiscountsVolume
Discounts
Free System DesignFree System
Design
Lifetime Tech SupportLifetime
Tech Support
Free Shipping Over $400*Free Shipping
Over $400*
Product Highlights
    • Universal HD over Coax® Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
    • STAR-LIGHT™ Super Low Light Technology
    • 2.1MP 1/3” Image Sensor @ Real-time 30fps
    • 2.8~12mm Varifocal P-Iris Lens
    • True Wide Dynamic Range (WDR)

The Digital Watchdog DWC-D3263WTIR 1080p HD-AHD/TVI/CVI Analog Indoor Dome Camera is designed to deliver exceptional video quality and versatility for your surveillance needs. With its advanced Universal HD over COAX technology, the camera supports multiple high-definition formats and produces crystal clear images, even in low light conditions. The combination of a 2.8-12mm varifocal lens and cutting-edge features makes this dome camera an efficient solution for effective monitoring.

Digital Watchdog DWC-D3263WTIR Camera Features

  • Universal HD over Coax® Technology: Allows compatibility with HD-Analog, HD-TVI, HD-CVI, and all analog signals to 960H, offering flexibility and easy integration with existing systems.
  • STAR-LIGHT™ Super Low Light Technology: Ensures clear images in low light environments, enhancing surveillance during night-time or dark conditions.
  • 2.1MP 1/3” Image Sensor @ Real-time 30fps: Delivers high-resolution videos at 30 frames per second, providing smooth and detailed footage.
  • 2.8~12mm Varifocal P-Iris Lens: Offers adjustable focal length for adaptable coverage and precise image focus tailored to your monitoring needs.
  • True Wide Dynamic Range (WDR): Balances lighting differences in scenes for detailed images, ensuring clarity in high-contrast situations.
  • OSD Control Via Coaxial (UTC): Allows easy configuration and adjustments directly through the coaxial cable, simplifying installation and setup.
  • 100’ Smart IR™ with Intelligent Camera Sync: Provides excellent night vision capabilities, ensuring objects are visible even in complete darkness.
  • Smart DNR™ 3D Digital Noise Reduction: Reduces noise in images, enhancing video quality without sacrificing details.
  • True Day/Night Mechanical IR Cut Filter: Automatically switches between day and night modes for optimal performance under all lighting conditions.
  • De-Fog™ Extreme Weather Image Compensation: Improves visibility during foggy weather, ensuring reliable performance in adverse conditions.
  • Highlight Masking Exposure (HME): Essential for managing extreme lighting variations by preventing overexposure in highly lit areas.
  • Easy Icon Driven OSD Menu with Built-in Joystick: Simplifies camera settings adjustments, making it user-friendly during setup and maintenance.
  • Programmable Privacy Zones: Allows configuration of areas within the field of view to respect privacy concerns, ensuring compliance with regulations.
  • Auto Gain Control (AGC): Automatically adjusts camera sensitivity based on lighting conditions, enhancing image clarity.
  • Backlight Compensation (BLC): Improves detail in backlit scenes, ensuring important information is captured accurately.
  • Dynamic Range Compressor (DRC): Reveals details hidden in low light situations, providing more comprehensive surveillance footage.
  • Auto White Balance (AWB): Ensures accurate colors in various lighting conditions, maintaining true-to-life image quality.

Digital Watchdog DWC-D3263WTIR Detailed Specifications

Product ModelDWC-D3263WTIR
Resolution2.1MP
Image Sensor1/3” CMOS
Frame Rate30fps
Lens2.8~12mm Varifocal P-Iris
IR DistanceUp to 100 feet
Power Supply12V DC
Operating Temperature-4°F to 122°F
Dimensions4.7” x 4.7” x 4.7”
Weight2.0 lbs
SKU  DWC-D3263WTIR
Features  Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range
Manufacturer  Digital Watchdog
NDAACompliant
Camera Signal     Analog, HD-AHD, HD-CVI, HD-TVI
Resolution    1080p
Sensor Option    1/3" CMOS
Lens Type    Varifocal
Lens Size    2.8-12mm
Infrared Distance    61~100 Feet
Durability    Indoor
Mount Type  Ceiling, Wall
Voltage  12vDC, 24vAC, Dual Voltage
Electronic Shutter    1/30 – 1/30,000
Gamma Correction  0.45 ~ 0.75
Image Device    2.1MP 1/3” CMOS Sensor
IR Distance  30.48m/100ft
Minimum Scene Illumination  F1.4 (30IRE): 0.03 Lux (Color), F1.4 (30IRE): 0 Lux (B/W)
Operating Humidity    Less than 90% (Non-Condensing)
Operating Temperature    -4°F ~ 122°F (-20°C ~ 50°C)
Dimensions (W x H)  4.72 x 3.52 inch (120 x 89.4 mm)
Power Consumption  DC12V (LED OFF): 2.94W, DC12V (LED ON): 5.22W, AC24V (LED OFF): 2.5W, AC24V (LED ON): 4.35W
Privacy Zone    16 Privacy Zones
S/N Ratio  55dB
Scanning System    Progressive scan
Video Output    HD-Analog, HD-TVI, HD-CVI 2.1MP 1080p CVBS Analog up to 960H
Synchronization  Internal
Digital Noise Reduction    3D, Off, Low, Middle, High
Backlight Compensation    Off / On
Automatic White Balance    Auto / Auto-Ex / Preset / Manual
Auto Gain Control    Max 60dB
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Mirror    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
Motion Detection Tracking    Yes
