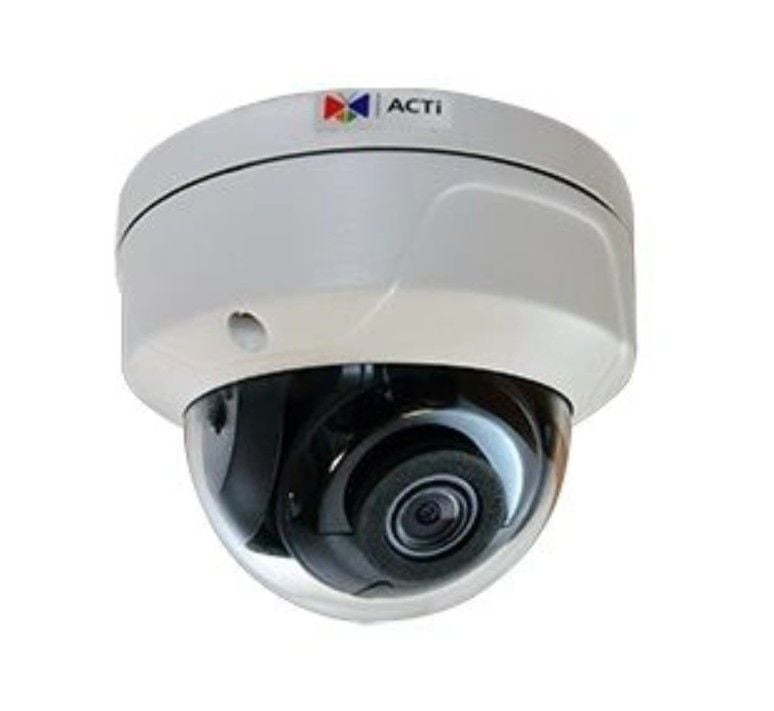

ACTi A76 4 Megapixel Network IR Outdoor Dome Camera with 2.8mm Lens
Model No
A76
$614.25
Product Highlights
- 4 Megapixel
- Day & Night with Superior Low Light Sensitivity and IR LED
- Fixed Lens with f2.8mm/F1.6
- Extreme WDR
- Wide Angle
Speak to an expert
The A76 from ACTi is a 4 megapixel network IR outdoor dome camera equipped with a 2.8mm lens, designed to provide high-resolution video surveillance in various lighting conditions. With advanced features such as low light sensitivity, extreme WDR, and a wide angle view, this camera ensures reliable performance for outdoor security needs.
ACTi A76 Camera Features
- 4 Megapixel: Captures high-resolution images for clear and detailed surveillance footage.
- Day & Night with Superior Low Light Sensitivity and IR LED: Ensures optimal performance in both bright and dark environments, allowing for 24/7 monitoring.
- Fixed Lens with f2.8mm/F1.6: Provides a wide viewing angle, enabling coverage of larger areas without compromising image quality.
- Extreme WDR: Offers enhanced image clarity in high-contrast lighting conditions, making it ideal for outdoor settings.
- Wide Angle: Increases the field of view, reducing the number of cameras required for comprehensive coverage.
- Taiwan IoT Cybersecurity Certification Level 1 (TAICS): Ensures a high standard of security against cyber threats, providing peace of mind.
- Event trigger, response and notification: Enables automatic alerts and actions based on detected events, enhancing situational awareness.
ACTi A76 Detailed Camera Specifications
| Camera Type | Network IR Outdoor Dome |
| Megapixels | 4 MP |
| Lens Type | Fixed Lens |
| Lens Focal Length | 2.8mm |
| Aperture | F1.6 |
| WDR Capability | Extreme WDR |
| Low Light Sensitivity | Superior Low Light Performance |
| IR LED | Included for Night Vision |
| Wide Angle View | Enables larger coverage area |
| Cybersecurity Certification | Taiwan IoT Cybersecurity Certification Level 1 |
SKU  | A76 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 110.82mm x 84.7mm (4.36" x 3.33") |
| Electronic Shutter | 1/5-1/100000 second (auto mode) |
| Image Device | 1/2.7" Progressive Scan CMOS |
| Image Pixels-Effective | 2688(H) X 1520(V) (4 MP) |
| IR LEDs | IR LED x 3 |
| IR Wavelength | 850Â nm |
| Minimum Scene Illumination | Color: 0.003 lux; B/W: 0 lux (IR LED on) |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 6.5 W (PoE) |
| Privacy Zone | 4 configurable regions |
| Protocols | IPv4, IPv6(*3), TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, ICMP, UPnP, QoS, SNMP, IEEE 802.1X |
| S/N Ratio | 75Â dB |
| Weatherproof | IP68 |
| Digital Noise Reduction | 2DÂ +Â 3DÂ DNR |
| Angle of View | Horizontal: 99°, Vertical: 56° |
| Motion Detection Tracking | 4 polygonal regions with up to 10 vertices |
| IR Distance | 65m/213ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
