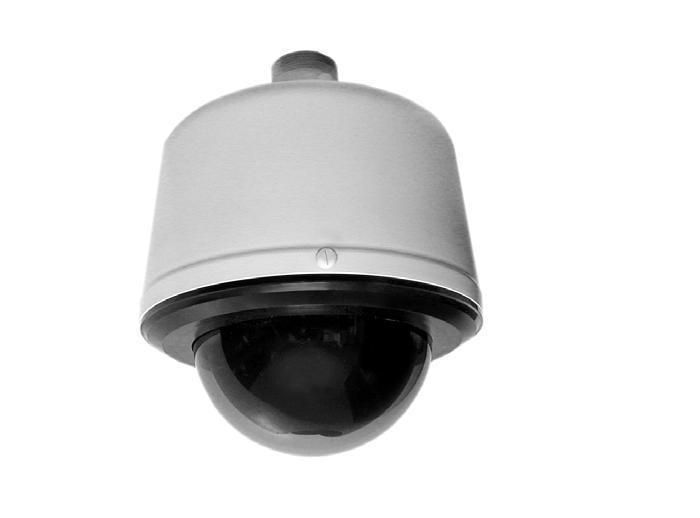

Pelco S6230-PGL1 2 Megapixel Spectra Enhanced Low Light HD Pendant Standard Network PTZ Dome Camera, 30X, Clear, Gray
SKU
S6230-PGL1
Model No
S6230-PGL1
$2,603.72
Product Highlights
- Up to Full HD 1080p and up to 60 Images per Second (ips)
- Power over Ethernet (HPoE and PoE+), 24 VAC, 24 VDC
- Pelco H.264 Smart Compression Technology
- Three Automatic Defog Options
- Electronic Image Stabilization (EIS)
Speak to an expert
Introducing the Pelco S6230-PGL1, a state-of-the-art 2 Megapixel Spectra Enhanced Low Light HD Pendant Standard Network PTZ Dome Camera that combines advanced technology with high-performance specifications to ensure top-notch video surveillance. With its 30X optical zoom, exceptional clarity, and low-light capabilities, this camera is perfect for any security application, providing reliable and clear images day or night.
Pelco S6230-PGL1 Camera Features
- High Resolution: Up to Full HD 1080p and up to 60 Images per Second (ips) for crystal-clear video quality.
- Flexible Power Options: Supports Power over Ethernet (HPoE and PoE+), 24 VAC, and 24 VDC to suit varying installation needs.
- Advanced Compression Technology: Utilizes Pelco H.264 Smart Compression for optimal video storage without compromising quality.
- Enhanced Visibility: Features three automatic defog options for improved image quality in challenging weather conditions.
- Smooth Operation: Electronic Image Stabilization (EIS) minimizes camera shake, enhancing video stability.
Pelco S6230-PGL1 Detailed Specifications
| Camera Type | PTZ Dome Camera |
| Resolution | 2 Megapixels |
| Zoom Capability | 30X Optical Zoom |
| Video Output | Full HD 1080p |
| Frame Rate | Up to 60 Images per Second |
| Power Supply Options | HPoE, PoE+, 24 VAC, 24 VDC |
| Compression Type | H.264 Smart Compression |
| Defog Options | Three Automatic Settings |
| Image Stabilization | Electronic Image Stabilization (EIS) |
SKU  | S6230-PGL1 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Vandal Resistant |
| Voltage | 24vDC, 24vAC, PoE |
| Electronic Shutter | 1/1 ~ 1/10,000 sec |
| Image Device | 1/2.8-inch Type Exmor CMOS Sensor |
| Minimum Scene Illumination | Color (33 ms): 0.03 lux, Color (250 ms): 0.008 lux, Mono (33 ms): 0.004 lux, Mono (250 ms): 0.001 lux |
| Operating Humidity | 10 to 90% RH (noncondensing) |
| Operating Temperature | –5° to 50°C (–23° to 122°F) |
| OSD Menu | English, Spanish, Portuguese, Italian, German, French, Russian, Turkish, Arabic, Simplified Chinese, and Korean |
| Privacy Zone | Up to 32 window blanking privacy zones |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, 802.1x (EAP), and NTCIP 1205 |
| S/N Ratio | >50dB |
| Processor | Intel® Core™ i3 Processor, 2.4 GHz |
| Angle of View | 63.7° wide - 2.3° tele |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
