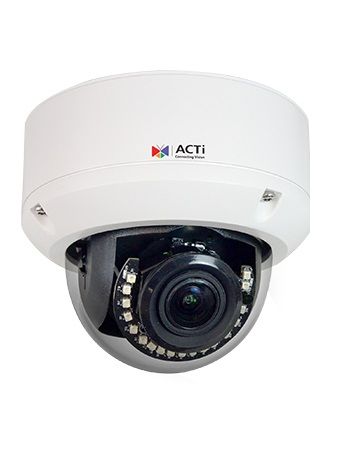

ACTi A85 2 Megapixel Outdoor IR Network Dome Camera, 2.8-12mm Lens
Model No
A85
$1,205.55
Product Highlights
- 2 Megapixel
- Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED
- 4.3x Zoom Lens with f2.8-12/F1.4-F2.8, Auto focus (for installation)
- Extreme WDR
- H.265 Compression
Speak to an expert
The A85 from ACTi is a powerful 2 megapixel outdoor IR network dome camera designed for high-quality surveillance with advanced features. Its versatile 2.8-12mm lens offers excellent zoom capabilities, while the adaptive IR LED ensures clear images even in low-light conditions. Enhanced by extreme Wide Dynamic Range (WDR) and H.265 compression, this camera guarantees efficient storage and superior video clarity under various lighting scenarios.
ACTi A85 Camera Features
- 2 Megapixel: Provides high-resolution images for detailed surveillance.
- Day & Night Functionality: With extreme low light sensitivity and adaptive IR LED, captures clear images in varying light conditions.
- 4.3x Zoom Lens: The 2.8-12mm lens with auto focus allows for flexible installation and detailed close-ups.
- Extreme WDR: Enhances image quality by balancing bright and dark areas in a single scene.
- H.265 Compression: Reduces bandwidth and storage requirements without sacrificing video quality.
- Wide Angle: Covers a large area, making it ideal for outdoor monitoring.
- Event Triggering: Capable of triggering responses and notifications for real-time alerts.
ACTi A85 Detailed Specifications
| Camera Model | ACTi A85 |
| Resolution | 2 Megapixels |
| Lens Type | 2.8-12mm Zoom Lens |
| Low Light Capability | Extreme Low Light Sensitivity with Adaptive IR LED |
| Dynamic Range | Extreme WDR |
| Video Compression | H.265 |
| Field of View | Wide Angle |
| Event Management | Event Trigger, Response, and Notification Capabilities |
SKU  | A85 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 139.38mm x 129.75mm (5.48" x 5.10") |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Image Device | 1/2.8" Progressive Scan CMOS |
| Image Pixels-Effective | 1945(H) X 1097(V) (2.13 MP) |
| IR Wavelength | 700-1150nm |
| Operating Humidity | 20% - 80% RH |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Power Consumption | 12.95 W (PoE) |
| Privacy Zone | 4 configurable regions |
| Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Video Output | RJ-45 |
| Weatherproof | IP66 |
| Zoom Ratio | 4.3x optical |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle: 92° - 34.8°, Vertical Viewing Angle: 49.3° - 19.8° |
| Motion Detection Tracking | 3 regions |
| IR Distance | 30m/98ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
