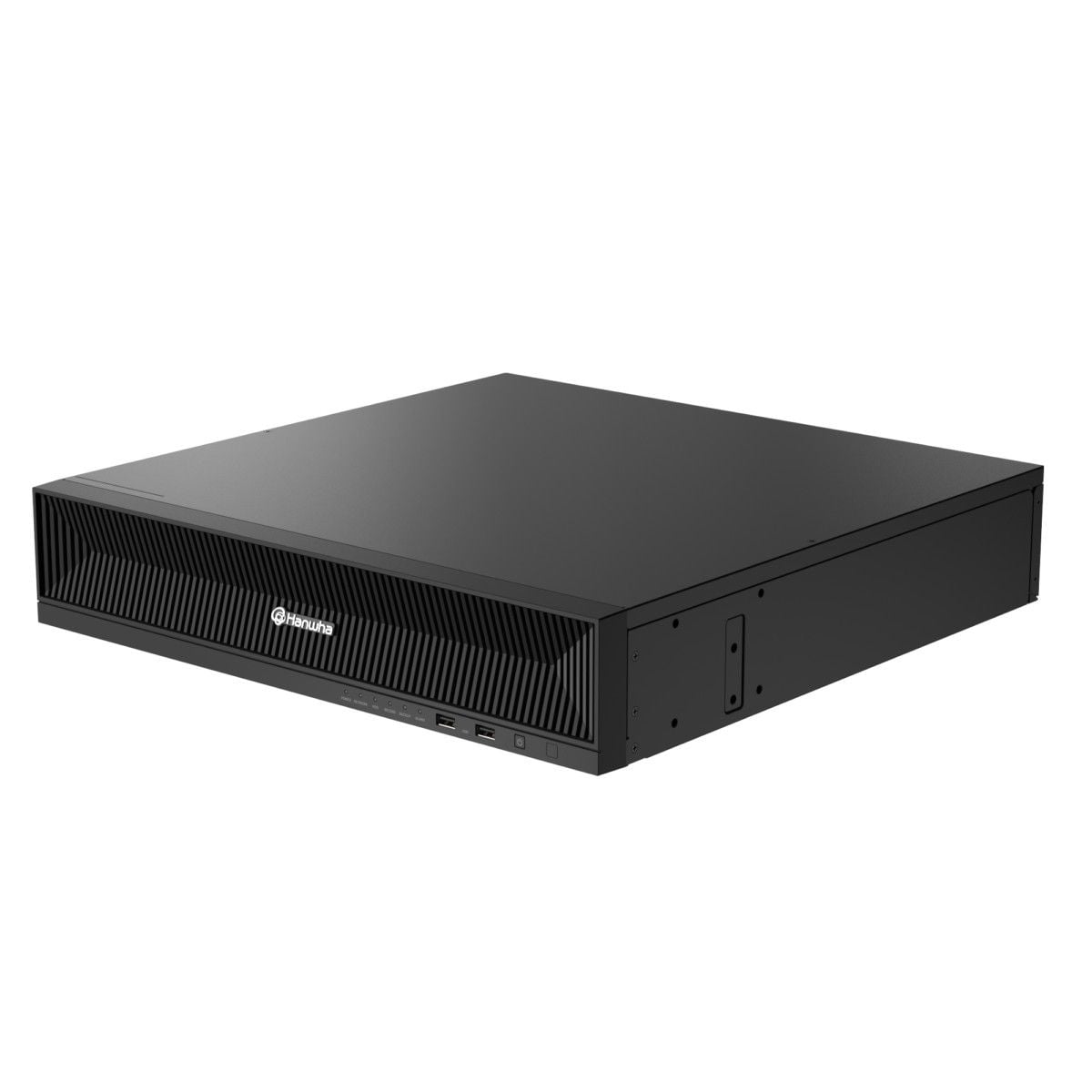

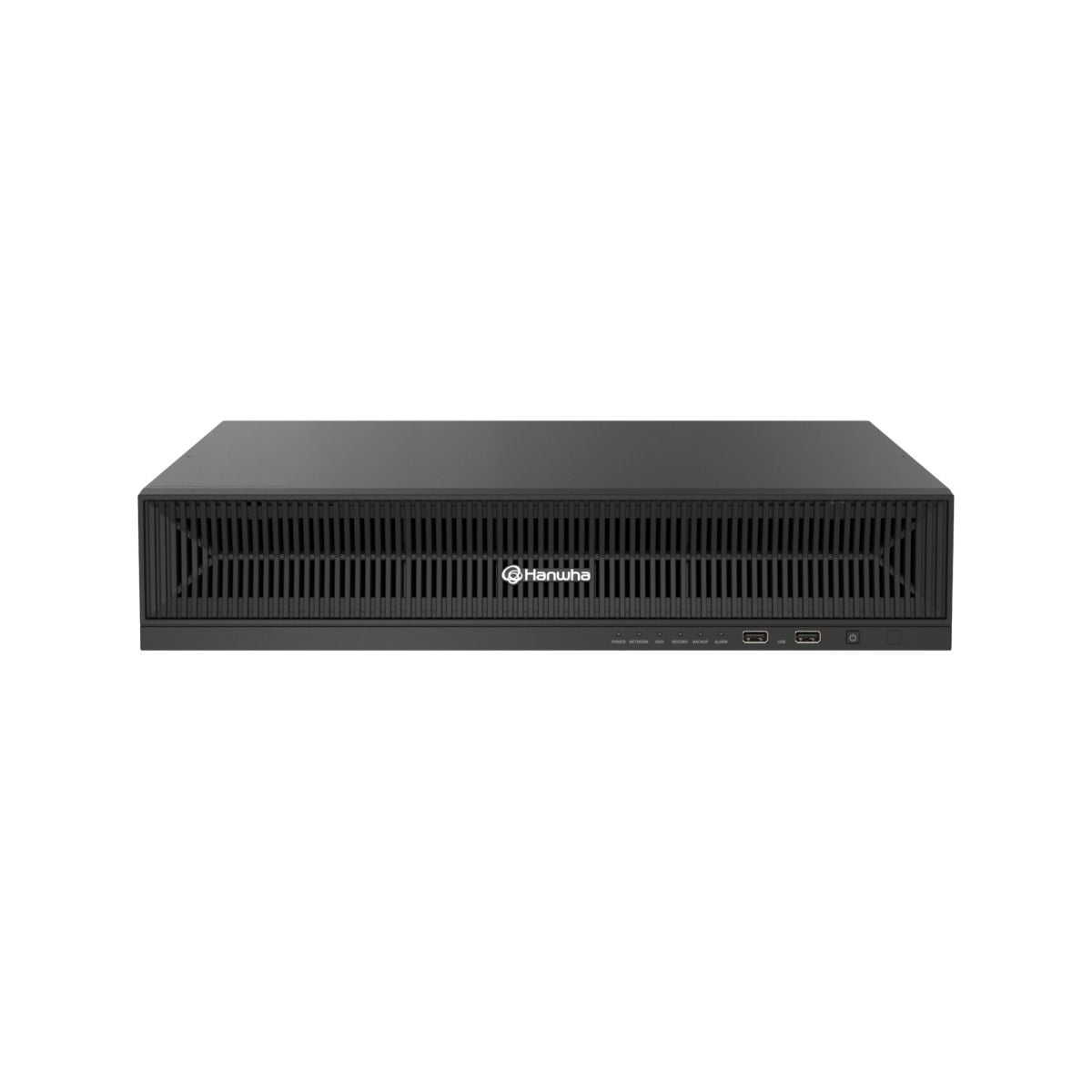

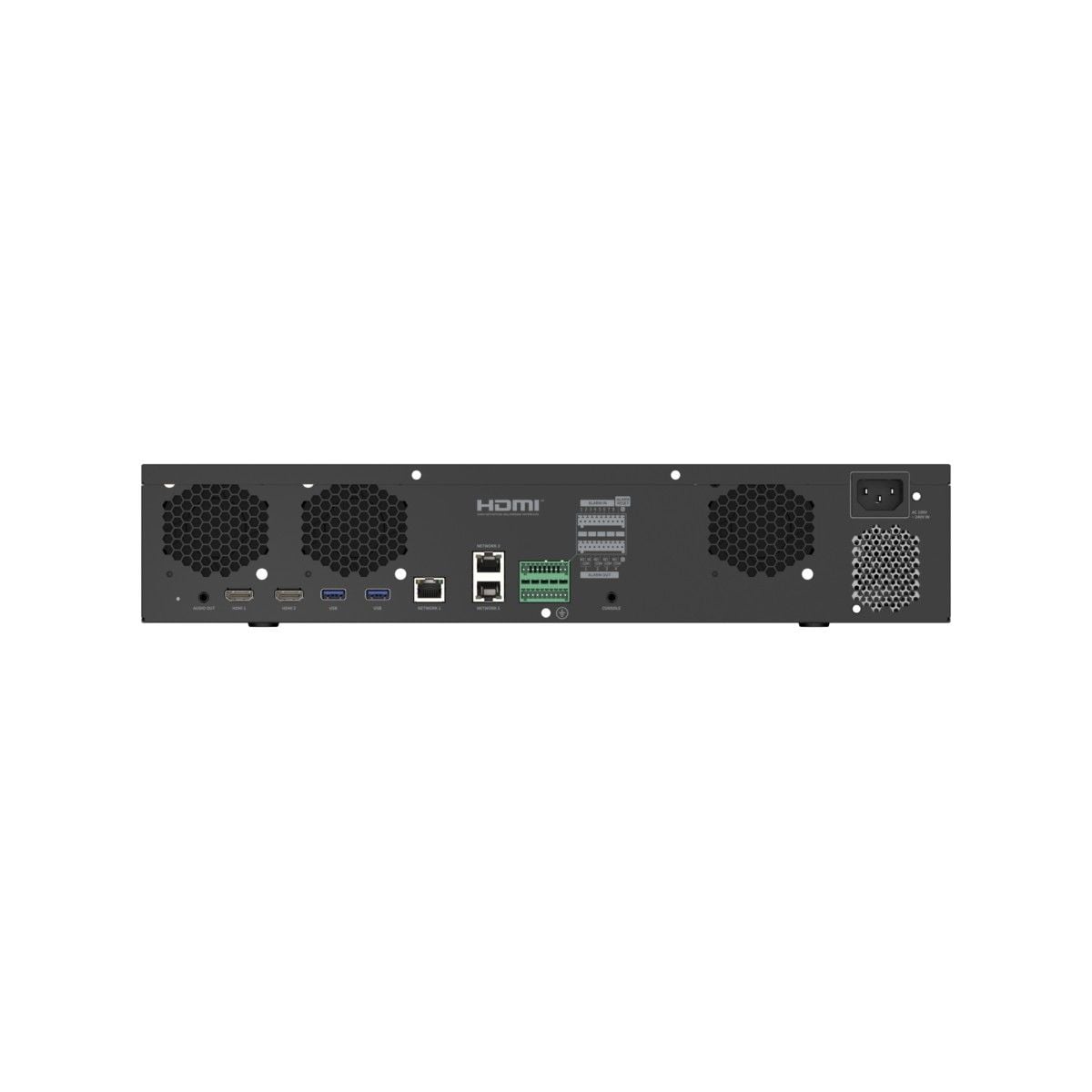

Hanwha Vision XRN-3220B2 32 Channel NVR with 12th Genration Intel® Processor with No HDD
SKU
XRN-3220B2
Model No
XRN-3220B2
$3,186.04
Product Highlights
- 32CH, 32MP resolution
- SATA 8 HDD Bays (up to 80TB)
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virtual Channel View
Speak to an expert
32 Channel NVR with 12th Genration Intel® Processor with No HDD
- The Hanwha Vision XRN-3220B2 is a state-of-the-art 32 Channel NVR featuring a powerful 12th Generation Intel Processor, designed for unmatched performance and security. This device stands out with its NDAA compliance and built-in TPM for enhanced cybersecurity. Installation is made easy with the unique camera setting palette, allowing for streamlined management of network bandwidth and recording settings. Additionally, features like Dynamic Layout and Virtual Channels support versatile usage environments while enhancing operational efficiency.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| 32CH, 32MP resolution | Virtual Channel View |
| SATA 8 HDD Bays (up to 80TB) | Up to 520Mbps recording / transmission bandwidth |
| Easy Channel/Event/Alarm configuration | Manual event support |
Additional Hanwha Vision Products
SKU  | XRN-3220B2 |
|---|---|
| Manufacturer | Hanwha Vision |
| IP Channels | 32 Channels |
| Harddrive Size | No HDD |
| Protocols | Samsung protocols, ONVIF Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Distributed mode : Up to 520 Mbps, Normal mode : Up to 300 Mbps |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 438 x 86 x 434.9 mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz, 1.5A |
| Power Consumption | Max. 143W (488BTU with HDD 8ea) |
| SATA | SATA 8ea(Max. 80TB) |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | Out 1EA (3.5mm Audio Jack) |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
XRN-3220B2-Specsheet XRN-Quick-Guide XRN-Manual
