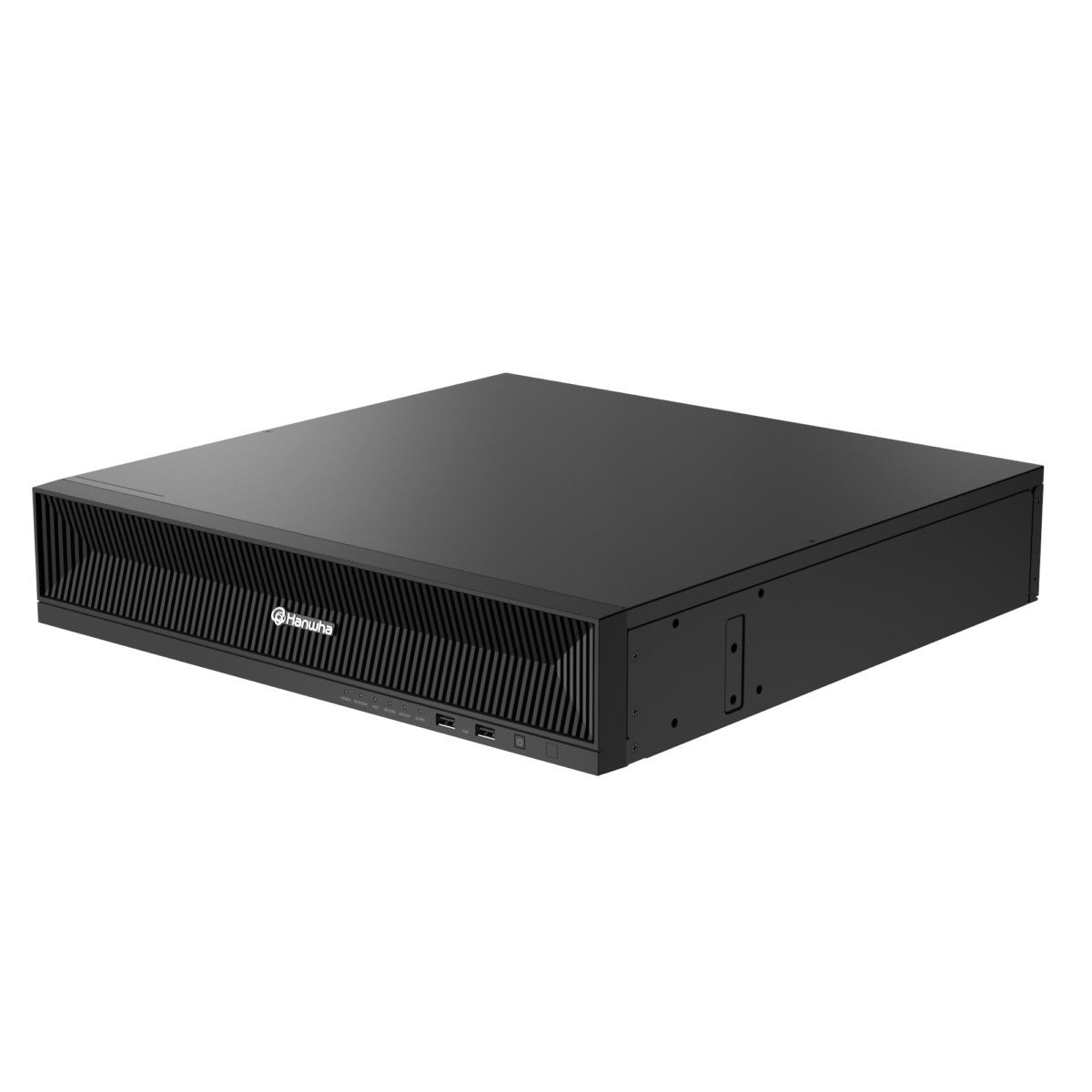

Hanwha Vision XRN-3220B2-40TB 32 Channel NVR with 12th Genration Intel® Processor with 40TB
SKU
XRN-3220B2-40TB
Model No
XRN-3220B2-40TB
$8,227.00
Product Highlights
- 32CH, 32MP resolution
- SATA 8 HDD Bays (up to 80TB)
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virtual Channel View
Speak to an expert
32 Channel NVR with 12th Genration Intel® Processor with 40TB
- The Hanwha Vision XRN-3220B2-40TB is a cutting-edge 32 Channel NVR that leverages a powerful 12th generation Intel processor for superior performance and enhanced cybersecurity, meeting NDAA compliance standards. With 40TB of storage and unique features like a camera setting palette, dynamic layouts, and manual event settings, this NVR is designed for easy installation and convenient operation, making it an ideal choice for comprehensive video surveillance solutions.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| 32CH, 32MP resolution | Virtual Channel View |
| SATA 8 HDD Bays (up to 80TB) | Up to 520Mbps recording / transmission bandwidth |
| Easy Channel/Event/Alarm configuration | Manual event support |
Additional Hanwha Vision Products
SKU  | XRN-3220B2-40TB |
|---|---|
| Manufacturer | Hanwha Vision |
| IP Channels | 32 Channels |
| Harddrive Size | 40TB |
| Protocols | Samsung protocols, ONVIF Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Distributed mode : Up to 520 Mbps, Normal mode : Up to 300 Mbps |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 438 x 86 x 434.9 mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz, 1.5A |
| Power Consumption | Max. 143W (488BTU with HDD 8ea) |
| SATA | SATA 8ea(Max. 80TB) |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | Out 1EA (3.5mm Audio Jack) |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
XRN-3220B2-Specsheet XRN-Quick-Guide XRN-Manual
