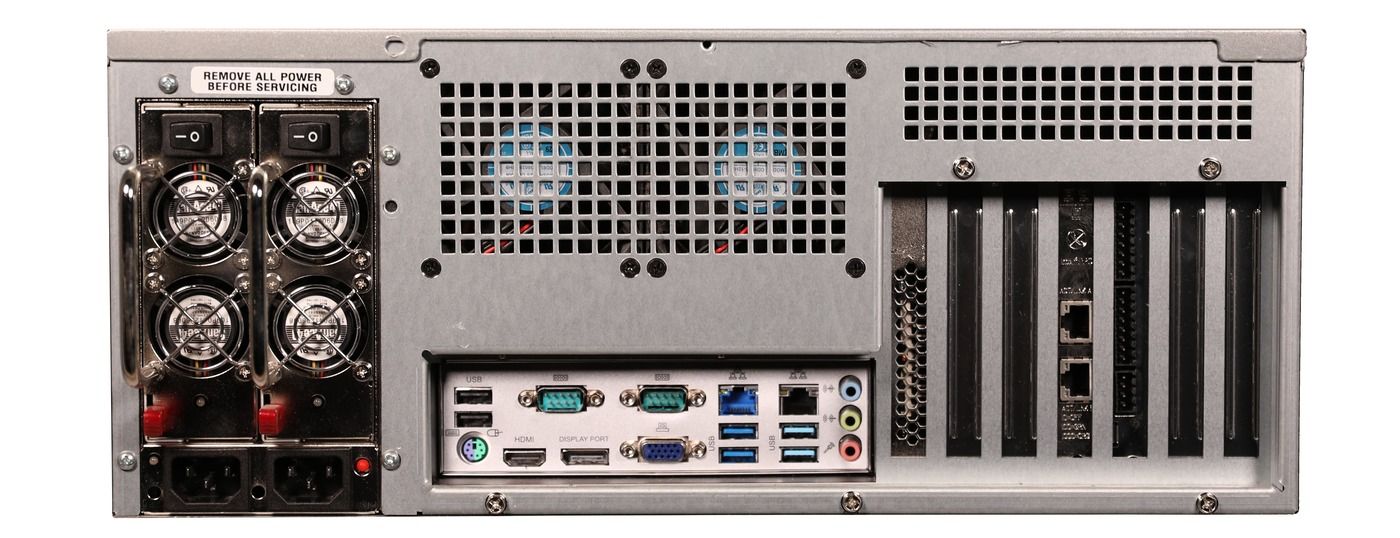

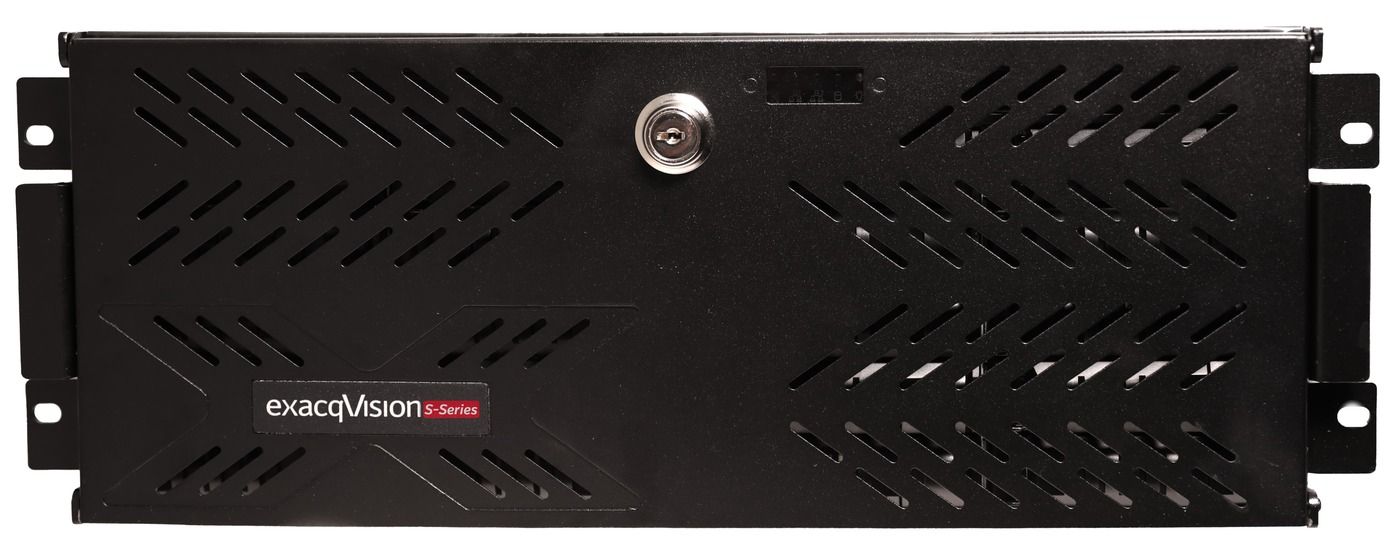

Exacq S-204T-4U Rackmount 4U Storage Server, 204TB HDD
SKU
S-204T-4U
Model No
S-204T-4U
$35,999.33
Product Highlights
- Cost-effectively increase video storage without having to add recorders
- Monitor from exacqVision client interface, Enterprise System Manager, or exacqCloud
- Reduces the complexity of integrating and learning thirdparty storage solutions
- Archive video and audio with instant search capability
- Expands the storage up to 96 TB on 2U models and 240 TB on 4U RAID models
Speak to an expert
Introducing the Exacq S-204T-4U Rackmount 4U Storage Server, a robust solution designed for efficient video storage and management. With 204TB of HDD capacity and exceptional archiving rates, this storage server allows seamless integration with exacqVision recorders while offering enhanced protection against data loss and cyber threats.
Exacq S-204T-4U Storage Server Features
- High Capacity: Configured with 204TB HDD, enabling substantial video storage without additional recorders.
- Fast Archiving Rate: Achieves 1,500Mbps (2,000Mbps with optional quad NIC) for efficient data transfer.
- Expandable Storage: Supports up to 240TB on RAID 6 models, catering to growing surveillance needs.
- User-Friendly Setup: Comes pre-installed with exacqVision storage software, minimizing complexity during installation.
- Scalable Solution: Easily accommodates demanding surveillance environments with RAID 5/6 for enhanced reliability.
- Cybersecurity Compliance: NDAA-compliant design provides rigorous security against cyber threats.
- Comprehensive Monitoring: Allows system health checks and management via exacqVision client interface.
Exacq S-204T-4U Detailed Specifications
| Model | Exacq S-204T-4U |
| Storage Capacity | 204TB HDD |
| Archiving Rate | 1,500Mbps (up to 2,000Mbps with quad NIC) |
| Extended Storage Rate | 350Mbps |
| Drive Bays | 8 bays (max 96TB on 2U models) |
| RAID Support | RAID 5/6 |
| Network Interface | Triple Gb NIC |
| Operating System | Ubuntu Linux 20.04 |
| Software | exacqVision storage software pre-installed |
| Warranty | 3-year hardware warranty with software updates |
SKU  | S-204T-4U |
|---|---|
| Manufacturer | Exacq |
| NDAA | Compliant |
| Harddrive Size | 204TB |
| Protocols | EXACQ Protocols |
| Features | Audio, Redundant Power, Supports the Full HD Output (HDMI) |
| Operating temperature | 40° - 95° F (4.5° - 35° C) |
| Dimensions | 7.0” x 16.875” x 27” (17.8 x 42.9 x 68.7 cm) |
| Voltage | 120/240 VAC auto-sensing |
USB  | 2 x USB 3.2, 4 x USB 3.1, 2 x USB 2.0 |
| Audio | Yes |
| Redundant Power | Yes |
| Supports the Full HD Output (HDMI) | Yes |
