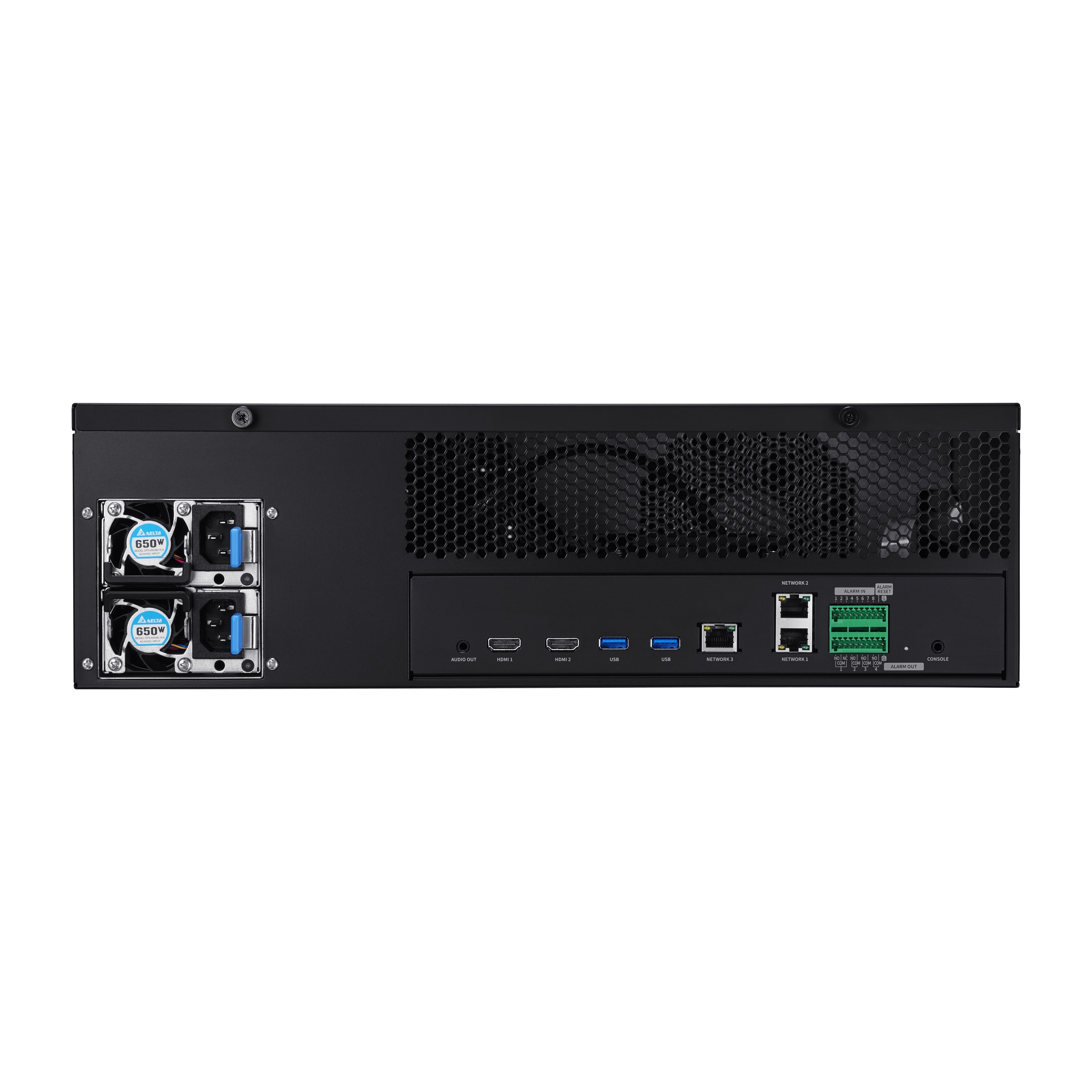

Hanwha Vision PRN-3200B4-140TB 32 Channels 8K Intel Based NVR with 140TB
SKU
PRN-3200B4-140TB
Model No
PRN-3200B4-140TB
$21,737.28
Product Highlights
- Up to 8K (32MP) Resolution
- AI search (BestShot, Attribute)
- Object detection and classification
- SATA 16ea (Up to 160TB)
- Easy Channel/Event/Alarm configuration
Speak to an expert
32 Channels 8K Intel Based NVR with 140TB
- The Hanwha Vision PRN-3200B4-140TB is a state-of-the-art 8K Intel-based NVR designed to provide exceptional performance and flexibility for surveillance applications. With a massive 140TB of storage and support for up to 32 channels, this NVR ensures high-resolution recording and playback while leveraging advanced features like AI search and dual-stream recording to enhance security management.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| Up to 8K (32MP) Resolution | Easy Channel/Event/Alarm configuration |
| AI search (BestShot, Attribute) | SATA 16ea (Up to 160TB) |
| Object detection and classification |
Additional Hanwha Vision Products
SKU  | PRN-3200B4-140TB |
|---|---|
| Manufacturer | Hanwha Vision |
| IP Channels | 32 Channels |
| Harddrive Size | 140TB |
| Protocols | ONVIF protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Max. 400Mbps |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 440.0 x 132.0 x 571.1mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | Max. 285W (972.5 BTU with HDD 16ea) |
| SATA | 16ea |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | 2-Way |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Watermark Capability | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
