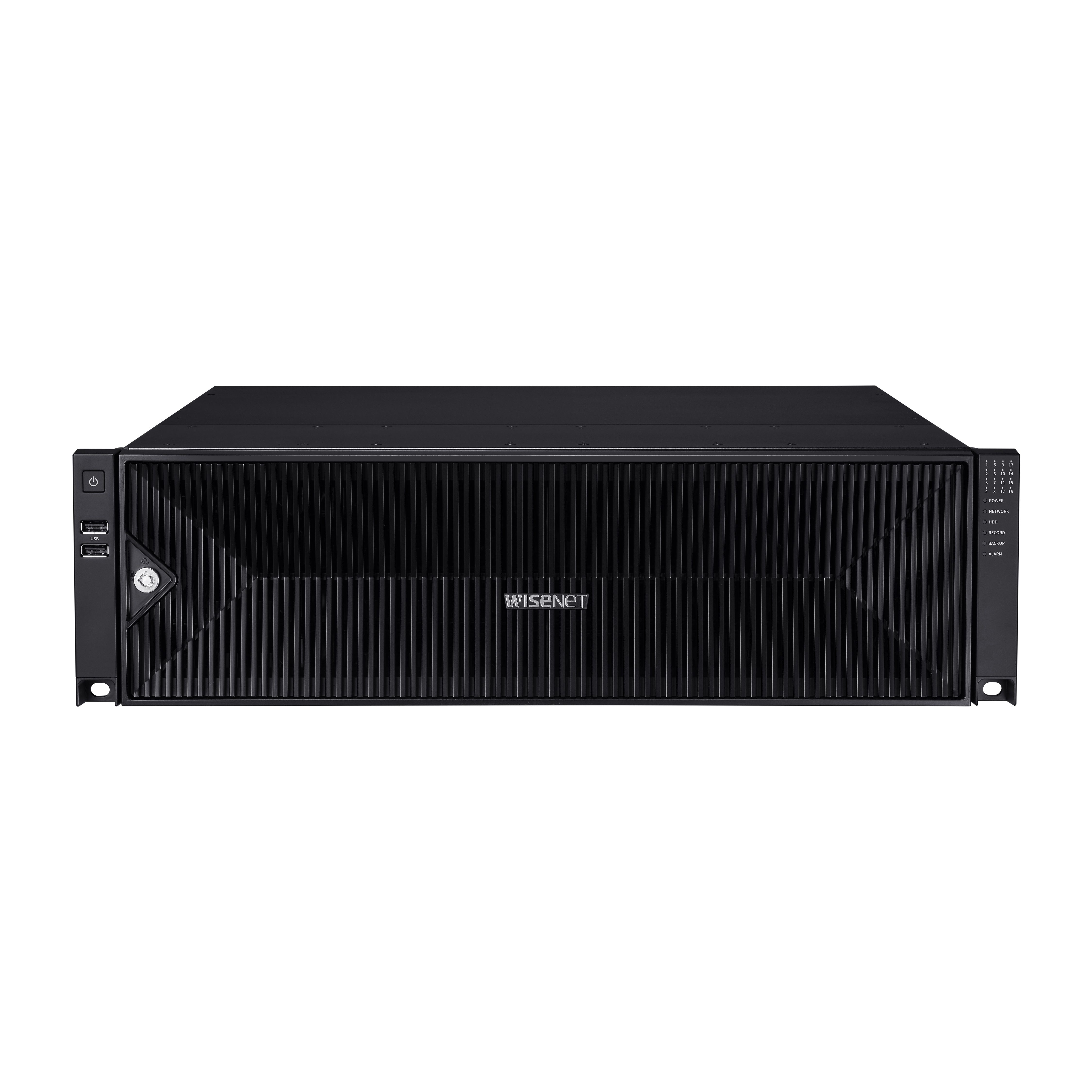

Hanwha Vision PRN-3200B4-104TB 32 Channels 8K Intel Based NVR with 104TB
SKU
PRN-3200B4-104TB
Model No
PRN-3200B4-104TB
$17,519.52
Product Highlights
- Up to 8K (32MP) Resolution
- AI search (BestShot, Attribute)
- Object detection and classification
- SATA 16ea (Up to 160TB)
- Easy Channel/Event/Alarm configuration
Speak to an expert
32 Channels 8K Intel Based NVR with 104TB
- The Hanwha Vision PRN-3200B4-104TB is a cutting-edge 32-channel NVR designed for optimal performance in surveillance systems. With its robust 104TB storage capacity and support for up to 8K resolution, this Intel-based unit ensures high-quality video recording and playback. Its advanced features, including AI capabilities and dual stream recording, make it an ideal choice for both commercial and residential security needs.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| Up to 8K (32MP) Resolution | Easy Channel/Event/Alarm configuration |
| AI search (BestShot, Attribute) | SATA 16ea (Up to 160TB) |
| Object detection and classification |
Additional Hanwha Vision Products
SKU  | PRN-3200B4-104TB |
|---|---|
| Manufacturer | Hanwha Vision |
| IP Channels | 32 Channels |
| Harddrive Size | 104TB |
| Protocols | ONVIF protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP ~ CIF |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Max. 400Mbps |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 440.0 x 132.0 x 571.1mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz |
| Power Consumption | Max. 285W (972.5 BTU with HDD 16ea) |
| SATA | 16ea |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Audio | 2-Way |
| Compression Supported | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Watermark Capability | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
