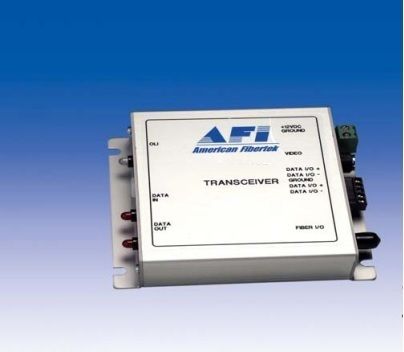

American Fibertek MT-0500SL 20mA Digital Current Loop Data Module, ST Connectors, Single Mode

The MT-0500SL from American Fibertek is a low cost, low profile 20mA current loop data transceiver system. Data transmit and receive is accommodated on single mode optical fiber. These products are compatible with the AMAG M2100 DBU and M2150 8DBC access control equipment. The 0500SLs are factory set to be passive inputs and active outputs. However, the units have internal jumpers to allow independent field setting of the inputs and outputs to either active or passive, if required. Transceivers are packaged in compact extrusions.

American Fibertek MT-0500SL Key Features

• 20mA Current Loop Data Transceiver: Enables reliable data transmission over a single mode optical fiber, ensuring efficient operation in access control systems.
• Diagnostic LEDs: Power indicator, Tx Data Activity, and Rx Data Activity lights provide real-time status updates for easier troubleshooting.
• Modular Transceiver Design: Facilitates easy integration and flexibility, allowing users to adapt to system changes without extensive overhaul.
• Multimode Optics: Optimized for a range of data transmission scenarios, enhancing performance across various environments.
• Active Output, Passive Input Ports: Ports can be independently configured as active or passive in the field, allowing customization to meet specific application needs.

American Fibertek MT-0500SL Detailed Specifications
